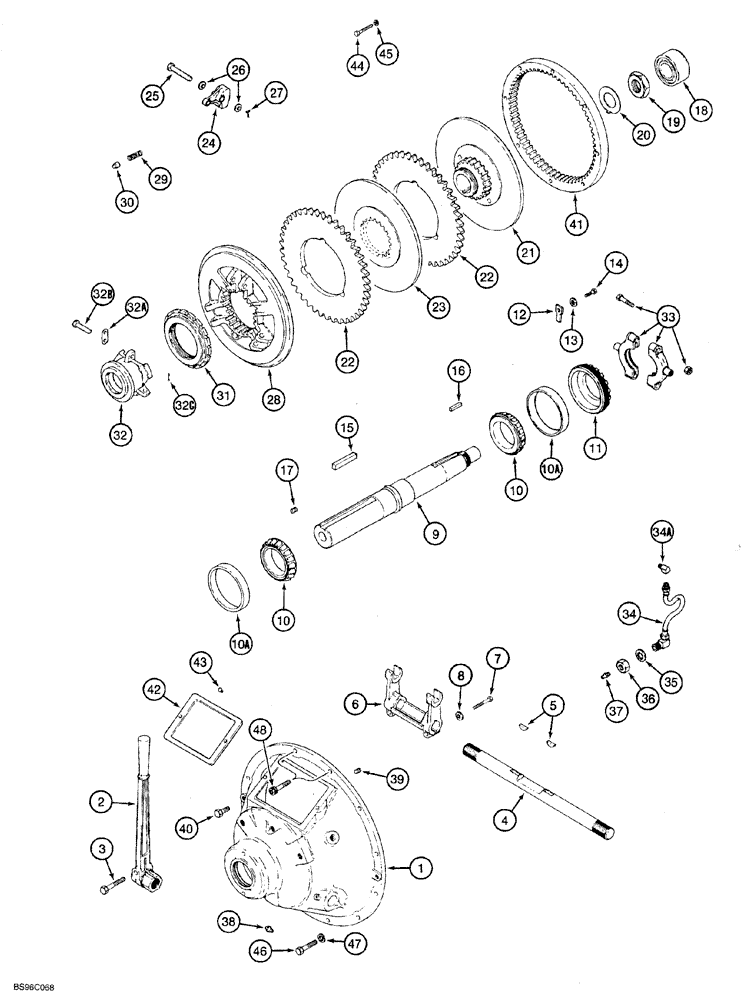

Запчасти Case IH 6831TA (02-014) - PTO CLUTCH

1998868C1

CLUTCH ASSEMBLY

PTO, 11-1/2"

1шт.

1

103414A1

HOUSING

PTO clutch

1шт.

2

1347799C1

LEVER

hand, clutch

1шт.

3

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

1шт.

4

A44136

SHAFT

operating lever

1шт.

5

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

6

A44141

YOKE

UNIVERSAL JOINT YOKE throwout

1шт.

7

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

8

193-78

LOCK WASHER,3/8"

heavy duty, internal tooth, 3/8"

2шт.

9

A44144

SHAFT

PTO clutch

1шт.

10

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

tapered roller

2шт.

10a

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

CUP tapered roller

2шт.

11

A44137

RETAINER

bearing

1шт.

12

1347816C1

BEARING LOCK NUT

bearing retainer

1шт.

13

193-83

LOCK WASHER,Int Tooth, 5/16"

heavy duty, internal tooth lock, 5/16"

1шт.

14

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

15

A40256

KEY

square, 5/8 x 5/8 x 5-3/8"

1шт.

16

A44140

KEY

square, 1/2 x 1/2 x 3-3/4"

1шт.

17

221-841

PLUG

hex socket, 1/4" PT

2шт.

18

1347800C1

BEARING, BALL,30mm ID x 72mm OD x 30.16mm W

1шт.

19

A44138

NUT

hex, special, clutch hub

1шт.

20

A44139

LOCK WASHER

WASHER tab lock, nut

1шт.

21

A44145

PLATE

clutch hub and back

1шт.

22

1347802C1

PLATE

driving

2шт.

23

A44143

PLATE

clutch center

1шт.

24

A10444

LEVER

floating plate

3шт.

25

A40254

PIN

pivot, lever

3шт.

26

A10454

WAVE WASHER

spring, pivot pin

6шт.

27

A43383

SPLIT PIN

cotter, special

3шт.

28

A44723

PLATE

floating

1шт.

29

1347804C1

SPRING

adjustable lock pin

1шт.

30

1347803C1

PIN

lock, adjusting ring

1шт.

31

A10448

RING

PTO adjusting

1шт.

A44135

SLEEVE

ASSEMBLY clutch sliding, no longer available, order component parts separately

1шт.

32

103573A1

SLEEVE

sliding

1шт.

32a

A10446

LINK

sliding sleeve lever

6шт.

32b

A40192

AXLE PIN,8mm OD x 26.16mm L

PTO lever link

6шт.

32c

A43382

PIN, SPLIT (COTTER)

PIN, COTTER 1/8 x 1/2" long

6шт.

33

A44133

COLLAR ASSY.

sleeve

1шт.

1998868C1

CLUTCH ASSEMBLY

PTO, 11-1/2"

1шт.

34

38127D

HOSE ASSY.

lubrication

1шт.

34a

222-1022

ELBOW,90 Degree, 7/16"-24 Inv Fl x 1/8" NPT

ELBOW, 7/16-24 inverted flare x 1/8" PT, 90°

1шт.

35

193-84

LOCK WASHER,5/8"

heavy duty, internal tooth lock, 5/8"

1шт.

36

425-1110

NUT,5/8"-18, G5

1шт.

37

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

38

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

39

178-639

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

set, hex socket headless, 5/16 NC x 5/16", oval point

1шт.

40

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

BOLT hex, 1/2 NC x 1/2"

2шт.

41

A44146

RING

drive

1шт.

42

NSS

NOT SOLD SEPARAT

PLATE name and inspection

1шт.

43

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

external tooth lock, 1/4 NC x 1/2"

2шт.

44

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

45

492-11038

LOCK WASHER,3/8"

8шт.

46

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

10шт.

47

892-11010

LOCK WASHER,M10

12шт.

48

864-10040

HEX SOC SCREW,M10 x 40mm, Cl 8.8

2шт.
