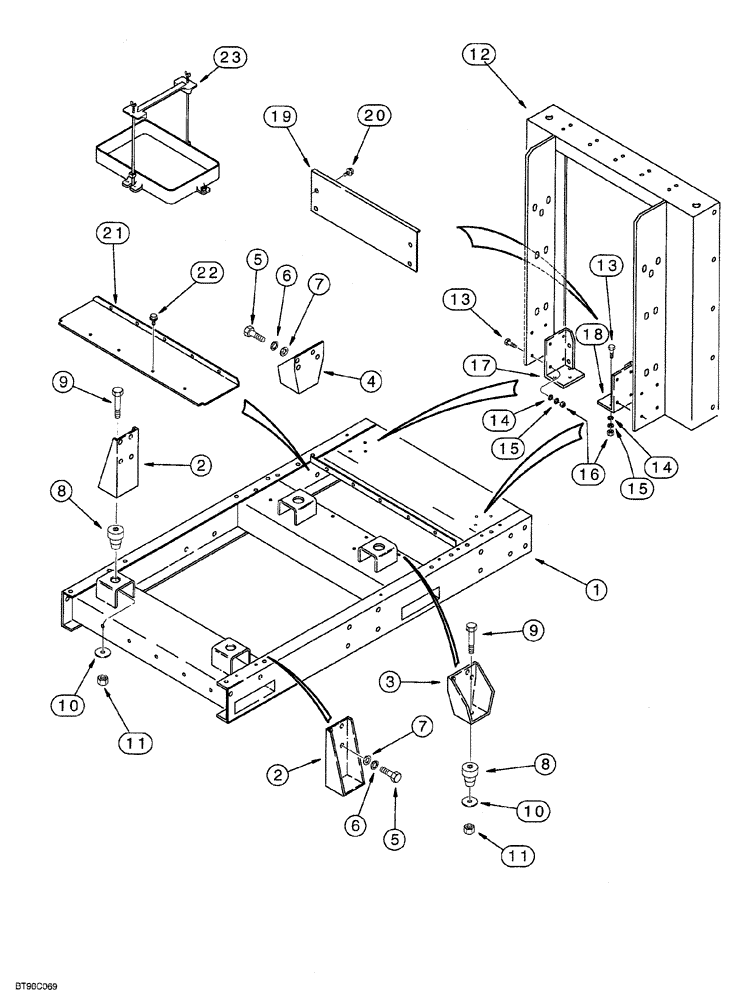

Запчасти Case IH 6831TA (09-002) - FRAME AND ENGINE MOUNTS

1

237449A1

FRAME ASSY

Irrigation Power Unit

1шт.

2

1347652C1

BRACKET

mounting, engine rear

2шт.

3

102171A1

BRACKET

mounting, engine front, right-hand

1шт.

4

102170A1

BRACKET

mounting, engine front, left-hand

1шт.

5

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

12шт.

6

892-11012

LOCK WASHER,M12

12шт.

7

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

12шт.

8

A141451

SHOCK ABSORBER

MOUNT rubber, engine

4шт.

9

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

4шт.

10

L78455

WASHER

flat, special

4шт.

11

232-41110

NUT,5/8"-11, GC

4шт.

12

239314A1

SUPPORT

radiator

1шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

14шт.

14

492-11038

LOCK WASHER,3/8"

14шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

14шт.

16

425-106

NUT,3/8"-16, Cl 5

14шт.

17

239377A1

BRACKET

radiator support, left-hand

1шт.

18

239380A1

BRACKET

radiator support, right-hand

1шт.

19

239416A1

BAFFLE

air shield lower

1шт.

20

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

BOLT hex serrated flange, 1/4 NC x 3/4"

4шт.

21

237447A1

SHIELD

air, lower

1шт.

22

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

BOLT hex serrated flange, 1/4 NC x 3/4"

9шт.

23

237869A1

BATTERY TRAY

battery

1шт.
