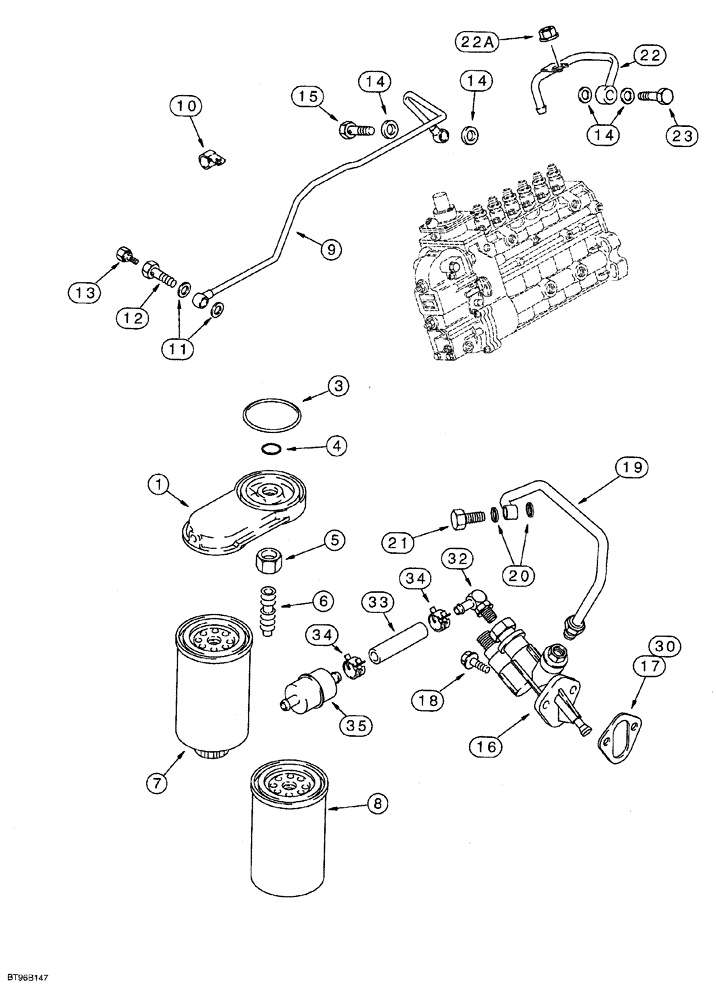

Запчасти Case IH 6831TA (03-010) - FUEL FILTER AND TRANSFER PUMP, 6T-830 EMISSIONS CERTIFIED ENGINE, 6TA-830 EMISSIONS CERTIFIED ENGINE

1

J897331

SUPPORT

HEAD fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID, filter head

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID, adapter

1шт.

5

J903293

JAM NUT

hex, special, 16 mm-2.0

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

fuel filter

1шт.

7

J925274

FILTER, FUEL

primary

1шт.

8

J903640

FILTER, FUEL

secondary

1шт.

9

J918873

FUEL TUBE,8 mm OD x 531.9, 92.9 mm L

supply, fuel

1шт.

10

J914711

CLIP

CLAMP P-type

1шт.

11

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

2шт.

12

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

13

J905860

BANJO BOLT

BOLT ASSEMBLY banjo hex, special

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER sealing, special, 14 x 20 x 1 mm

2шт.

15

J924725

BANJO BOLT,M14 x 1.5 x 26mm

connector

1шт.

16

J925709

PUMP

fuel transfer, see Kit J926764

1шт.

17

J923054

GASKET

mounting, fuel transfer pump

1шт.

18

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

19

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

supply

1шт.

20

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

2шт.

21

J916361

BANJO BOLT

banjo connector, 12-1.5 x 24 mm

1шт.

22

J928028

FUEL TUBE,8 mm OD x 228.7 mm L

fuel drain

1шт.

22a

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

23

J912886

VALVE

overflow, see Figure 03-012 or 03-014 Ref. 6

1шт.

24

J926764

GASKET KIT

transfer pump repair, not shown

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE check, not shown

2шт.

26

NSS

NOT SOLD SEPARAT

GASKET check valve, not shown

2шт.

27

NSS

NOT SOLD SEPARAT

O-RING seal, not shown

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING seal, not shown

2шт.

29

NSS

NOT SOLD SEPARAT

O-RING seal, not shown

1шт.

30

J923054

GASKET

mounting, fuel transfer pump

2шт.

31

NSS

NOT SOLD SEPARAT

VALVE check, not shown

2шт.

32

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

ELBOW 1/2" stem end x PT, 90°

1шт.

Not included in Engine Assembly

1шт.

33

196247A1

FUEL HOSE,12.70 mm ID x 78.0 mm, SAE 30R7

1шт.

Not included in Engine Assembly

1шт.

34

196252A1

CLAMP

adjustable

2шт.

Not included in Engine Assembly

1шт.

35

194199A1

FUEL FILTER

fuel, in-line

1шт.

Not included in Engine Assembly

1шт.
