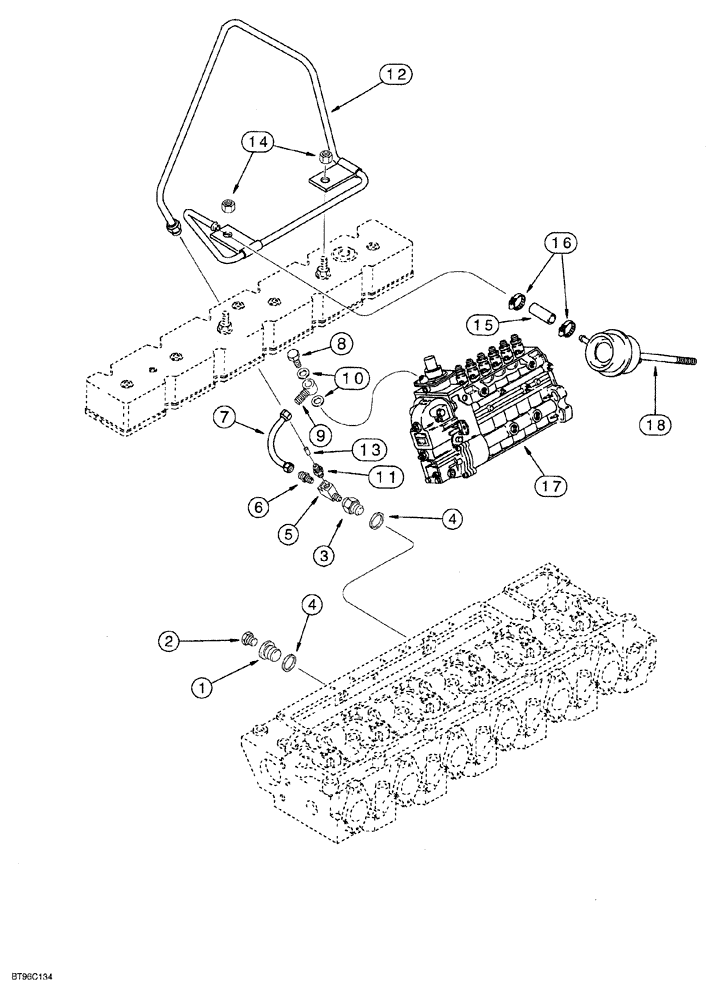

Запчасти Case IH 6831TA (03-008) - ANEROID AND WASTEGATE SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE

1

J908110

PLUG

threaded

1шт.

2

J906619

PLUG,1/8" - 27

hex, 1/8" PT, install in P/N J908110

1шт.

3

J921594

PLUG

threaded orifice, cylinder, Serial Range: head-tee

1шт.

4

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

2шт.

5

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

street, 1/8" female PT branch x female PT x PT

1шт.

6

222-21

FITTING,7/16"-24 x 1/8" NPTF

Tee to aneroid tube

1шт.

7

J926739

TUBE

aneroid, nylon, flexible

1шт.

8

J903035

BANJO BOLT

hex, 12-1.5 x 24 mm

1шт.

9

J919644

FITTING

CONNECTOR banjo

1шт.

10

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

2шт.

11

A77796

CONNECTOR, ELEC

CONNECTOR ADAPTER straight, 1/4 barb end x 1/8" PT, tee to wastegate tube

1шт.

12

J929846

TUBE,6.35 mm OD x 865.7 mm L

wastegate

1шт.

13

222-102

SLEEVE,1/4" Tube

1шт.

14

J900589

NUT

hex flange, special, 8 mm, wastegate tube to valve cover No. 3 and 5

2шт.

15

J920871

HOSE,1294.00 mm

2"/51 mm long, wastegate tube to actuator

1шт.

16

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adjusting, 1/4-5/8" diameter

2шт.

17

J926882

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY, with aneroid, see Figure 03-014

1шт.

18

J531892

ACTUATOR

turbo wastegate, see Figure 02-036

1шт.

J531892C

CORE-HYD CYLINDER

Return Number, ACTUATOR - for N.A. Only

1шт.
