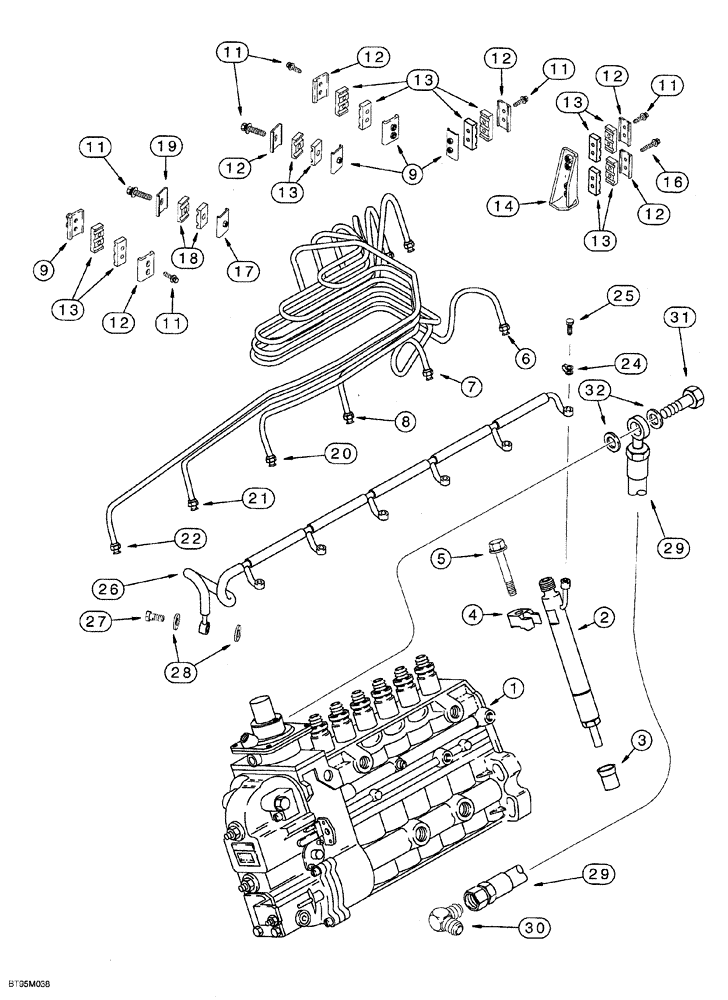

Запчасти Case IH 6831TA (03-004) - FUEL INJECTION SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE

1

J926882

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY, with aneroid, see Figure 03-014

1шт.

1

JR908511

REMAN-FUEL INJECTOR

Remanufactured Injetion Nozzle

1шт.

1

JC908511

CORE-FUEL INJECTOR

Return Part Number, Injection

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY fuel, see Figure 03-016

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE injector

6шт.

4

J910279

CLAMP

fuel injector

6шт.

5

J922018

FLANGE BOLT

BOLT heavy hex flange, 8-1.25 x 80 mm, class 12.9

6шт.

6

J930355

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE fuel, No. 1 cylinder

1шт.

7

J930356

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE fuel, No. 2 cylinder

1шт.

8

J930357

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE fuel, No. 3 cylinder

1шт.

9

J917716

BRACE

BRACKET fuel tube, supply

3шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

10шт.

12

J904519

SUPPORT

tube retaining

5шт.

13

J917747

CLAMP

fuel tube

10шт.

14

J917776

BRACE

BRACKET fuel tube

1шт.

16

J920855

CAPTIVE WASHER SCREW

hex, captive washer, special, 5-0.8 x 35 mm

2шт.

17

J917717

BRACE

BRACKET fuel tube

2шт.

18

J917746

CLAMP

fuel tube

4шт.

19

CURJ904711

CLAMP

BRACKET fuel tube

2шт.

20

J930358

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE fuel, No. 4 cylinder

1шт.

21

J930359

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE fuel, No. 5 cylinder

1шт.

22

J930360

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE fuel, No. 6 cylinder

1шт.

24

J903380

SEAL

connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

26

J920595

TUBE ASSY.

fuel drain

1шт.

27

J924726

BANJO BOLT

check

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing, banjo fitting

2шт.

29

J916779

FUEL HOSE,508.00 mm

Cylinder Block To Injection Pump

1шт.

30

222-1704

ELBOW,45 Degree, 7/16"-24, 45 Degree Fl x 1/4 NPT

7/16-20 flare x 1/8" PT, 45°

1шт.

31

J918002

BANJO BOLT

banjo, hose to injection pump

1шт.

32

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

WASHER sealing, special, 10 x 15.5 x 1 mm

2шт.
