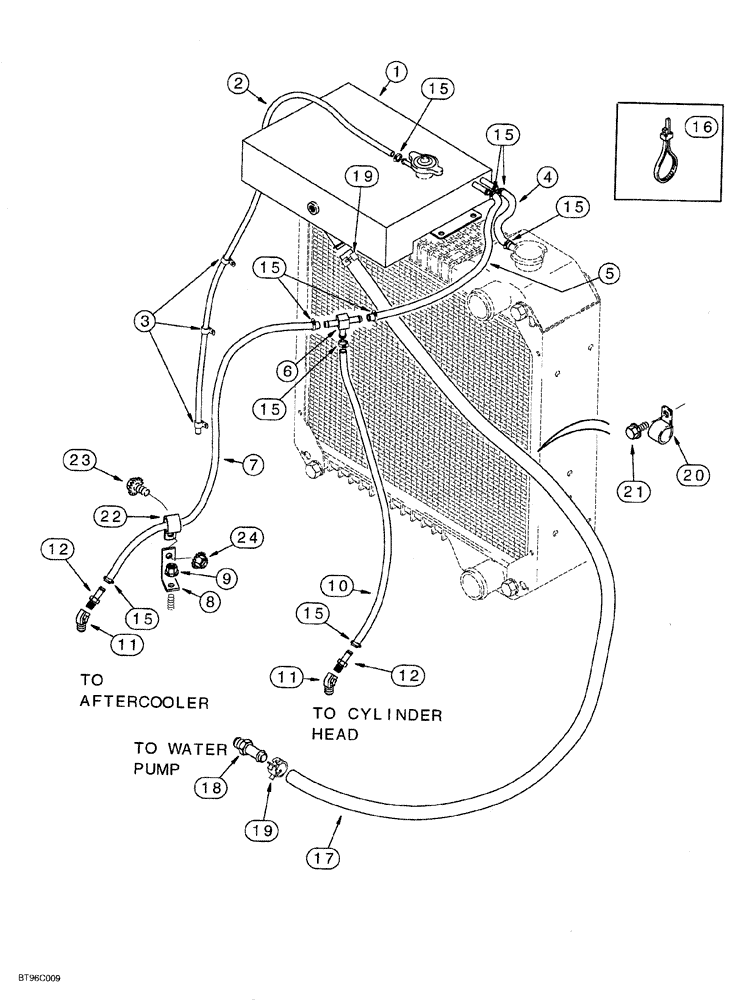

Запчасти Case IH 6831TA (02-004) - COOLANT RECOVERY SYSTEM, MODEL 6831TA WITH AFTERCOOLER

1

231383A1

TANK

deaeration, see Figure 02-002 for mounting

1шт.

2

239383A1

HOSE,0.31" ID x 54.50"

Overflow

1шт.

Cut from P/N L126767 bulk hose

1шт.

3

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Overflow hose to radiator support

3шт.

4

240460A1

HOSE,7.75"

radiator overflow to deaeration tank

1шт.

Cut from P/N L126767 bulk hose

1шт.

5

240463A1

HOSE,0.31" ID x 19.75"

deaeration tank to tee

1шт.

Cut from P/N L126767 bulk hose

1шт.

6

240466A1

TEE

stem end, 5/16"

1шт.

7

240461A1

HOSE,0.31" ID x 16.50"

tee to aftercooler

1шт.

Cut from P/N L126767 bulk hose

1шт.

8

242593A1

BRACKET

support

1шт.

9

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

For 240470A1 clamp, Front valve cover stud

1шт.

10

240462A1

HOSE,0.31" ID x 10.00"

tee to cylinder head

1шт.

Cut from P/N L126767 bulk hose

1шт.

11

217-15

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

ELBOW street, 1/8" PT x female PT, 45°

2шт.

12

240434A1

ORIFICE

straight, 0.094" hole, 1/8 PT x 5/16" stem end

2шт.

15

J923527

CLAMP

band

9шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

3шт.

17

239470A1

HOSE,0.75" ID x 47.00"

deaeration tank to water pump

1шт.

18

217-160

FITTING,3/4" Hose Barb x 1/2" Male NPTF

ADAPTER straight, 3/4" stem end x 1/2" PT

1шт.

19

J918163

CLIP

CLAMP spring type

2шт.

20

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type

1шт.

21

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

22

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

P-type

1шт.

23

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

BOLT hex serrated flange, 1/4 NC x 3/4"

1шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.

Used for Ref. 2, 4, 5, 7 and 10

1шт.
