(02-050) - CAMSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, 6TA-830 EMISSIONS CERTIFIED ENGINE

Запчасти Case IH 6831TA (02-050) - CAMSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, 6TA-830 EMISSIONS CERTIFIED ENGINE

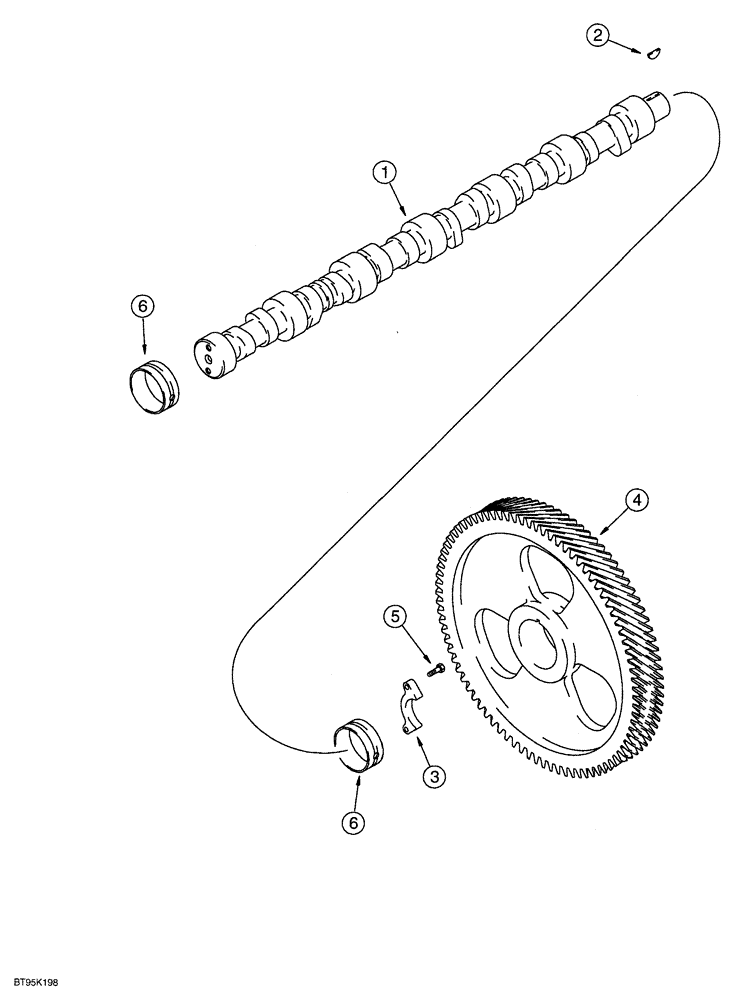

Схема запчастей Case IH 6831TA - (02-050) - CAMSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, 6TA-830 EMISSIONS CERTIFIED ENGINE
3
6
6
4
5
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J924471

CAMSHAFT

engine

1шт.

1

J923478R

REMAN-CAMSHAFT

Reman for new P/N J924471

1шт.

1

J923478C

CORE-CAMSHAFT

Return Number

1шт.

2

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

3

J927155

SUPPORT

thrust, camshaft

1шт.

4

J917328

GEAR

camshaft

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

J901685

BUSHING

camshaft

7шт.
