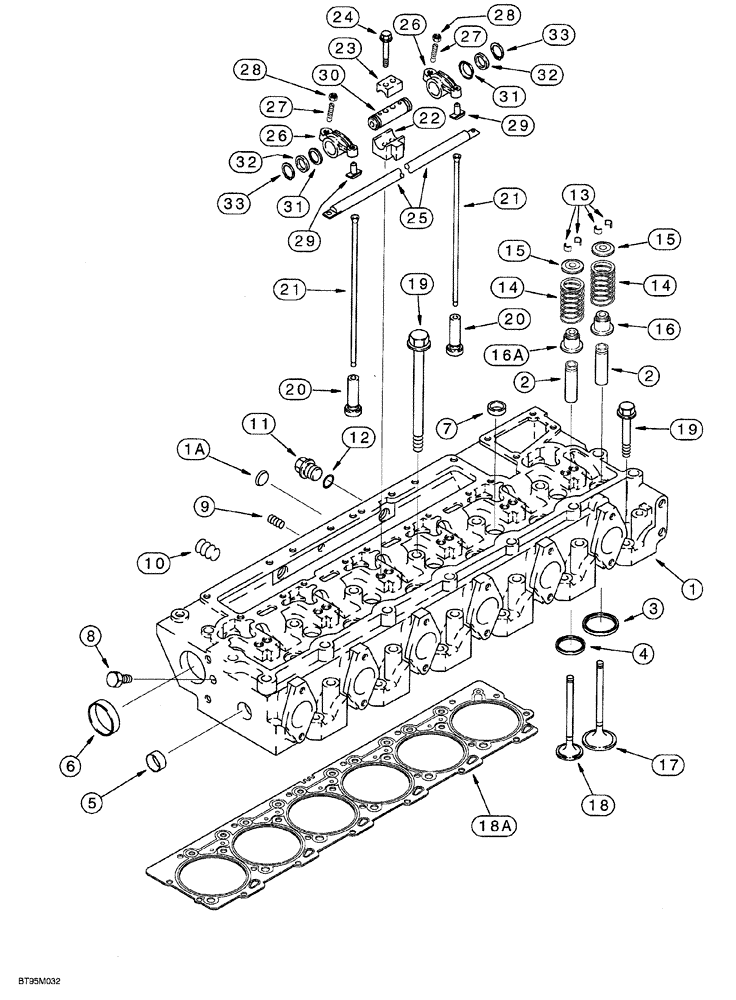

Запчасти Case IH 6831TA (02-044) - CYLINDER HEAD AND VALVE MECHANISM, 6T-830 EMISSIONS CERTIFIED ENGINE, 6TA-830 EMISSIONS CERT ENGINE

JR925642

HEAD

ASSEMBLY, remanufactured, North America only

1шт.

Component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC916464

HEAD

NUMBER return

1шт.

Use this part number to return Head with Valves for credit when using a remanufactured Assembly

1шт.

J925642

HEAD (CYLINDER)

ASSEMBLY new, with valves

1шт.

84262945R

REMAN-CYLINDER HEAD

6831TA,6831T BOTH, Reman For New P/N J925642

1шт.

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

1

J920031

HEAD (CYLINDER)

ASSEMBLY new, without valves

1шт.

84262945R

REMAN-CYLINDER HEAD

6831TA,6831T BOTH, Reman For New P/N J920031

1шт.

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

1a

J912900

PLUG

expansion, 24 mm

1шт.

2

J923564

VALVE GUIDE

valve stem

12шт.

3

J924582

INSERT

INSERT intake

6шт.

3

J925468

SEAT, VALVE

INSERT intake, 0.254 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately

1шт.

3

J925470

SEAT, VALVE

INSERT intake, 0.508 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately

1шт.

4

J929005

INSERT

seat, exhaust valve

6шт.

4

J929006

INSERT

seat, exhaust valve, 0.254 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately

1шт.

4

J929007

INSERT

seat, exhaust valve, 0.508 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately

1шт.

5

J920443

PLUG

expansion, 30 mm OD

1шт.

6

A77782

PLUG

expansion, 58 mm OD

2шт.

7

41-1616

PLUG,Cup, 1", Stainless

5шт.

8

A77534

PLUG

hex, 1/16" PT

1шт.

9

A77428

PLUG

hex socket, 1/4" PT

1шт.

10

A77429

PLUG

hex socket, 1/2" PT

2шт.

11

J924148

PLUG,M22 x 1.5

hex magnetic, special

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

2шт.

13

J901177

VALVE

KEEPER valve

24шт.

14

J906412

VALVE SPRING

12шт.

15

J912976

RETAINER

valve spring

12шт.

16

J915707

SEAL

intake and exhaust valve stem and guide

6шт.

16a

J919038

SEAL

exhaust valve stem and guide

6шт.

17

J924492

STD INLET VALVE

STD ENGINE INLET VALVE intake

6шт.

18

J921444

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

6шт.

18a

J928168

GASKET

cylinder head, standard, see Ref. 8 on Figure 02-042

1шт.

19

J917728

BOLT

BOLT cylinder head, 160 mm long

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

BOLT cylinder head, 80 mm long

12шт.

20

J931623

TAPPET

valve, push rod

12шт.

21

J905194

PUSH ROD

rocker arm

12шт.

22

J905870

SUPPORT

shaft, rocker arm

6шт.

23

J901693

CLAMP

retaining, shaft

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

12шт.

25

J919677

TUBE

oil

1шт.

26

J901717

ROCKER

ARM ASSEMBLY

12шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT rocker

1шт.

30

J919435

SHAFT

rocker

6шт.

31

J906100

SPRING CUP

WASHER spring

12шт.

32

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

flat, special

12шт.

33

100-1187

SNAP RING,#87, Ext

12шт.
