Запчасти Case IH 6831TA (02-038) - OIL FILTER AND COOLER, 6T-830 EMISSIONS CERTIFIED ENGINE, 6TA-830 EMISSIONS CERTIFIED ENGINE

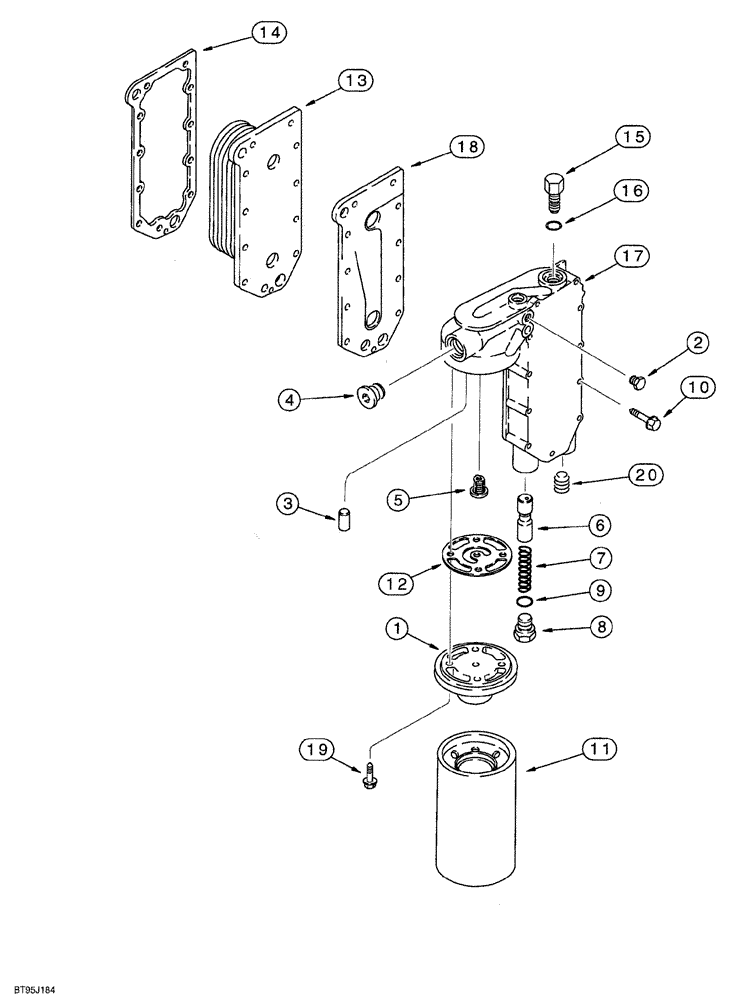

Схема запчастей Case IH 6831TA - (02-038) - OIL FILTER AND COOLER, 6T-830 EMISSIONS CERTIFIED ENGINE, 6TA-830 EMISSIONS CERTIFIED ENGINE
20
12
4
16
9
14
6
3
11
5
10
7
2
1
13
18
17
19
8
15

Артикул

Название

Примечание

Количество

1

J918334

FILTER HEAD

Oil

1шт.

2

J906619

PLUG,1/8" - 27

hex, 1/8" PT

2шт.

3

A77722

PIN,7.95mm OD x 12.83mm L

dowel, locating

1шт.

4

A77505

PLUG

hex socket, 3/4" PT, filter head

1шт.

5

J927622

VALVE, PRESSURE RELI

EF

1шт.

6

J918532

PLUNGER

regulator

1шт.

7

A77541

SPRING

compression

1шт.

8

J919016

PLUG

hex, special, 24 mm-1.50, regulator

1шт.

9

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

10

845-8065

BOLT,Hvy Hex, M8 x 65mm, Cl 8.8

Heavy, Oil filter head to cylinder block

11шт.

11

J919562

ENGINE OIL FILTER

oil, cartridge, engine

1шт.

12

J921605

GASKET

filter head

1шт.

13

J918175

CORE, RADIATOR

1шт.

14

J918174

GASKET,0.71mm Thk

cooler core

1шт.

J923477

THERMOSTAT

ASSEMBLY temperature

1шт.

15

NSS

NOT SOLD SEPARAT

THERMOSTAT temperature

1шт.

16

A77724

O-RING,3.05mm Thk x 23.62mm ID

sealing

1шт.

17

J922882

COVER

oil cooler

1шт.

18

J929011

GASKET,1.19mm Thk

cooler cover, oil

1шт.

19

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

4шт.

20

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

Water drain

1шт.

Выбрано товаров: 21
