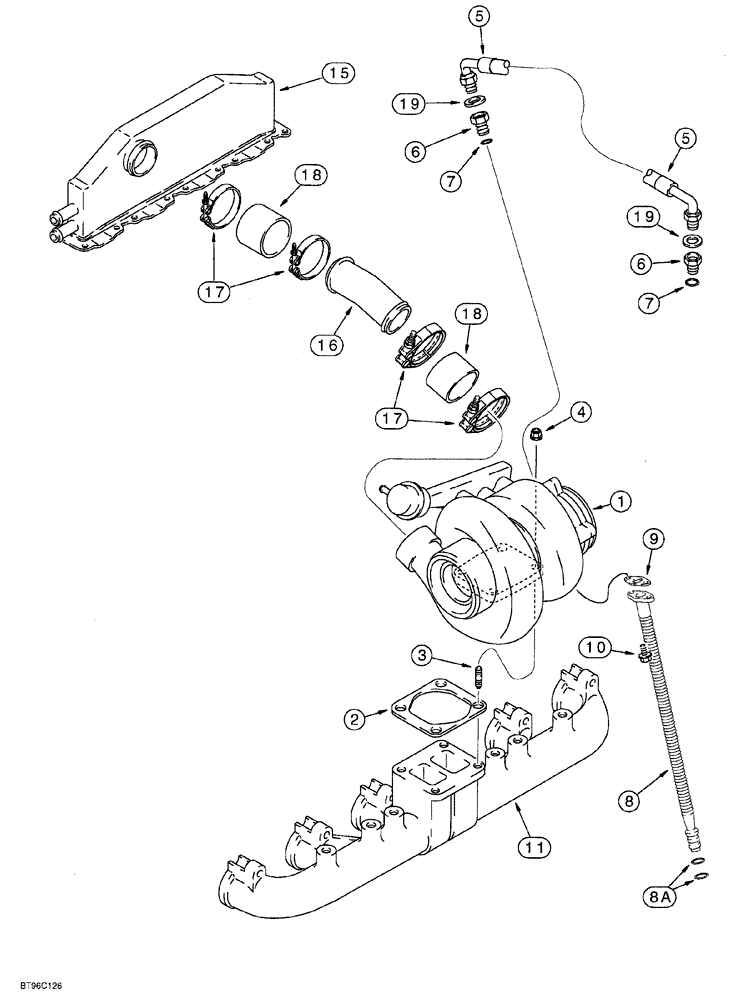

Запчасти Case IH 6831TA (02-028) - TURBOCHARGER SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE

1

J537127

TURBOCHARGER

ASSEMBLY engine, new, see Figure 02-032 and 02-036

1шт.

1

87421864

REMAN-TURBOCHARGER

1шт.

1

JC537127

CORE-TURBOCHARGER

Return Number

1шт.

2

J911941

GASKET

mounting, turbocharger

1шт.

3

J818823

STUD

turbocharger mounting

4шт.

4

J818824

FLANGE NUT

hex flange, special

4шт.

5

J918562

HOSE

21-3/16"/538 mm long, oil supply, turbocharger

1шт.

6

J919687

HYD CONNECTOR

ADAPTER female hex, special

2шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

8

J928629

TUBE

oil drain, flexible, Serial Range: bend-fit

1шт.

8a

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

9

J819378

GASKET

turbo oil drain

1шт.

10

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

11

J906741

MANIFOLD

exhaust, see Figure 02-024

1шт.

15

J924731

AFTERCOOLER

after, air intake, see Figure 02-024

1шт.

16

J914942

TUBE,63.5 mm OD x 189.5, 23 mm L

crossover, air

1шт.

17

J924386

COLLAR CLAMP

adjustable, special

4шт.

18

J916437

HOSE

Crossover Tube

2шт.

19

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
