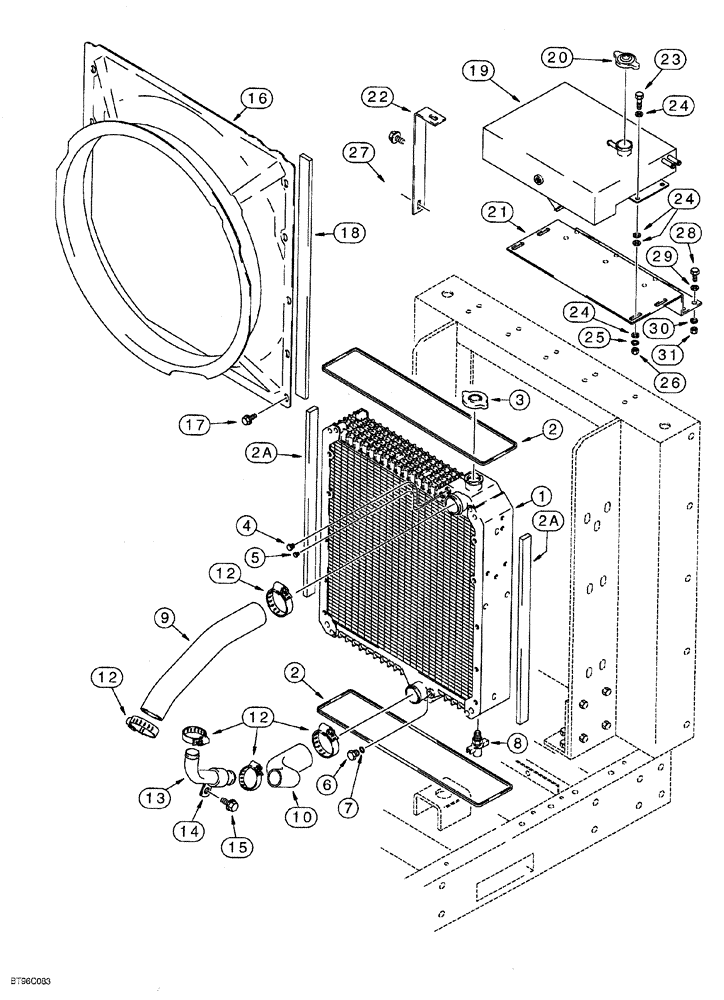

Запчасти Case IH 6831TA (02-002) - RADIATOR, DEAERATION TANK AND MOUNTING
№
Артикул
Название
Примечание
Количество
1
131751A2
RADIATOR
cooling system
1шт.
2
227240A1
GASKET,3.3mm Thk
rubber seal, for tank replacement
2шт.
2a
241176A1
SEAL, 29-1/2"/750 mm long, upper and lower radiator
2шт.
Cut from P/N 1348430C1 bulk seal
1шт.
3
400586R1
RADIATOR CAP
1шт.
4
86568834
PLUG,1/4" - 18 NPT
1шт.
5
86643151
PLUG,Hex Hd, 1/8"-27 NPTF
1шт.
6
214389
PLUG,3/4" - 16 ORB
1шт.
7
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
8
217-92
COCK
VALVE, 1/4" PT
1шт.
9
226715A1
RADIATOR HOSE
Upper
1шт.
10
226716A1
RADIATOR HOSE
Lower
1шт.
12
J918521
HOSE CLAMP,59mm - 83mm
adjustable, 1-13/16-2-3/4" diameter
5шт.
13
1547904C1
TUBE,50.8 mm OD, 275, 100 mm Length
engine coolant inlet
1шт.
14
515-23508
CLAMP,2", Insul, 3/8" Bolt
P-type, tube to cylinder block, 2" ID
1шт.
15
844-10025
BOLT,Hex, M10 x 25mm, Cl 8.8
1шт.
16
141002A1
DEFLECTOR
SHROUD fan
1шт.
17
844-8020
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
Shroud to Radiator
9шт.
18
187107A1
SEAL
adhesive back, between shroud and radiator, 23-15/16"/608 mm long
2шт.
19
231383A1
TANK
deaeration
1шт.
20
A170241
RADIATOR CAP
deaeration tank, 15 psi
1шт.
21
236017A1
BRACKET
support, deaeration tank
1шт.
22
236018A1
BRACKET
support, tank, left-hand
1шт.
23
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
Tank to bracket
4шт.
24
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(13/32 x 13/16 x 1/16")
16шт.
25
492-11038
LOCK WASHER,3/8"
4шт.
26
425-106
NUT,3/8"-16, Cl 5
4шт.
27
844-8025
BOLT,Hvy Hex, M8 x 25mm, Cl 8.8
Lower Bracket Hole to Upper Rear Radiator Support
1шт.
28
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
Tank bracket to horizontal radiator brace
8шт.
29
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(13/32 x 13/16 x 1/16")
8шт.
30
492-11038
LOCK WASHER,3/8"
8шт.
31
425-106
NUT,3/8"-16, Cl 5
8шт.
1348430C1
SEAL
foam, adhesive back, 1/4"/6.4 mm x 1/2"/12.7 mm x 50'/15240 mm long
1шт.
