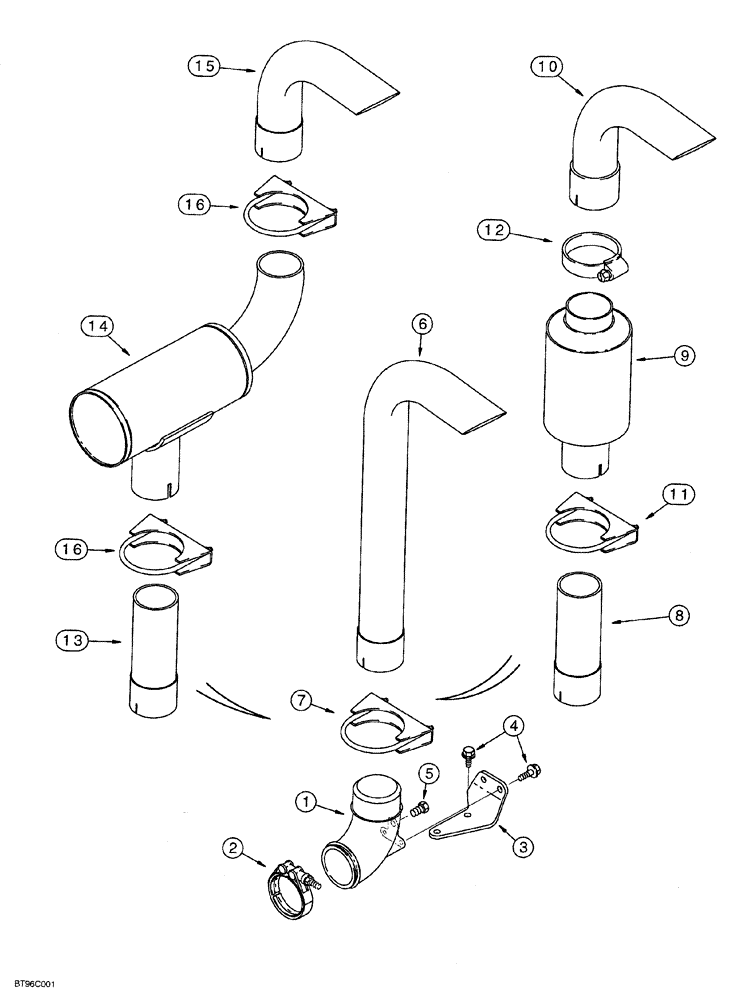

Запчасти Case IH 6831T (02-012) - EXHAUST SYSTEM

1

A173668

ELBOW

turbocharger exhaust, Standard

1шт.

2

A170807

CLAMP,102mm ID

exhaust tube retaining, Standard

1шт.

3

J917923

BRACE

BRACKET support, Standard

1шт.

4

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

Standard

4шт.

5

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

Standard

1шт.

6

236022A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST curved, Standard

1шт.

7

A162896

CLAMP

muffler, includes hardware, Standard

1шт.

8

237779A1

PIPE

extension, Spark arrester

1шт.

9

S99911

SPARK ARRESTER

1шт.

10

239229A1

ELBOW

PIPE exhaust, curved, Spark arrester

1шт.

11

A162896

CLAMP

muffler, includes hardware, Spark arrester

1шт.

12

240731A1

CLAMP

muffler, 4-3/8", Spark arrester

1шт.

13

237779A1

PIPE

extension, Muffler

1шт.

14

J917579

MUFFLER

exhaust

1шт.

15

237780A1

ELBOW

PIPE exhaust, curved, Muffler

1шт.

16

A162896

CLAMP

muffler, includes hardware

2шт.
