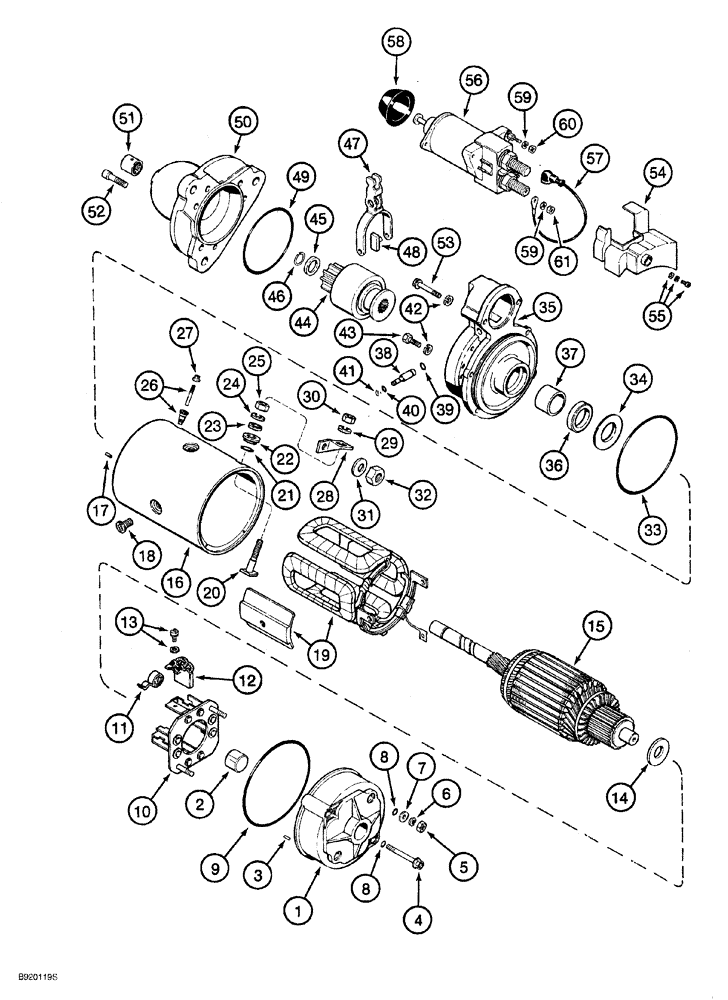

Запчасти Case IH 6831T (04-010) - STARTER ASSEMBLY - A187728
№
Артикул
Название
Примечание
Количество
A187728
STARTING MOTOR
ASSEMBLY engine
1шт.
AR187728
REMAN-STARTER
Remanufactured Starter
1шт.
AC187728
CORE-STARTER
Return Part Number
1шт.
A187728GV
STARTER MOTOR
Value
1шт.
1
A187851
HOUSING
FRAME ASSEMBLY end, commutator
1шт.
2
NSS
NOT SOLD SEPARAT
BEARING needle
1шт.
3
NSS
NOT SOLD SEPARAT
PIN dowel, locating
1шт.
4
845-6060
BOLT,Hvy Hex, M6 x 60mm, Cl 8.8
BOLT heavy hex flange, 6-1.0 x 60 mm
4шт.
5
825-2306
FLANGE NUT,M6 x 1, Flg, Cl 8
hex flange, 6 mm-1
2шт.
6
NSS
NOT SOLD SEPARAT
WASHER lock, 6 mm
2шт.
7
NSS
NOT SOLD SEPARAT
WASHER flat, 6 mm
2шт.
8
A187857
O-RING,5.8 mm ID x 1.9 mm
sealing
4шт.
9
NSS
NOT SOLD SEPARAT
frame
1шт.
10
A187852
BRUSH HOLDER
HOLDER, BRUSH ASSEMBLY
1шт.
11
A187823
SPRING
brush
4шт.
12
A187794
BRUSH, COMMUTATOR
BRUSH starter
4шт.
13
A47816
SCREW,Pan Cross, M5 x 0.8 x 12mm
slotted, includes lock washer, 5-0.8 x 12 mm
4шт.
14
A47813
WASHER
end, armature
1шт.
15
A187847
ARMATURE
starter
1шт.
16
A187846
HOUSING ASSY.
field coil
1шт.
17
NSS
NOT SOLD SEPARAT
PIN dowel, locating
2шт.
18
NSS
NOT SOLD SEPARAT
SCREW retainer, coil
4шт.
19
NSS
NOT SOLD SEPARAT
COIL ASSEMBLY field
1шт.
20
NSS
NOT SOLD SEPARAT
TERMINAL field
1шт.
21
NSS
NOT SOLD SEPARAT
O-RING terminal
1шт.
22
NSS
NOT SOLD SEPARAT
BUSHING insulation
1шт.
23
NSS
NOT SOLD SEPARAT
WASHER flat plate
1шт.
24
NSS
NOT SOLD SEPARAT
WASHER lock
1шт.
25
NSS
NOT SOLD SEPARAT
NUT hex, terminal
1шт.
26
NSS
NOT SOLD SEPARAT
STUD ASSEMBLY terminal, field
1шт.
27
A187862
FLANGE NUT
hex, terminal
1шт.
28
A187858
FITTING
CONNECTOR terminal B
1шт.
29
NSS
NOT SOLD SEPARAT
WASHER lock
1шт.
30
825-1410
NUT,M10, Cl 8
1шт.
31
A187859
WASHER
wave
1шт.
32
425-108
NUT,1/2" - 13, Gr 5
1шт.
33
NSS
NOT SOLD SEPARAT
O-RING sealing, housing
1шт.
34
A187860
WASHER
plate, armature
1шт.
35
A187850
HOUSING
ASSEMBLY lever
1шт.
36
NSS
NOT SOLD SEPARAT
SEAL oil, housing
1шт.
37
NSS
NOT SOLD SEPARAT
BEARING housing
1шт.
38
A187865
KIT
pin, lever
1шт.
39
NSS
NOT SOLD SEPARAT
O-RING pin, large
1шт.
40
NSS
NOT SOLD SEPARAT
O-RING pin, small
1шт.
41
NSS
NOT SOLD SEPARAT
RING snap, pin
1шт.
42
A49815
LOCK WASHER
lock
4шт.
43
A187861
BOLT,Hex, M7 x 23mm
BOLT hex
4шт.
A187728
STARTING MOTOR
ASSEMBLY engine
1шт.
44
A187848
CLUTCH ASSEMBLY
starter drive
1шт.
45
A187855
NUT
pinion stop
1шт.
46
A47790
RING, SNAP
RING SNAP, Serial Range: collar-shaft
1шт.
47
A187853
LEVER
ASSEMBLY clutch
1шт.
48
A187854
WEAR PAD
lever
2шт.
49
A47786
SEAL
clutch housing
1шт.
50
A187849
HOUSING
ASSEMBLY clutch drive
1шт.
51
NSS
NOT SOLD SEPARAT
BEARING needle
1шт.
52
A187856
BOLT,Hex, M7 x 24.50mm
BOLT hex, special, drive housing
6шт.
54
A187864
COVER
KIT, anti-bypass start
1шт.
55
NSS
NOT SOLD SEPARAT
SCREW ASSEMBLY, includes washers, cover
1шт.
56
A187863
SOLENOID SWITCH
ASSEMBLY magnetic
1шт.
57
NSS
NOT SOLD SEPARAT
WIRE connecting
1шт.
58
NSS
NOT SOLD SEPARAT
COVER plunger
1шт.
59
NSS
NOT SOLD SEPARAT
WASHER lock
3шт.
60
NSS
NOT SOLD SEPARAT
NUT hex
1шт.
61
NSS
NOT SOLD SEPARAT
NUT hex
2шт.
53
814-6040
BOLT,Hex, M6 x 1 x 40mm, Cl 8.8
2шт.
