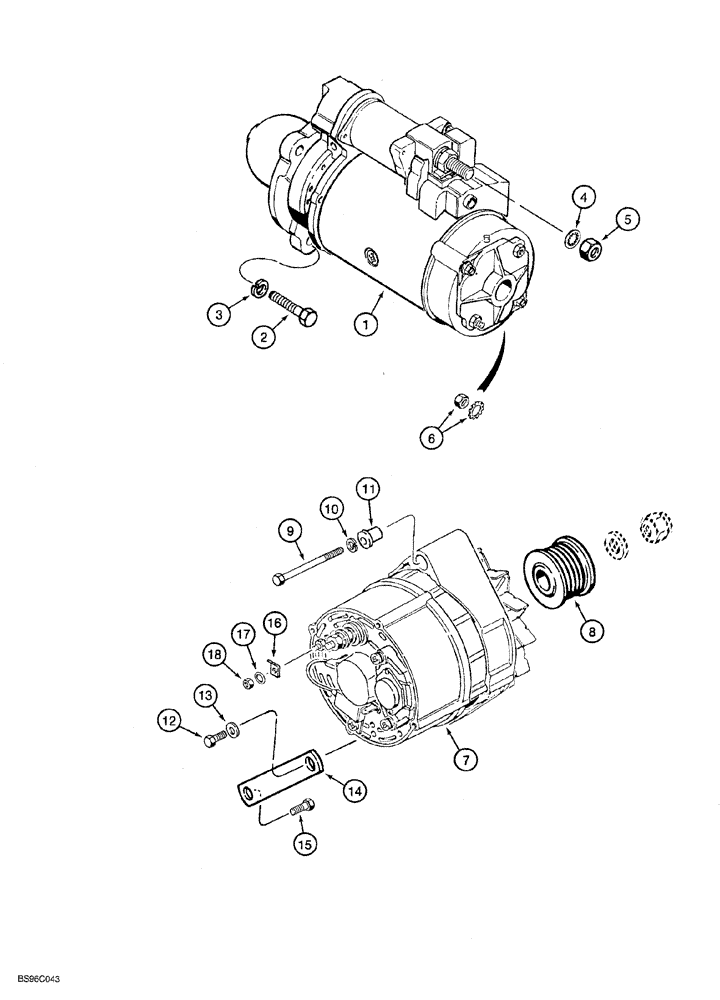

Запчасти Case IH 6831T (04-006) - STARTER AND ALTERNATOR MOUNTING

1

A187728

STARTING MOTOR

ASSEMBLY engine, see Figure 04-010 and 04-012, Mounting

1шт.

1

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

1

AC187728

CORE-STARTER

Return Part Number

1шт.

1

A187728GV

STARTER MOTOR

Value

1шт.

2

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

Starter Mounting

3шт.

3

892-11012

LOCK WASHER,M12

Starter Mounting

3шт.

4

493-21052

LOCK WASHER,Int Tooth, 1/2"

internal tooth lock, 1/2", Starter Mounting

1шт.

5

425-148

JAM NUT,Jam, 1/2"-13, G5

Starter Mounting

1шт.

6

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF, Starter Mounting

1шт.

7

A187873

ALTERNATOR,12V, 65A

ASSEMBLY engine, 65 ampere, see Figure 04-008

1шт.

7

AR187873

REMAN-ALTERNATOR

Reman For New P/N A187873

1шт.

7

AC187873

CORE-ALTERNATOR

Return Part Number

1шт.

8

J908560

PULLEY

drive, Alternator

1шт.

9

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

Alternator

1шт.

10

892-11010

LOCK WASHER,M10

Alternator

1шт.

11

J910715

SPACER

alternator mounting

1шт.

12

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

Alternator to brace

1шт.

13

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

flat, special, 3/8", brace bolt, Alternator

1шт.

14

J907673

SUPPORT

BRACE lower, alternator mounting

1шт.

15

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Alternator

1шт.

16

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

Alternator Male

1шт.

17

892-11005

LOCK WASHER,M5

Alternator

1шт.

18

825-1405

NUT,M5, Cl 8

Alternator

1шт.
