Запчасти Case IH 6831T (04-004) - INSTRUMENT PANEL

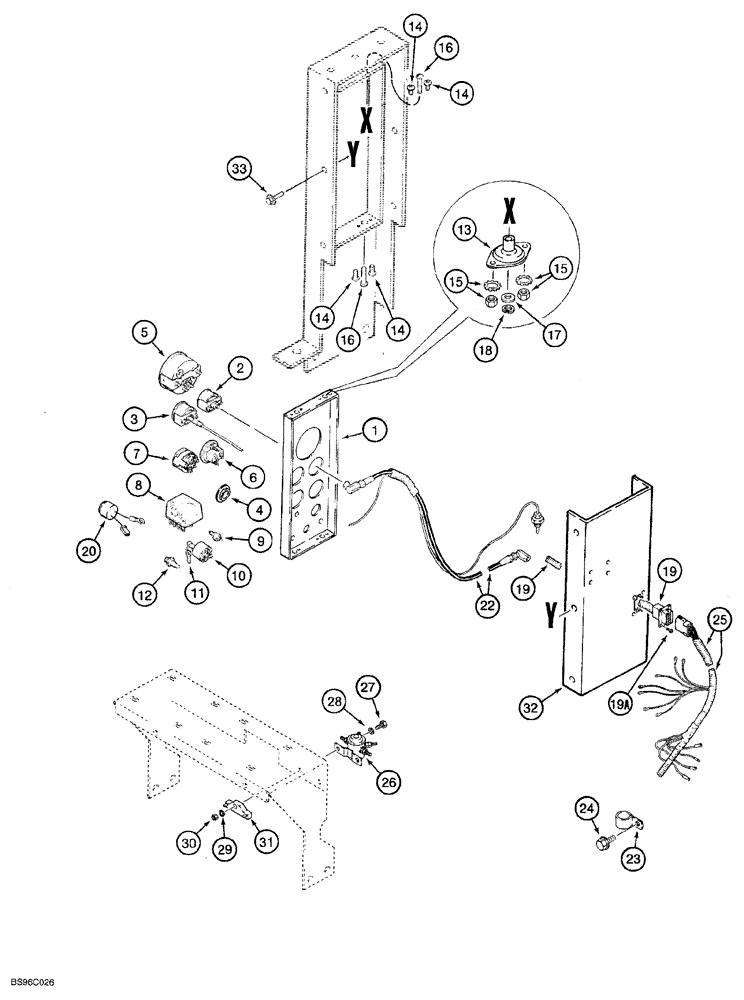

Схема запчастей Case IH 6831T - (04-004) - INSTRUMENT PANEL
19
30
15
11
19
26
28
25
3
4
24
10
18
14
12
13
1
16
14
16
6
5
14
33
7
17
8
14
32
15
9
27
19a
22
2
23
29
31
20

Артикул

Название

Примечание

Количество

239506A1

PANEL

ASSEMBLY instrument

1шт.

1

102782A1

PANEL

instrument, blank

1шт.

2

1347691C1

GAUGE

pressure, engine oil

1шт.

3

1347693C1

GAUGE

coolant temperature

1шт.

4

102783A1

COVER

instrument panel hole

1шт.

5

1347690C1

TACHOMETER

engine speed

1шт.

6

D53047

GAUGE

HOURMETER engine

1шт.

7

1347695C1

VOLTMETER

GAUGE

1шт.

8

102787A1

KIT

magnetic

1шт.

9

1347699C1

BUTTON

emergency stop

1шт.

10

1347696C1

SWITCH

key, engine start

1шт.

11

100861A1

KEY

engine start switch

1шт.

12

1347753C1

HOLDER

fuse

1шт.

13

1347700C1

MOUNTING PARTS

shock, panel

4шт.

14

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

machine, pan Phillips, No. 6 NC x 3/8"

8шт.

15

193-1003

NUT,Keps, w/LW,#6-32

External tooth

8шт.

16

440-10820

SCREW,Cross Pan Hd, #8-32 x 1 1/4"

machine, pan Phillips, No. 8 NC x 1-1/4"

4шт.

17

495-21019

WASHER,#8

4шт.

18

492-11008

LOCK WASHER,#8

4шт.

19

240512A1

HARNESS

internal wiring, instrument panel, not shown

1шт.

19a

276-1468

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

self-tapping, hex head, No. 12 NC x 1/2"

4шт.

20

182381A1

KIT

DIODE electrical

1шт.

21

102784A1

KIT

relay, starter switch, not shown

1шт.

22

1347692C1

TUBE

TUBE pressure, oil

1шт.

23

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

P-type

1шт.

24

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

25

237471A1

HARNESS

external wiring, instrument panel

1шт.

26

1347697C1

RELAY

starter switch, mounts to air cleaner bracket

1шт.

27

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

28

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

29

492-11025

LOCK WASHER,1/4"

2шт.

30

425-104

NUT,1/4"-20, Cl 5

2шт.

31

107558C1

RESISTOR

on air cleaner bracket

1шт.

32

102326A1

PANEL

COVER instrument, rear

1шт.

33

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

6шт.
