Запчасти Case IH 6831T (04-002) - ENGINE SHUTOFF SWITCHES

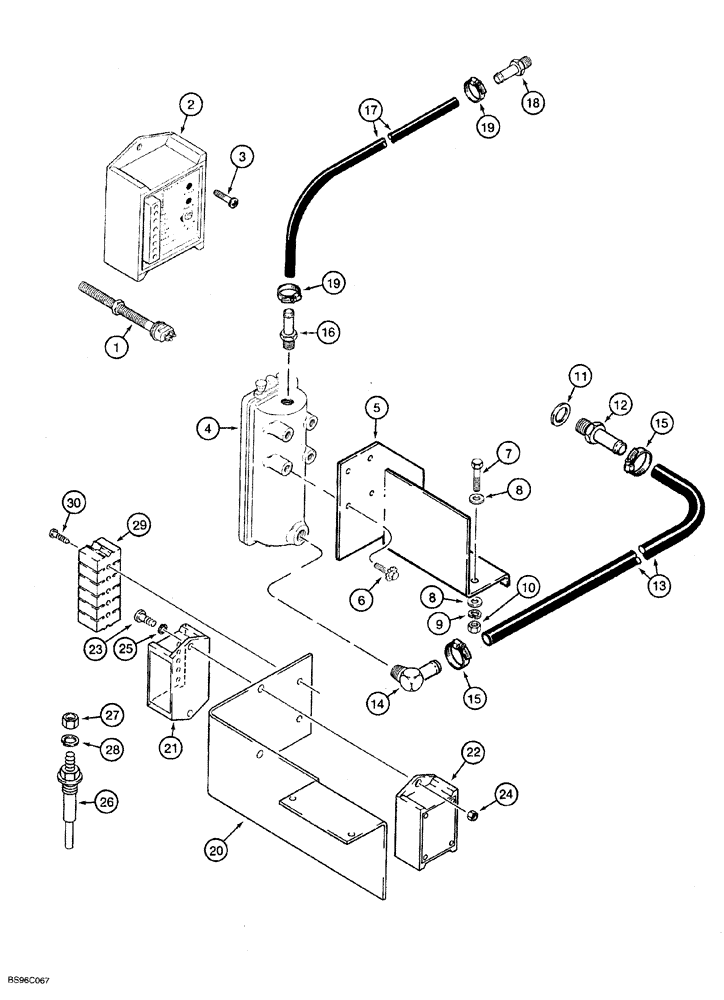

Схема запчастей Case IH 6831T - (04-002) - ENGINE SHUTOFF SWITCHES
12
23
6
9
17
28
11
8
19
13
29
26
3
21
27
18
20
19
22
16
30
8
10
2
15
4
15
7
5
14
25
1
24

Артикул

Название

Примечание

Количество

1347739C1

ATTACHMENT

SWITCH ASSEMBLY overspeed, engine, if used

1шт.

1

1347704C1

SENDER UNIT

SENDER pickup, magnetic, flywheel housing

1шт.

2

1347703C1

SWITCH

overspeed, engine

1шт.

3

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

2шт.

4

1347701C1

SWITCH ASSY

oil level, high/low, Incl 6, 14, 16

1шт.

5

101871A1

BRACKET

mounting, switch

1шт.

6

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

BOLT hex serrated flange, 1/4 NC x 3/4"

4шт.

7

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.

12

101906A1

FITTING

CONNECTOR ADAPTER straight, special

1шт.

13

102082A1

HOSE,15.90 mm ID x 533.40 mm, SAE 100R6

Oil Gauge Supply

1шт.

Cut from Bulk Hose P/N73200C1

1шт.

14

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

ELBOW, 5/8 stem end x 1/2" PT, 90°

1шт.

15

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

16

217-114

FITTING,3/8" Hose x 1/8" NPTF, Barbed

straight, 3/8 barb end x 1/8" PT

1шт.

17

103001A1

HOSE,9.50 mm ID x 1219.00 mm, SAE 100R6

Oil gauge vent

1шт.

Cut from Hose P/N 706670C1

1шт.

18

217-114

FITTING,3/8" Hose x 1/8" NPTF, Barbed

straight, 3/8 barb end x 1/8" PT

1шт.

19

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

20

240577A1

BRACKET

speed and coolant modules

1шт.

21

237728A1

BOARD, PRINTED CIRCU

IT MODULE overspeed, if used

1шт.

22

240549A1

BOARD, PRINTED CIRCU

IT MODULE low coolant sensor

1шт.

23

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

2шт.

24

225-14108

NUT,#8-32

hex, No. 8 NC

2шт.

25

492-11008

LOCK WASHER,#8

2шт.

26

240548A1

SENSOR

low coolant, deaeration tank, see Figure 02-003 for tank and mounting hardware

1шт.

27

225-14210

NUT,#10-32

1шт.

28

492-11010

LOCK WASHER,#10

1шт.

29

240667A1

TERMINAL CONNECTOR,2 - 12 Pin, 8 - 24 SAE

terminal, 6 posts

1шт.

30

260-14416

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

2шт.

73200C1

HOSE,16mm ID x 1219.2mm L

Bulk

1шт.

706670C1

HOSE

3/8/10 ID x 600"/15240 mm long

1шт.

Выбрано товаров: 35
