Запчасти Case IH 6831T (02-058) - FLYWHEEL AND HOUSING, 6T-830 EMISSIONS CERTIFIED ENGINE, 6TA-830 EMISSIONS CERTIFIED ENGINE

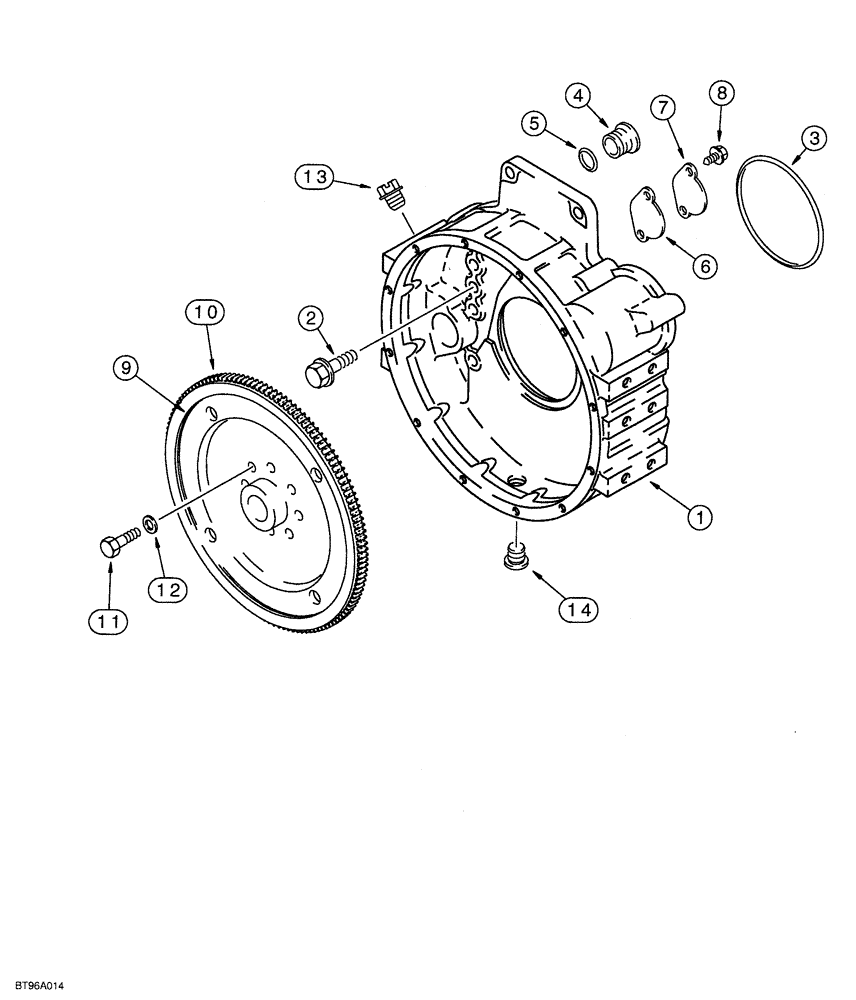

Схема запчастей Case IH 6831T - (02-058) - FLYWHEEL AND HOUSING, 6T-830 EMISSIONS CERTIFIED ENGINE, 6TA-830 EMISSIONS CERTIFIED ENGINE
5
8
6
1
9
10
14
11
12
3
2
7
13
4

Артикул

Название

Примечание

Количество

1

J908799

HOUSING

flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

12шт.

3

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

4

J910248

PLUG

flywheel housing

1шт.

5

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

6

J908096

GASKET

cover plate

1шт.

7

J925234

PLATE

cover

1шт.

8

J912072

SELF-TAP SCREW

Hex washer head, special, 8-1.25 x 15 mm

2шт.

9

J914433

FLYWHEEL

ASSEMBLY engine

1шт.

10

J905427

GEAR

ring, flywheel

1шт.

11

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

12

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, special, flywheel bolt

8шт.

13

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

14

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

15

J923610

CLIP

breather hose, retaining, attaches to P/N J925234, cover plate with existing hardware, not shown

1шт.

Выбрано товаров: 15
