Запчасти Case IH 6831T (02-056) - CRANKSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, 6TA-830 EMISSIONS CERTIFIED ENGINE

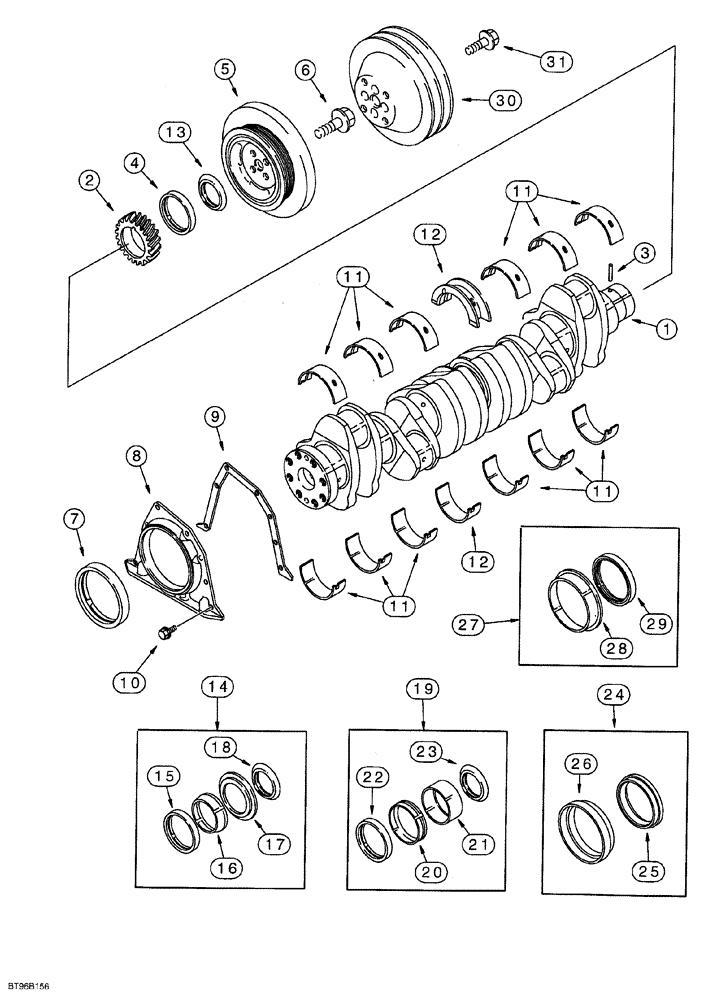

Схема запчастей Case IH 6831T - (02-056) - CRANKSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, 6TA-830 EMISSIONS CERTIFIED ENGINE
1
5
24
11
26
30
18
14
4
28
2
23
31
21
20
7
11
6
25
11
9
8
15
11
10
12
29
19
27
12
16
3
22
13
17

Артикул

Название

Примечание

Количество

JR917443

REMAN-CRANKSHAFT

ASSEMBLY engine, remanufactured, North America only

1шт.

Component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC917443

CORE-CRANKSHAFT

NUMBER return

1шт.

Use this part number to return Crankshaft for credit when using a remanufactured Assembly

1шт.

1

J917443

CRANKSHAFT

ASSEMBLY engine, new

1шт.

2

J918380

GEAR

crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, front, order Kit P/N A77790

1шт.

5

J925561

DAMPER

PULLEY crankshaft vibration

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

hex flange, special, 14 x 35 mm

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL oil, rear, order Kit P/N A77809

1шт.

8

J921042

REAR COVER

RETAINER seal

1шт.

9

J914301

GASKET

rear cover retainer

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Heavy, Rear retainer to cylinder block

8шт.

11

A77711

BEARING LINER

main, upper and lower set, standard

6шт.

11

A77712

BEARING LINER

main, upper and lower set, 0.25 mm undersize

6шт.

11

A77713

BEARING LINER

main, upper and lower set, 0.50 mm undersize

6шт.

11

A77714

BEARING LINER

main, upper and lower set, 0.75 mm undersize

6шт.

11

A77715

BEARING LINER

main, upper and lower set, 1.0 mm undersize

6шт.

12

A77843

BEARING LINER

main thrust, upper and lower set, standard

1шт.

12

A77844

BEARING LINER

main thrust, upper and lower set, 0.25 mm undersize

1шт.

12

A77845

BEARING LINER

main thrust, upper and lower set, 0.50 mm undersize

1шт.

12

A77846

BEARING LINER

main thrust, upper and lower set, 0.75 mm undersize

1шт.

12

A77847

BEARING LINER

main thrust, upper and lower set, 1.0 mm undersize

1шт.

12

A77848

CRANKSHAFT BEARING

main thrust, upper and lower set, standard journal diameter, 0.25 mm oversize thrust width

1шт.

12

A77849

CRANKSHAFT BEARING

main thrust, upper and lower set, standard journal diameter, 0.50 mm oversize thrust width

1шт.

12

A77850

CRANKSHAFT BEARING

main thrust, upper and lower set, 0.50 mm undersize journal diameter, 0.50 mm oversize thrust width

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

dust, front seal

1шт.

14

A77790

SEAL KIT

oil, crankshaft front

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

dust, front seal

1шт.

19

A77808

SERVICE KIT

wear sleeve, crankshaft front

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

dust

1шт.

24

A77809

GASKET KIT

oil seal, crankshaft rear

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

27

A77810

SERVICE KIT

KIT wear sleeve, crankshaft rear; Incl Ref 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

30

J906717

PULLEY

crankshaft, accessory, if used

1шт.

31

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

Use with P/N J906717 Accessory pulley, if used

4шт.

Выбрано товаров: 46
