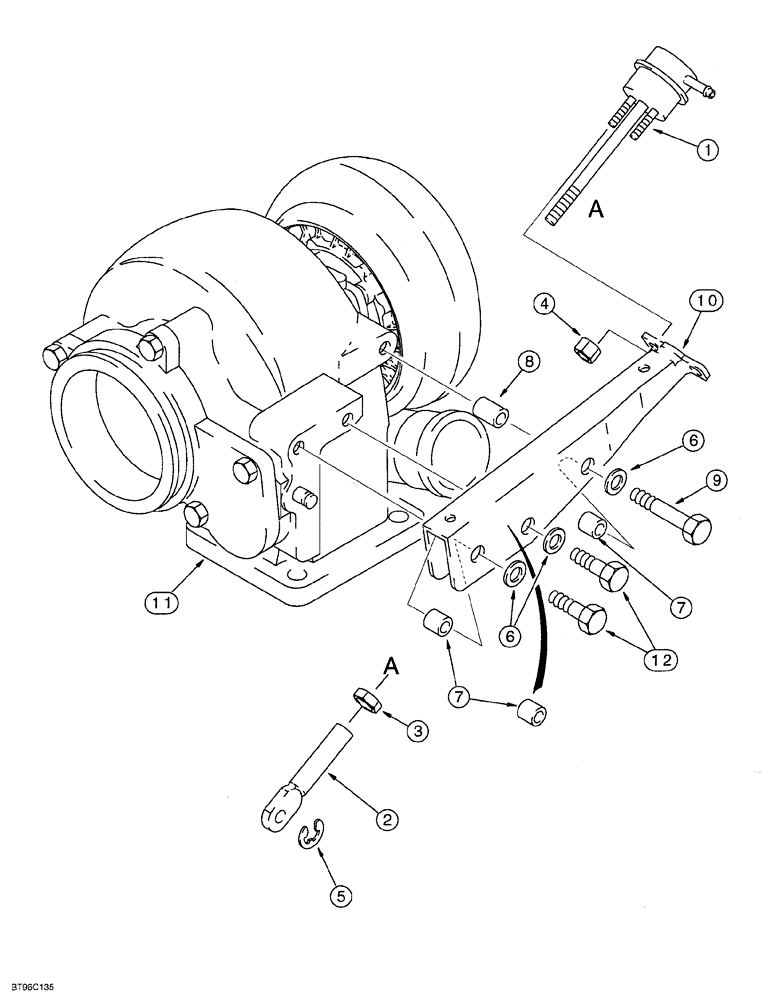

Запчасти Case IH 6831T (02-034) - WASTEGATE ACTUATOR, 6T-830 EMISSIONS CERTIFIED ENGINE

J535635

TURBOCHARGER

ASSEMBLY engine, new, Includes : Ref. 1 - 12, and also Figure 02-030

1шт.

See Figure 02-030 for remainder of Turbocharger Assembly

1шт.

1

J535106

ACTUATOR

turbo wastegate

1шт.

1

J593679R

REMAN-SOLENOID

6831T IPU, Reman Actuator For New P/N's J535106 & J593679

1шт.

1

J593679C

CORE-SOLENOID

Return Number

1шт.

2

J528177

LINK

adjusting

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

1шт.

4

J528204

LOCK NUT

lock

2шт.

5

J528221

CIRCLIP

retaining

1шт.

NSS

NOT SOLD SEPARAT

HOUSING turbine and actuator bracket

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

mounting, short

3шт.

8

J532196

SPACER,9.38mm ID x 16.03mm OD x 19mm L

mounting, long

1шт.

9

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

10

J533328

SUPPORT

BRACKET wastegate actuator

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING turbine

1шт.

12

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.
