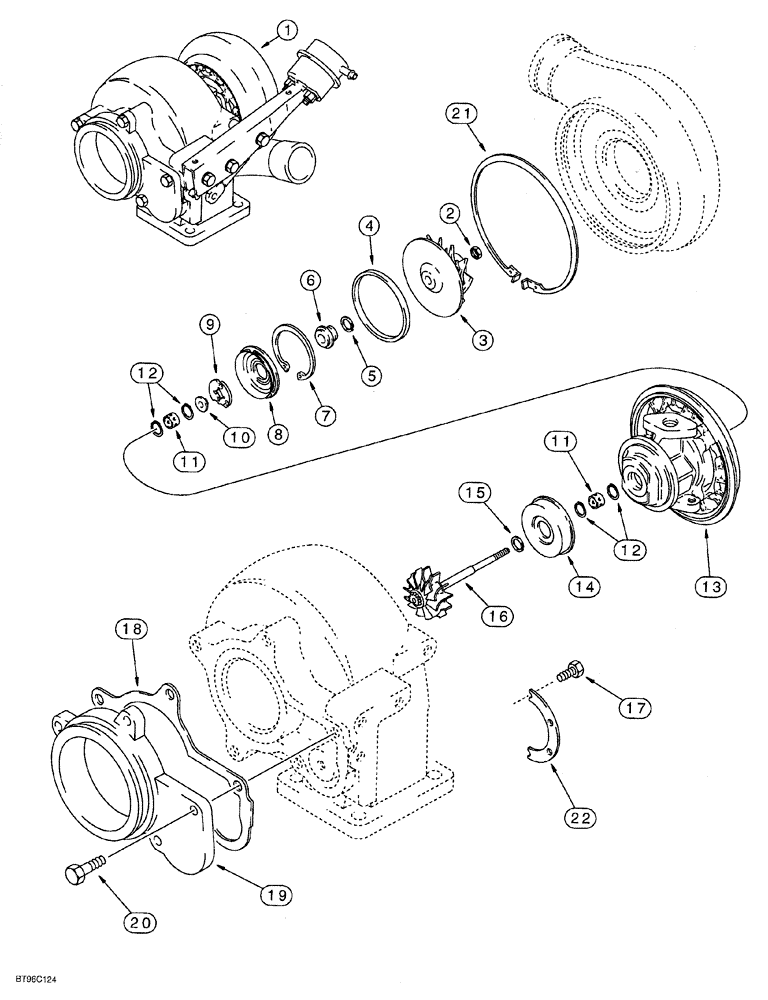

Запчасти Case IH 6831T (02-030) - TURBOCHARGER ASSEMBLY, 6T-830 EMISSIONS CERTIFIED ENGINE

JR535635

TURBOCHARGER

ASSEMBLY engine, remanufactured North America only

1шт.

Component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC535635

CORE-TURBOCHARGER

NUMBER return

1шт.

Use this part number to return Turbocharger Core for credit when using a remanufactured Assembly

1шт.

1

J535635

TURBOCHARGER

ASSEMBLY engine, new

1шт.

Includes all parts shown in Figure 02-030 and 02-034

1шт.

See Figure 02-034 for remainder of the Turbocharger Assembly

1шт.

J535324

CARTRIDGE

CENTER ASSEMBLY, turbocharger

1шт.

2

NSS

NOT SOLD SEPARAT

NUT lock

1шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL O-ring

1шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL split ring

1шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING turbocharger thrust

1шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING turbocharger

2шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

12

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING bearing turbine

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD turbine heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL split ring

1шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR AND SHAFT turbocharger

1шт.

17

J759917

SET SCREW

SET, hex head

6шт.

Part of Overhaul Turbocharger Kit P/N J575169

1шт.

18

J535243

GASKET,0.25mm Thk

adapter

1шт.

19

J533030

ADAPTER

connection

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

21

J533163

SNAP RING

retaining

1шт.

22

J534309

PLATE

clamping

2шт.

J575169

REPAIR KIT

KIT overhaul turbocharger, Includes: Refs. 2, 4, 5, 7, 8, 9, 11, 12, 15 and 17, also, see Figure 02-034 for additional parts.

1шт.
