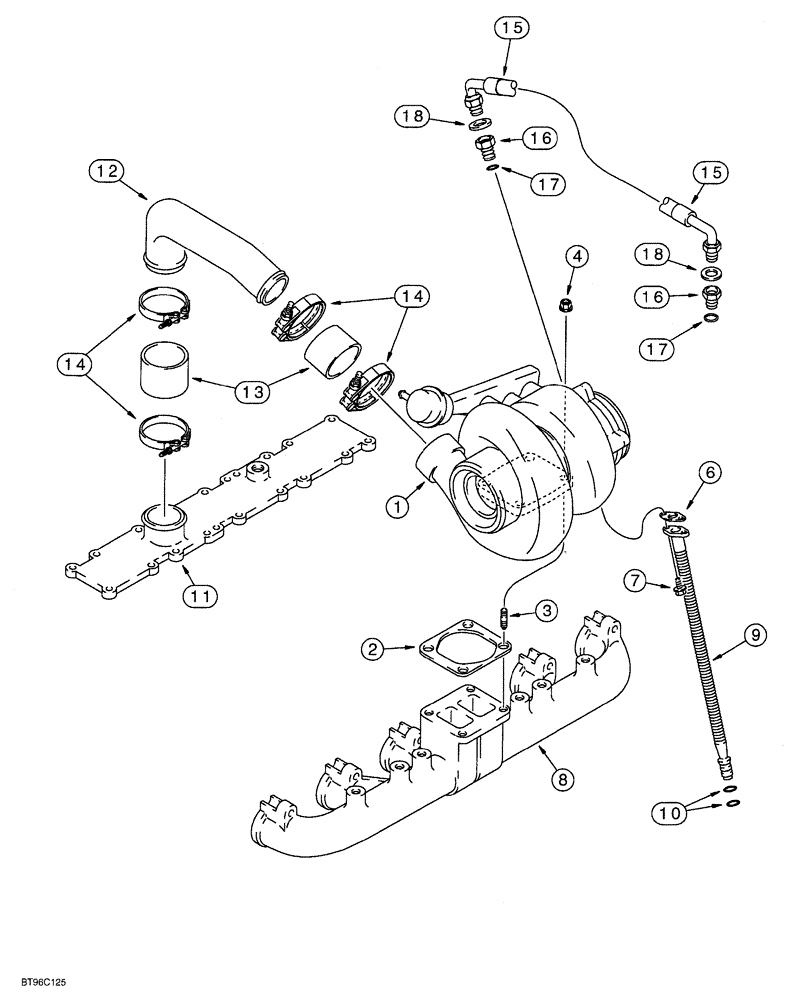

Запчасти Case IH 6831T (02-026) - TURBOCHARGER SYSTEM, 6T-830 MISSIONS CERTIFIED ENGINE

1

J535635

TURBOCHARGER

ASSEMBLY engine, new, see Figure 02-030 and 02-034

1шт.

2

J911941

GASKET

mounting, turbocharger

1шт.

3

J818823

STUD

turbocharger mounting

4шт.

4

J818824

FLANGE NUT

hex flange, special

4шт.

6

J819378

GASKET

turbo oil drain

1шт.

7

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

J906741

MANIFOLD

exhaust

1шт.

9

J928629

TUBE

oil drain

1шт.

10

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

11

J922648

COVER ASSY

intake manifold

1шт.

12

J906742

TUBE,63.5 mm OD

air, crossover

1шт.

13

J916437

HOSE

Crossover Tube

2шт.

14

J924386

COLLAR CLAMP

adjustable, special, hose retaining

4шт.

15

J918562

HOSE

21-3/16"/538 mm long, turbocharger oil supply

1шт.

16

J919687

HYD CONNECTOR

ADAPTER female hex, special

2шт.

17

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

18

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
