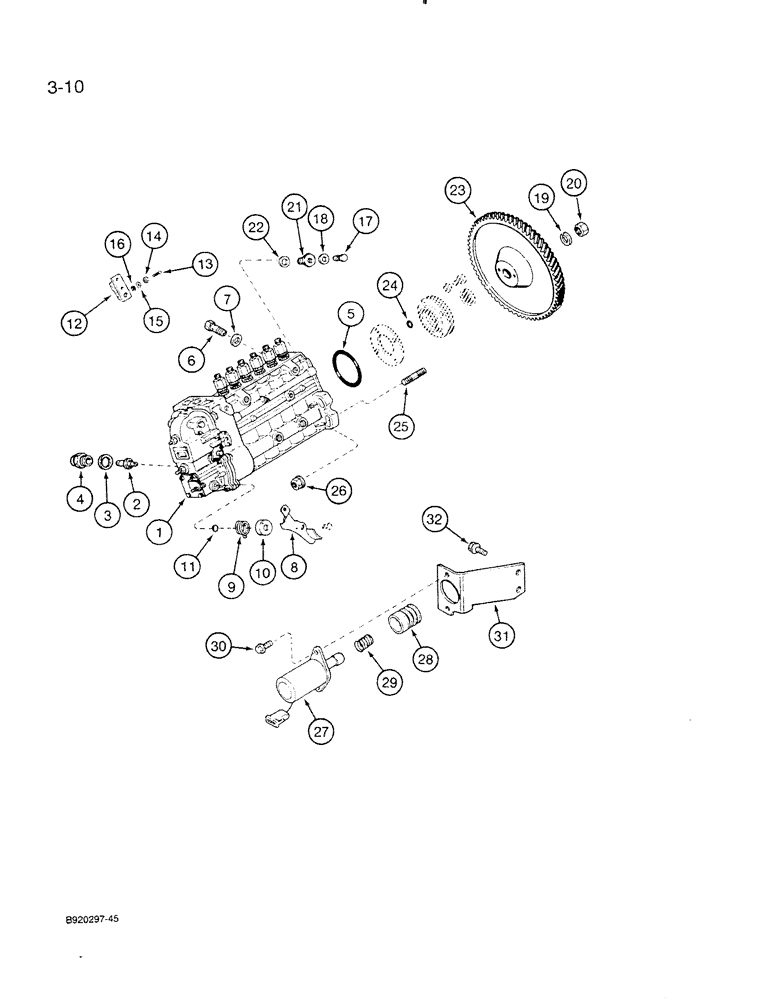

Запчасти Case IH 6830TA (3-10) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 ENGINE
№
Артикул
Название
Примечание
Количество
JR915965
REMAN-HYD PUMP
PUMP ASSEMBLY - injection, remanufactured, (North America only), component parts shown on this page do not apply to the remanufactured assembly
1шт.
JC913339
CORE
RETURN NUMBER - injection pump, use this number to return pump core for credit when using a remanufactured assembly
1шт.
1
J915965
PUMP, FUEL INJECTION
PUMP ASSEMBLY - fuel injection, new
1шт.
2
A77720
PIN
- timing
1шт.
3
933222R1
SEALING WASHER,M18 x 22 x 1.5
Plug M18 x 22 x 1.5
1шт.
6
J912886
VALVE
BOLT - restrictor, banjo
1шт.
7
933697R1
SEALING RING,M10 x 13.5 x 1
WASHER - valve sealing
1шт.
8
J910979
LEVER
- pump shutoff
1шт.
9
J912890
SPRING
- lever shutoff
1шт.
10
691292C1
RETAINER
HOUSING - spring return
1шт.
11
680187C1
O-RING,2.5mm Thk x 9mm ID
- shut-off shaft
1шт.
12
1808728C1
LEVER
- pump control
1шт.
13
1808822C1
THUMB SCREW,M6 x 26mm
SCREW - lever
1шт.
14
829-1306
NUT,M6, Cl 10
- hex, 6 x 1 mm, Throttle lever
1шт.
15
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
1шт.
16
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
1шт.
17
J913320
SCREW
- vent
1шт.
18
691273C1
GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk
- vent screw
1шт.
19
J912897
LOCK WASHER
- lock
1шт.
20
J912896
LOCK NUT
- hex lock
1шт.
21
B41211
SCREW
- vent
1шт.
22
757760R1
RING
- packing
1шт.
23
J912615
GEAR
- pump, fuel
1шт.
24
J910502
O-RING
- oil port
1шт.
25
J915036
STUD
- mounting, pump, 55 mm (2-5/32 in)
4шт.
26
J902662
FLANGE NUT
- hex flange, 10 mm
4шт.
27
J918600
SOLENOID
ASSEMBLY - shutoff, fuel
1шт.
28
A77681
BOOT
- protective, plunger
1шт.
29
A77702
SPRING
- return, plunger
1шт.
30
845-6015
BOLT,Hvy Hex, M6 x 15mm, Cl 8.8
2шт.
31
J916144
BRACKET
- solenoid mounting
1шт.
32
854-10020
BOLT,Hvy Hex, M10 x 20mm, Cl 10.9
- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9
2шт.
Выбрано товаров: 34
