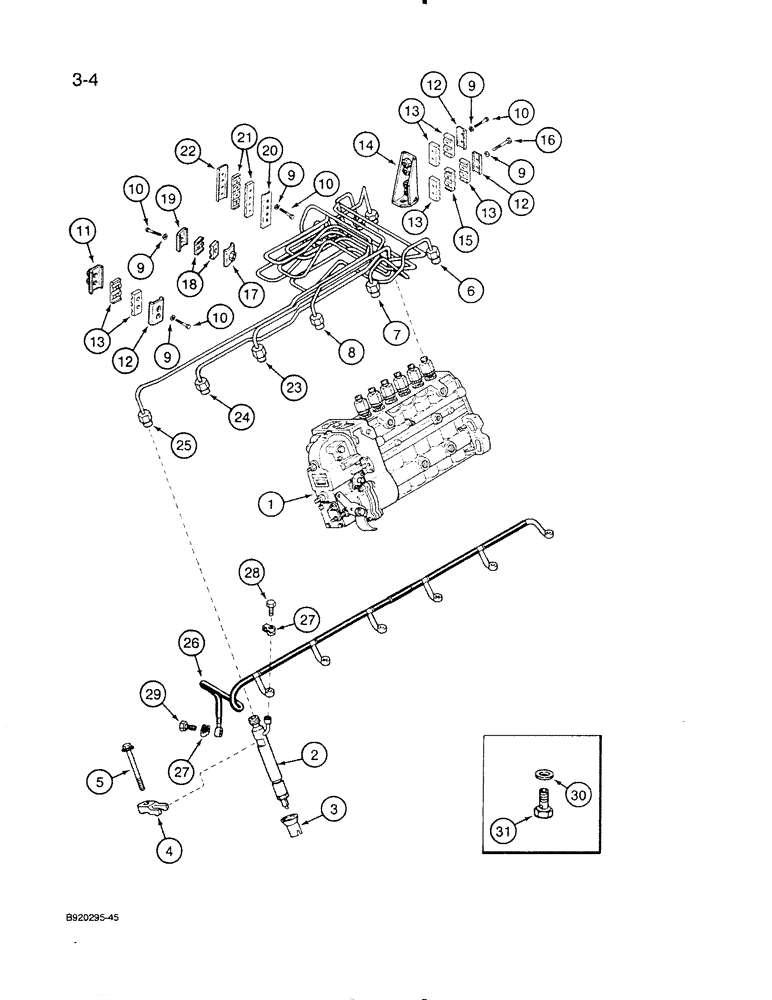

Запчасти Case IH 6830TA (3-04) - FUEL INJECTION SYSTEM, 6TA-830 ENGINE

1

REF

INSTRUCTION

PUMP ASSEMBLY - injection, fuel, see page 3-11 for fuel injection pump options

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, see page 3-15 for correct assembly and components

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- sleeve, injector

6шт.

4

J910279

CLAMP

- injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 80 mm

6шт.

6

J910749

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel, No. 1 cylinder

1шт.

7

J910750

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel, No. 2 cylinder

1шт.

8

J910751

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel, No. 3 cylinder

1шт.

9

J903723

WASHER

- flat, 6 x 10 x 1 mm

11шт.

10

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

9шт.

11

J917716

BRACE

- supply tube

1шт.

12

J904519

SUPPORT

BRACE - tube

3шт.

13

J917747

CLAMP

ISOLATOR - tube

6шт.

14

J917776

BRACE

BRACKET - tube

1шт.

15

J917748

CLAMP

ISOLATOR - tube

1шт.

16

J917713

SCREW,Pan, #6 - 32 x 3/8", Gr 2

BOLT - hex retaining

2шт.

17

J917717

BRACE

- tube

1шт.

18

J917746

CLAMP

ISOLATOR - fuel tube

2шт.

19

CURJ904711

CLAMP

BRACE - supply tube

1шт.

20

J910686

BRACE

- tube retaining

1шт.

21

J917749

CLAMP

ISOLATOR - tube

2шт.

22

J917740

BRACE

- tube retaining

1шт.

23

J910752

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE ASSEMBLY - fuel, No. 4 cylinder

1шт.

24

J910753

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE ASSEMBLY - fuel, No. 5 cylinder

1шт.

25

J910754

FUEL TUBE

TUBE ASSEMBLY - fuel, No. 6 cylinder

1шт.

26

J920595

TUBE ASSY.

MANIFOLD - fuel drain

1шт.

27

J903380

SEAL

- connector, banjo

7шт.

28

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

7шт.

29

J916360

VALVE

- check

1шт.

30

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing

2шт.

31

J916361

BANJO BOLT

BOLT - banjo, special, M12 x 24

1шт.
