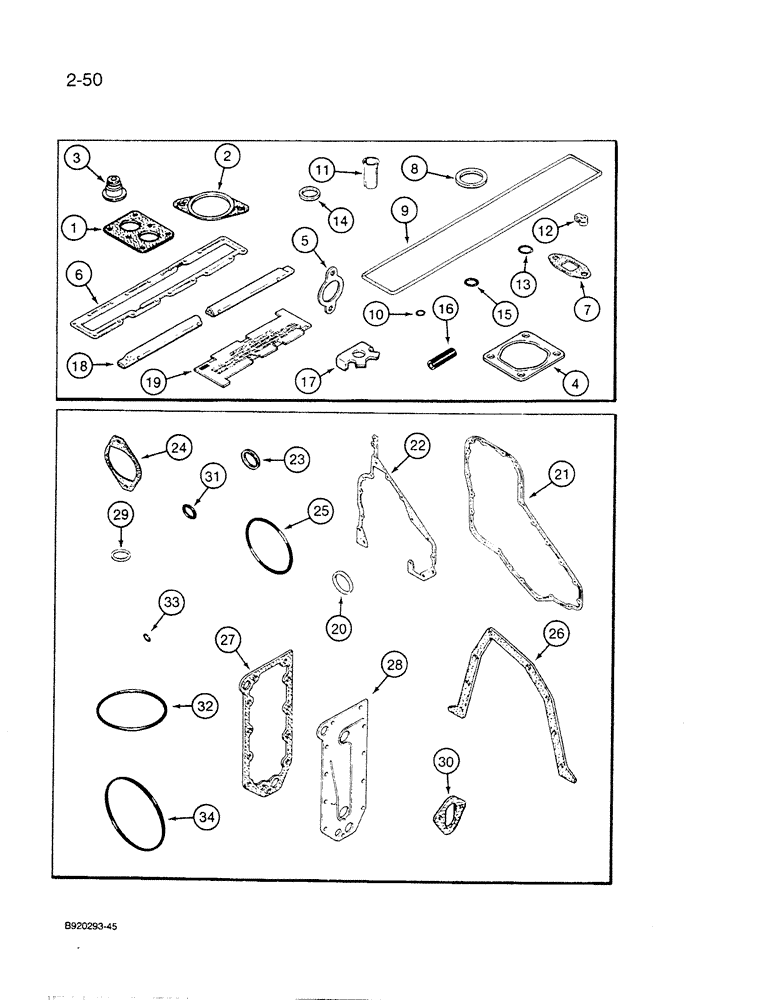

Запчасти Case IH 6830TA (2-50) - ENGINE GASKET KITS, 6T-830 ENGINE, 6TA-830 ENGINE, VALVE GRIND

A77794

GASKET KIT

KIT - gasket, valve grind

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on page 2-31. **NOTE: For a complete engine overhaul, order (1) valve grind kit, (1) cylinder block kit and (1) oil pan kit from page 2-45; the front and rear crankshaft seal kit from page 2-43 and the cylinder head gasket from page 2-31.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

A77705

GASKET

- outlet tube, water

1шт.

3

J915707

SEAL

- intake and exhaust valve stem and guide

12шт.

4

J911941

GASKET

- mounting, turbocharger

1шт.

5

J911942

GASKET

- manifold, exhaust

6шт.

6

J914311

MANIFOLD GASKET

- manifold, intake

1шт.

7

J914388

GASKET

- turbocharger drain tube

1шт.

8

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - seal, oil fill cap

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover, rocker

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- injector

6шт.

12

J903380

SEAL

- connector, banjo

7шт.

13

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- breather tube

1шт.

14

J906659

SEAL

- injection nozzle

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Thermostat housing filter shutoff -111, 70 Duro, .424" ID x .103" Thk

1шт.

16

J918610

HOSE,19.05 mm ID x 51.00 mm

Connector 19.05 mm ID x 51.00 mm

1шт.

17

J914708

LOCKING PLATE

PLATE - locking, bolt

1шт.

18

J919677

TUBE

- rocker arm oil

1шт.

19

J823921

GAUGE

- cylinder head capscrew length

1шт.

A77726

KIT

- gasket, cylinder block

1шт.

For a complete engine overhaul, order (1) valve grind kit, (1) cylinder block kit and (1) oil pan kit from page 2-45, the front and rear crankshaft seal kit from page 2-43 and the cylinder head gasket from page 2-31.

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, front

1шт.

21

J917779

GASKET,0.98mm Thk

- cover, gear

1шт.

22

J914303

SEAL

GASKET - housing, front gear

1шт.

23

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - timing pin housing

1шт.

24

J919601

GASKET

- cover plate

1шт.

25

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - mounting, water pump

1шт.

26

J914301

GASKET

- rear retainer

1шт.

27

J918174

GASKET,0.71mm Thk

- oil cooler core

1шт.

28

J918332

GASKET

- cover, oil cooler

1шт.

29

J901798

SEALING WASHER

WASHER - sealing, regulator plug

1шт.

30

J914304

GASKET

- mounting, lift pump

1шт.

31

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Plug, flywheel housing -212, 70 Duro, .859" ID x .139" Thk

1шт.

32

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, cylinder

6шт.

33

J913994

O-RING

- sealing

1шт.

34

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING -, Serial Range: housing-block

1шт.
