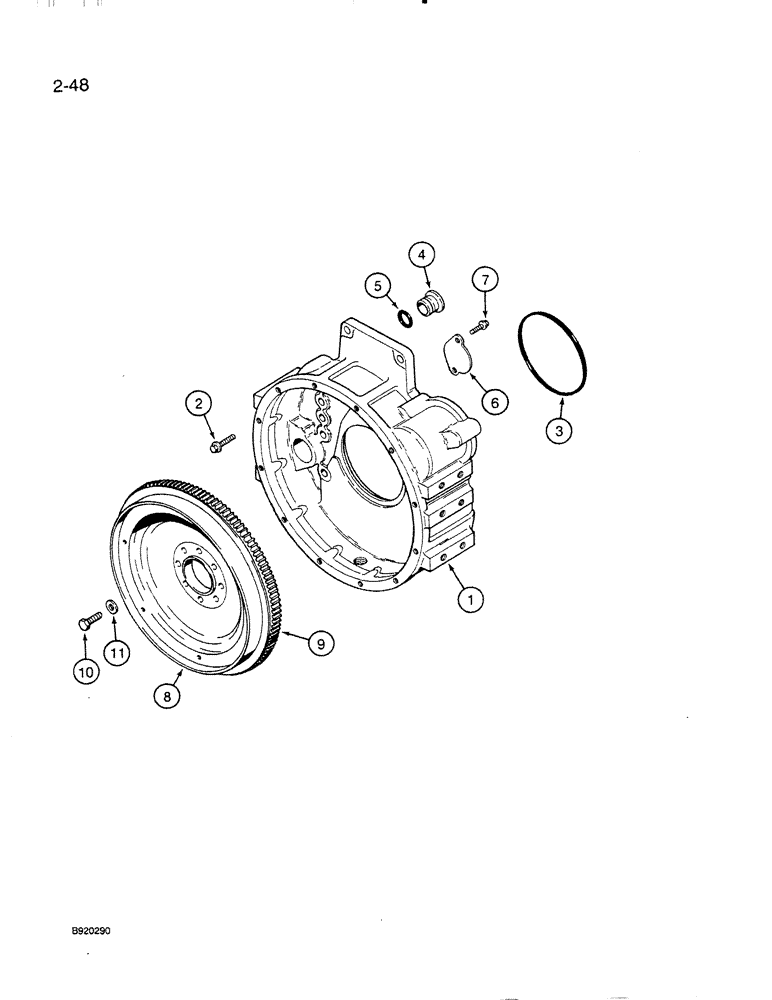

Запчасти Case IH 6830TA (2-48) - FLYWHEEL AND HOUSING, 6T-830 ENGINE, 6TA-830 ENGINE

1

J908799

HOUSING

- flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9, Housing retaining

12шт.

3

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing

1шт.

4

J910248

PLUG

- housing

1шт.

5

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

6

J908095

PLATE

- cover

1шт.

7

J902735

BOLT,M8 - 1.25 x 21 mm

- hex, plate retaining

2шт.

8

J914433

FLYWHEEL

ASSEMBLY - engine

1шт.

9

J905427

GEAR

- ring, flywheel

1шт.

10

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, M12 x 32

8шт.

11

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.
