Запчасти Case IH 6830TA (2-42) - CRANKSHAFT, 6T-830 ENGINE, 6TA-830 ENGINE

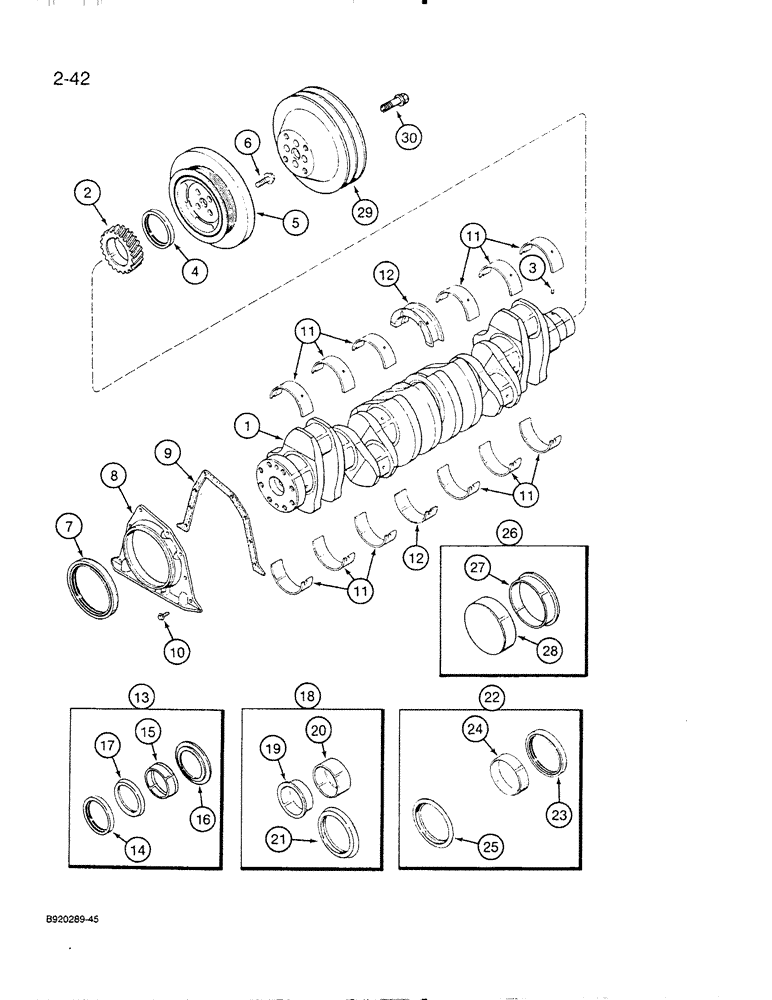

Схема запчастей Case IH 6830TA - (2-42) - CRANKSHAFT, 6T-830 ENGINE, 6TA-830 ENGINE
28
11
18
7
27
21
4
3
1
12
6
20
2
12
19
17
25
26
9
11
24
22
10
11
14
8
16
29
5
11
15
30
13
23

Артикул

Название

Примечание

Количество

JR917443

REMAN-CRANKSHAFT

CRANKSHAFT - engine, remanufactured, (North America only), component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC917443

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft core for credit when using a remanufactured assembly

1шт.

1

J917443

CRANKSHAFT

ASSEMBLY - engine, new

1шт.

2

J918380

GEAR

- crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order item 13 kit

1шт.

5

J914451

PULLEY

- crankshaft, damper, vibration

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

- hex flange, 14 - 2.0 x 35 mm

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, order item 22 kit

1шт.

8

J921042

REAR COVER

RETAINER - seal, rear

1шт.

9

J914301

GASKET

- rear retainer

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

11

A77711

BEARING LINER

KIT - bearing, main, upper and lower, standard

6шт.

11

A77712

BEARING LINER

KIT - bearing, main, upper and lower, 0.25 mm undersize

6шт.

11

A77713

BEARING LINER

KIT - bearing, main, upper and lower, 0.50 mm undersize

6шт.

11

A77714

BEARING LINER

KIT - bearing, main, upper and lower, 0.75 mm undersize

6шт.

11

A77715

BEARING LINER

KIT - bearing, main, upper and lower, 1.0 mm undersize

6шт.

12

A77706

BEARING LINER

KIT - bearing, main thrust, upper and lower, standard

1шт.

12

A77707

SET

KIT - bearing, main thrust, upper and lower, 0.25 mm undersize

1шт.

12

A77708

BEARING LINER

KIT - bearing, main thrust, upper and lower, 0.50 mm undersize

1шт.

12

A77709

BEARING LINER

KIT - bearing, main thrust, upper and lower, 0.75 mm undersize

1шт.

12

A77710

BEARING LINER

KIT - bearing, main thrust, upper and lower, 1.0 mm undersize

1шт.

13

A77790

SEAL KIT

KIT - oil seal, crankshaft front

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

17

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust, front seal

1шт.

18

A77791

GASKET KIT

KIT - wear, crankshaft, front

1шт.

19

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

20

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

21

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust

1шт.

22

J909410

GASKET KIT

KIT - seal, oil, crankshaft rear

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - oil rear

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

26

J906081

SLEEVE

KIT - wear, sleeve, crankshaft rear

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

28

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

29

J906717

PULLEY

- crankshaft, accessory, if used

1шт.

30

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

Used with item 29 Accessory pulley, if used Hex Flg, M12 x 50, 10.9

4шт.
