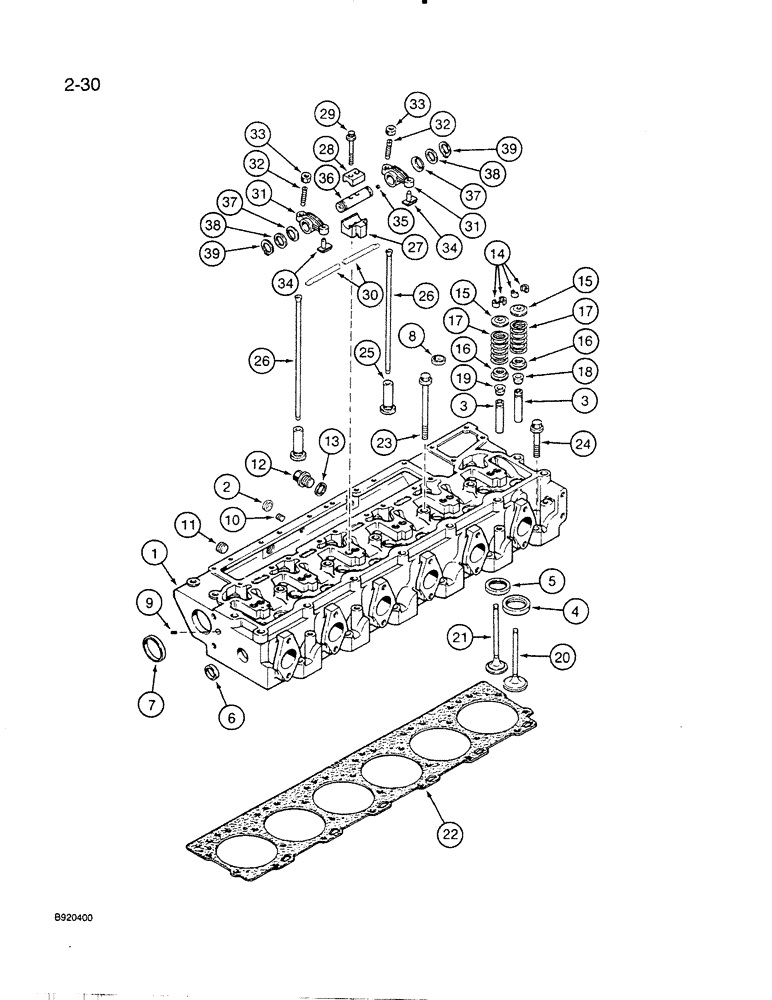

Запчасти Case IH 6830TA (2-30) - CYLINDER HEAD AND VALVE MECHANISM, 6T-830 ENGINE, 6TA-830 ENGINE

JR913111

HEAD

ASSEMBLY - cylinder, remanufactured (North America only), component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC913111

HEAD (CYLINDER)

RETURN NUMBER - use this part number to return head for credit when using a remanufactured assembly

1шт.

J917768

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves

1шт.

1

J919919

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, without valves

1шт.

2

J912900

PLUG

- expansion, 24 mm

1шт.

3

J901187

GUIDE

- stem, valve

12шт.

4

J908830

INSERT

- seat, intake valve

6шт.

5

J904716

INSERT

- seat, exhaust valve

6шт.

6

A77530

PLUG

- expansion

1шт.

7

A77782

PLUG

- expansion, 58 mm OD

2шт.

8

A77590

PLUG

- expansion, 28,7 mm

5шт.

9

A77534

PLUG

- hex, 1/16 - 27 inch PT

1шт.

10

A77428

PLUG

- hex socket pipe, 1/4-18 inch PT

1шт.

11

A77429

PLUG

- hex socket pipe, 1/2 inch PT

2шт.

12

J904386

PLUG

- hex, flange, 22 mm

2шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

2шт.

14

J901177

VALVE

KEEPER - valve

24шт.

15

J907990

RETAINER

- spring

12шт.

16

J901178

GUIDE

- valve spring

12шт.

17

J906412

VALVE SPRING

SPRING, VALVE

12шт.

18

J912550

SEAL

- stem, intake valve

6шт.

19

J912549

SEAL

- stem, exhaust valve

6шт.

20

J915506

VALVE,ENGINE,INLET,S

VALVE - intake

6шт.

21

J902254

VALVE

- exhaust

6шт.

22

J921850

GASKET

- cylinder head

1шт.

23

J917728

BOLT

- hex flange, 14 - 2.0 x 150 mm

14шт.

24

J917729

BOLT,Flng, M14 x 80mm

BOLT - hex flange, 14 - 2.0 x 70 mm

12шт.

25

J907240

TAPPET

- valve, push rod

12шт.

26

J905194

PUSH ROD

ROD - push, rocker arm

12шт.

27

J905870

SUPPORT

- shaft, rocker arm

6шт.

28

J901693

CLAMP

- retaining, shaft

6шт.

29

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

SCREW - 12 point flange, 10 - 1.5 x 65 mm, class 12.9

12шт.

30

J919677

TUBE

- oil, rocker arm

1шт.

31

J901717

ROCKER

ARM ASSEMBLY - rocker

12шт.

32

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting

1шт.

33

425-116

NUT,3/8" - 24, Gr 5

- hex, jam, 3/8 inch NF

1шт.

34

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

35

J907555

PLUG

- rocker arm shaft, 1/4-18 PT

12шт.

36

J906249

SHAFT

- rocker

6шт.

37

J906100

SPRING CUP

WASHER - spring

12шт.

38

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

- flat, end

12шт.

39

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

12шт.
