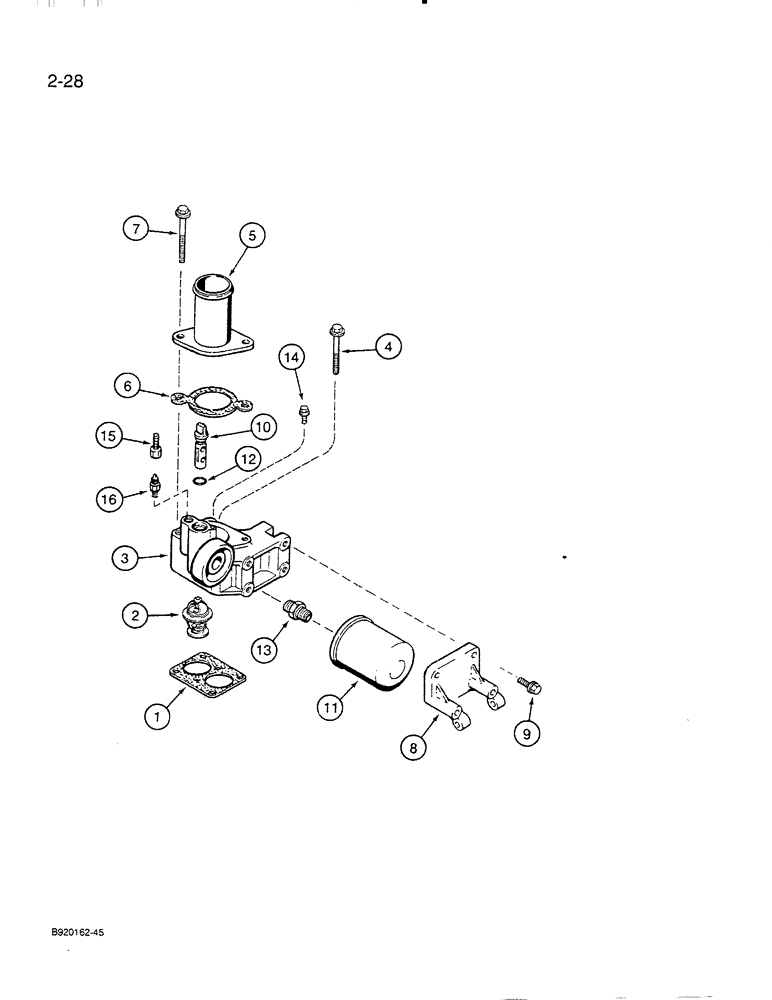

Запчасти Case IH 6830TA (2-28) - THERMOSTAT HOUSING, 6T-830 ENGINE, 6TA-830 ENGINE

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

J907242

THERMOSTAT

- coolant, 83 degree C

2шт.

3

J913708

HOUSING

- thermostat

1шт.

4

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 80 mm

2шт.

5

J912800

CONNECTION

TUBE - outlet

1шт.

6

J918779

GASKET,1.19mm Thk

- outlet tube, water

1шт.

7

845-8095

BOLT,Hvy Hex, M8 x 95mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 95 mm

2шт.

8

J910716

SUPPORT

- mounting, alternator

1шт.

9

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

2шт.

10

J912837

COCK

VALVE - shutoff

1шт.

11

A77544

FILTER

- coolant conditioner

1шт.

12

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

13

A77623

ADAPTER,3/4" - 10 x 11/16" - 16

- fiiter

1шт.

14

845-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 8.8

1шт.

15

J911925

COUPLING

- hose

1шт.

16

J911901

VALVE, CHECK

VALVE - check

1шт.
