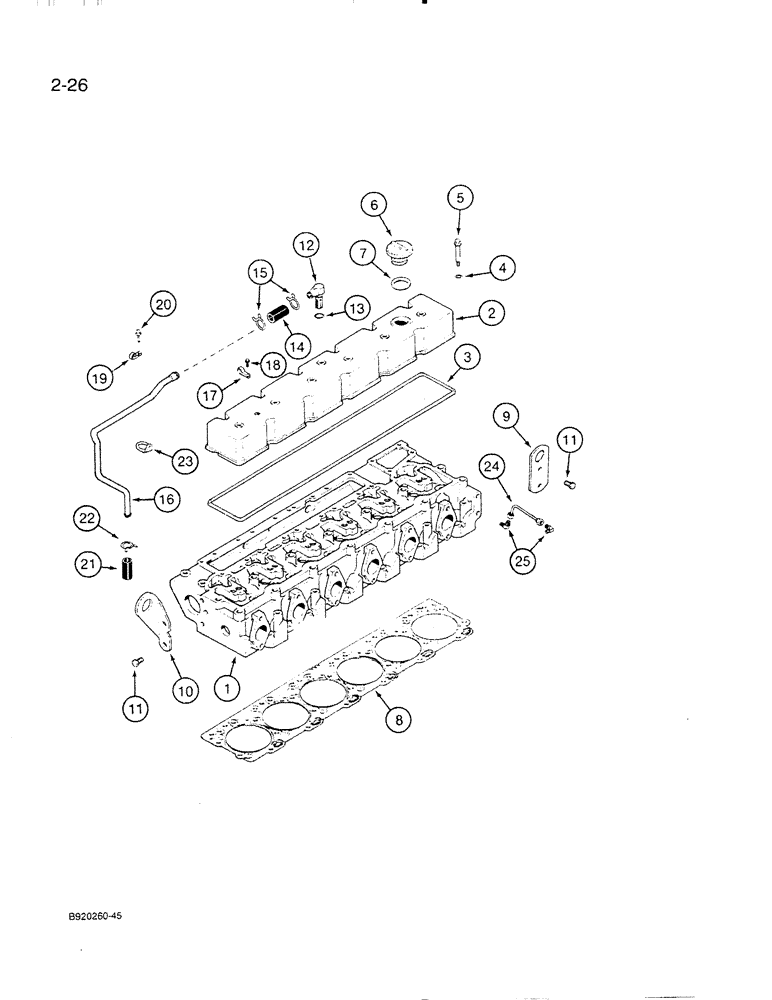

Запчасти Case IH 6830TA (2-26) - CYLINDER HEAD GASKET AND COVER, 6T-830 ENGINE, 6TA-830 ENGINE

1

REF

INSTRUCTION

HEAD ASSEMBLY - cylinder, see page 2-31 for cylinder head options

1шт.

2

J907734

COVER ASSY

COVER - valve

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- sealing

6шт.

5

J916585

BOLT,Hex Flg, M8 x 1.25

BOLT - hex flange, 8 mm special

6шт.

6

J902468

FILLER CAP,Male

CAP - filler, oil

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - seal, cap

1шт.

8

J921850

GASKET

- cylinder head, standard

1шт.

8

J921852

GASKET

- cylinder head, 0.27 mm thicker than standard

1шт.

8

J921853

GASKET

- cylinder head, 0.48 mm thicker than standard

1шт.

9

J907861

LIFTING EYE

BRACKET - lifting, front

1шт.

10

J906440

LIFTING EYE

BRACKET - lifting, rear

1шт.

11

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 25 mm, Grade 10.9

4шт.

12

J920497

ELBOW

CONNECTOR - breather vent

1шт.

13

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

14

J918610

HOSE,19.05 mm ID x 51.00 mm

. , Breather 19.05 mm ID x 51.00 mm

1шт.

15

214-113

HOSE CLAMP,#18, 1 1/8", Spring

CLAMP - spring type, 1-1/8 inch

2шт.

16

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

- breather

1шт.

17

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

Tube, P-type M15.88, M9.52 Bolt Hole

1шт.

18

J912072

SELF-TAP SCREW

SCREW - self tapping, 8 mm - 1.25 x 15 mm

1шт.

19

A77538

CLIP

- tube, P-type

1шт.

20

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 25 mm, Grade 10.9

1шт.

21

A77717

HOSE

- breather, tube end

1шт.

22

J918163

CLIP

CLAMP - hose, spring type

2шт.

23

J909670

CLIP

- hose, P-type

1шт.

24

J918167

TUBE,6.35 mm OD x 117.5 mm L

ASSEMBLY - vent

1шт.

25

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degree, compression, 1/4 tube OD x 1/8 inch PT

2шт.
