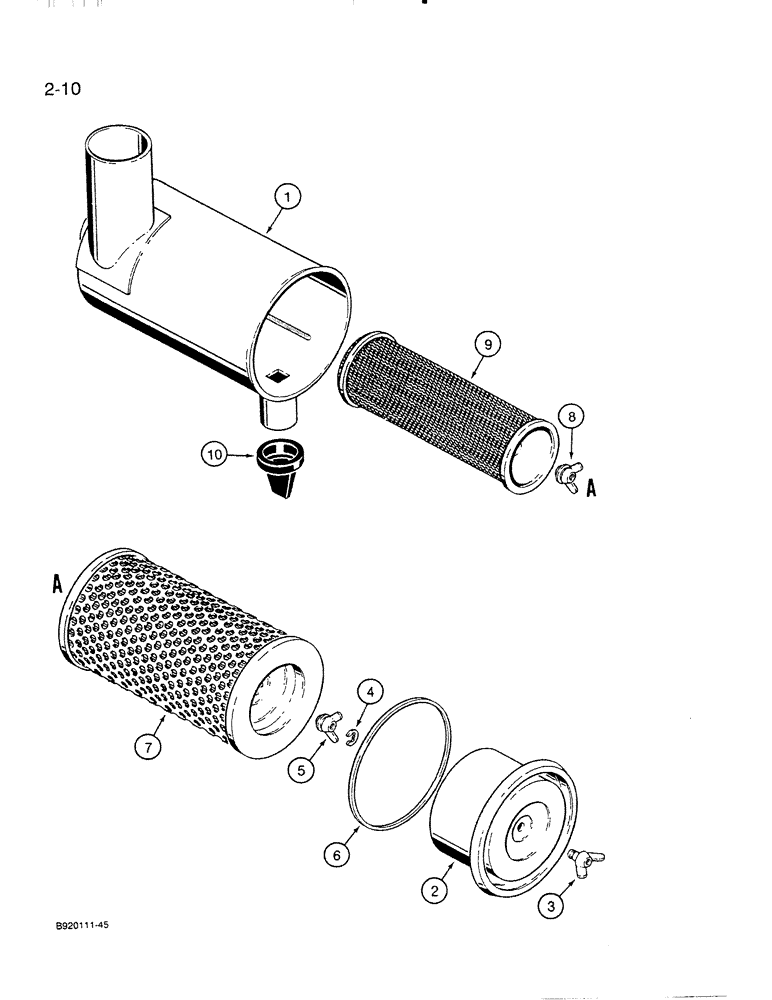

Запчасти Case IH 6830TA (2-10) - AIR CLEANER ASSEMBLY

A184506

FILTER ASSY

CLEANER ASSEMBLY - air, engine

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

2

S117038

COVER

- end

1шт.

3

A47102

WING NUT

- wing, cover retaining

1шт.

4

S117040

CIRCLIP

CLIP - cover wing nut

1шт.

5

A47143

NUT

- wing, outer element

1шт.

6

S117039

GASKET,Square, 8.89mm Thk x 274.57mm ID

- cover

1шт.

7

S238646

AIR FILTER

ELEMENT - outer, primary

1шт.

8

D78354

WING NUT

NUT - wing, inner element

1шт.

9

S238647

AIR FILTER

ELEMENT - secondary, inner

1шт.

10

383734R2

VALVE

- dust, air cleaner

1шт.
