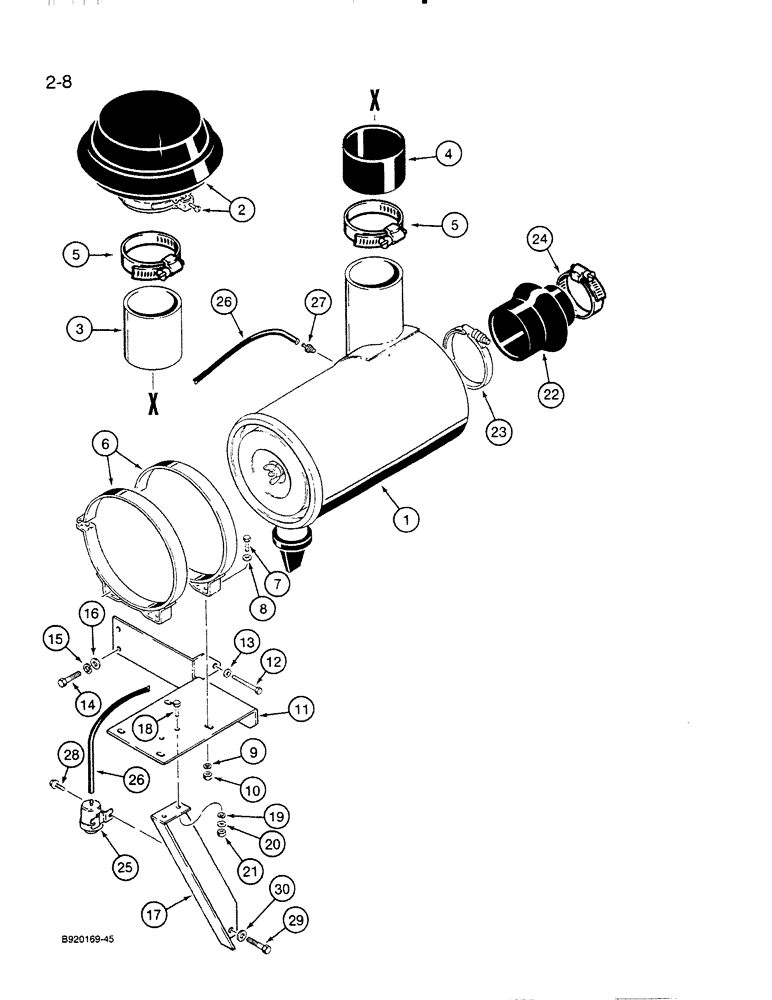

Запчасти Case IH 6830TA (2-08) - AIR INDUCTION SYSTEM

1

A184506

FILTER ASSY

CLEANER ASSEMBLY - air, parts list page 2-11

1шт.

2

54-305

CAP

- air cleaner

1шт.

3

1547938C1

AIR INTAKE TUBE,127 mm OD, 88.9 mm Length

TUBE - inlet, air cleaner, upper

1шт.

4

1547939C1

AIR INTAKE TUBE,127 mm ID, 101.6 mm Length

TUBE - inlet, air cleaner, lower

1шт.

5

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

CLAMP, HOSE, , Adj. #80, 4.62/5.50 Type F Worm

2шт.

6

S238773

CLAMP

- air cleaner

2шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

100679A1

BRACKET

- mounting, air cleaner

1шт.

12

814-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

1шт.

13

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

14

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

3шт.

15

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

17

100732A1

BRACKET

BRACE - air cleaner mounting bracket

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

L124758

INTAKE AIR HOSE,101.60 mm ID, 114.30 mm ID x 152.40 mm

- Air Cleaner - Outlet 101.60 mm ID, 114.30 mm ID x 152.40 mm

1шт.

23

L124802

COLLAR CLAMP

CLAMP - hose, at air cleaner, special

1шт.

24

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - adj, 4-1/16 - 5 inch dia, to turbocharger

1шт.

25

533917C1

GAUGE

INDICATOR - restriction, air

1шт.

26

109767A1

HOSE - 7/64 ID x 26 inch long, air cleaner to air cleaner restriction indicator, cut from 990015C2 bulk hose, see below

1шт.

27

217-208

FITTING

ADAPTER - straight, 1/8 stem end x 1/8 inch PTF

1шт.

28

280-14412

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"

SCREW - self-tapping, hex flange head, No. 8 NC x 3/4 inch

2шт.

29

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

1шт.

30

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

990015C2

HOSE,2.79 mm ID x 7620.00 mm Bulk, SAE J1037 TYPE 2

Use to Make Item 26 2.79 mm ID x 7620.00 mm Bulk, SAE J1037 TYPE 2

1шт.
