(5-04) - GRILLE, HOOD AND PANELS

Запчасти Case IH 6830T (5-04) - GRILLE, HOOD AND PANELS

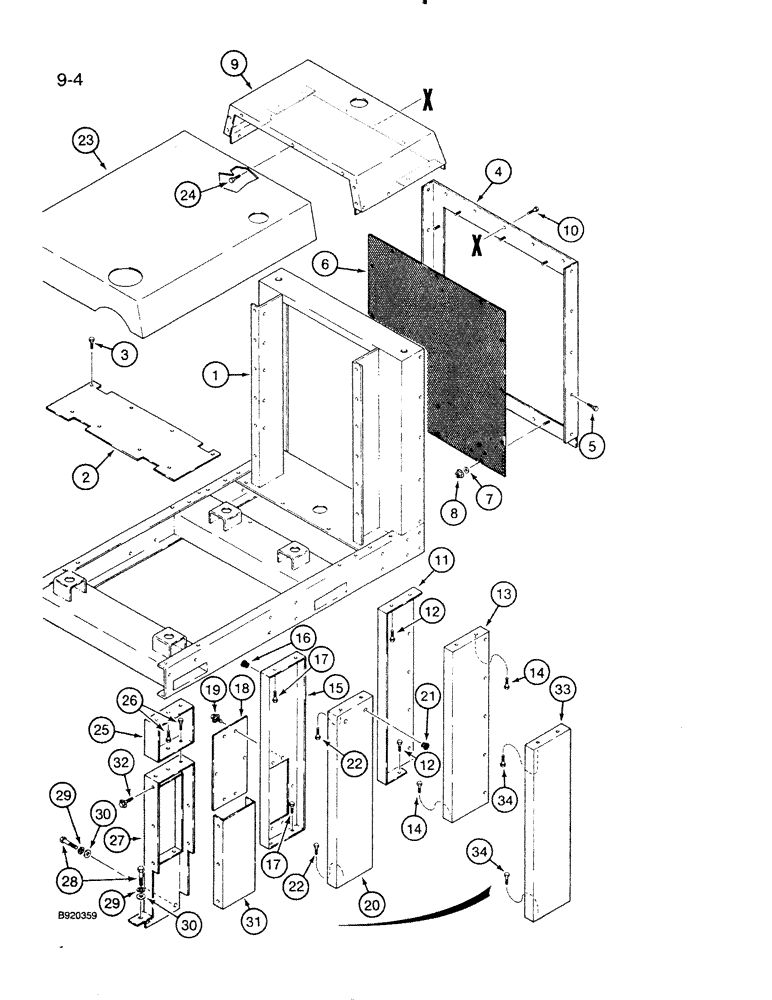

Схема запчастей Case IH 6830T - (5-04) - GRILLE, HOOD AND PANELS
28
34
29
12
16
7
31
8
24
1
22
30
34
19
3
10
17
11
14
22
6
2
25
14
33
5
29
18
23
27
20
26
12
9
15
4
30
32
17
13
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

102132A1

FRAME ASSEMBLY - Irrigation Power Unit, not available for service, shown here for reference purposes only

1шт.

2

102328A1

SHIELD

- air, lower

1шт.

3

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

8шт.

4

102315A1

SHROUD

- front, lower

1шт.

5

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

10шт.

6

102316A1

SCREEN

GRILLE - radiator

1шт.

7

495-31022

WASHER,#10

12шт.

8

231-52409

FLANGE NUT,Flg, USR, #10-32

12шт.

9

102317A1

SHROUD

- front, upper

1шт.

10

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

4шт.

11

102318A1

COVER

PANEL - side, front, left-hand

1шт.

12

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

4шт.

13

102319A1

COVER

PANEL - side, front, right-hand

1шт.

14

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

4шт.

15

102320A1

PANEL

- side, rear, left-hand

1шт.

16

1347659C1

KNOB

- panel, plastic

2шт.

17

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

18

102321A1

PANEL

- access

1шт.

19

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

BOLT, Hex Flg, #10-32 x 1/2

6шт.

20

102322A1

PANEL

- side, rear, right-hand

1шт.

21

1347659C1

KNOB

- panel, plastic

2шт.

22

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

23

102323A1

COVER

HOOD - engine

1шт.

24

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

7шт.

25

102324A1

PANEL

- filler, between hood and rear support

1шт.

26

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

6шт.

27

102325A1

SUPPORT

- hood, rear, left-hand

1шт.

28

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

29

492-11038

LOCK WASHER,3/8"

3шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

31

102326A1

PANEL

COVER - instrument panel, rear

1шт.

32

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

BOLT, Hex Flg, #10-32 x 1/2

6шт.

33

102327A1

ASSEMBLY

SUPPORT - hood, rear, right-hand

1шт.

34

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

4шт.
