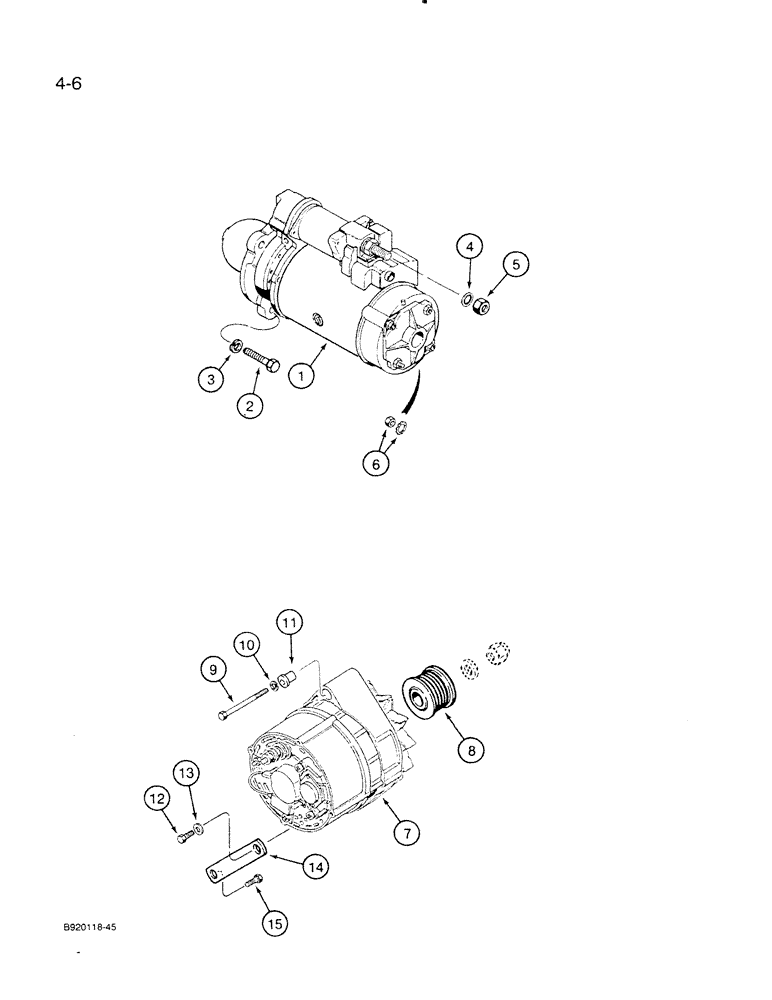

Запчасти Case IH 6830T (4-06) - STARTER AND ALTERNATOR MOUNTING, STARTER MOUNTING

1

A187728

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list pages 4-11 - 4-13

1шт.

1

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

1

AC187728

CORE-STARTER

Return Part Number

1шт.

1

A187728GV

STARTER MOTOR

Value

1шт.

2

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

Bolt, Hex, M12 x 50, 8.8

3шт.

3

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

4

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - internal lock, 1/2 inch

1шт.

5

425-148

JAM NUT,Jam, 1/2"-13, G5

NUT - hex jam, 1/2 inch NC

1шт.

6

193-1000

NUT,Keps, w/LW,#10-32

NUT - hex, with external tooth lock washer, No. 10 NF

1шт.

7

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY - electrical, 65 ampere, parts list page 4-9

1шт.

8

J908560

PULLEY

PULLEY - alternator

1шт.

9

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 100 mm

1шт.

10

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

1шт.

11

J910715

SPACER

SPACER - alternator

1шт.

12

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

SCREW, , Alternator to brace Hex, M8 x 1.25 x 22

1шт.

13

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

WASHER - flat, hardened, brace bolt

1шт.

14

J907673

SUPPORT

BRACE - alternator

1шт.

15

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 30, 8.8

1шт.
