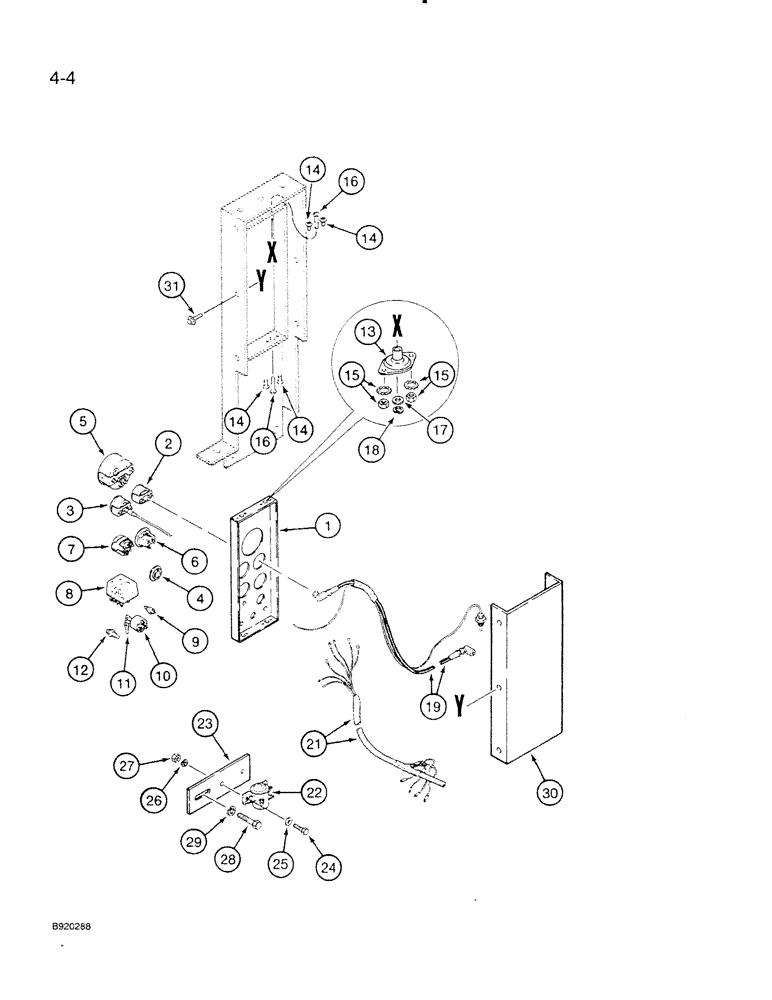

Запчасти Case IH 6830T (4-04) - INSTRUMENT PANEL

104042A1

PANEL

ASSEMBLY - instrument, see page 9-5 for mounting and additional covers

1шт.

1

102782A1

PANEL

- instrument, blank

1шт.

2

1347691C1

GAUGE

- pressure, engine oil

1шт.

3

1347693C1

GAUGE

- coolant temperature

1шт.

4

102783A1

COVER

- instrument panel

1шт.

5

1347690C1

TACHOMETER

- engine speed

1шт.

6

D53047

GAUGE

HOURMETER - engine

1шт.

7

1347695C1

VOLTMETER

GAUGE - volt meter

1шт.

8

102787A1

KIT

SWITCH - magnetic

1шт.

9

1347699C1

BUTTON

- stop, emergency

1шт.

10

1347696C1

SWITCH

- key, engine start

1шт.

11

100861A1

KEY

- engine start switch

1шт.

12

1347753C1

HOLDER

ASSEMBLY - fuse

1шт.

13

1347700C1

MOUNTING PARTS

MOUNT - shock, panel

4шт.

14

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

- machine, pan head Phillips, No. 6 NC x 3/8 inch

8шт.

15

193-1003

NUT,Keps, w/LW,#6-32

- hex, with external tooth lock washer, No. 6 NC

8шт.

16

440-10820

SCREW,Cross Pan Hd, #8-32 x 1 1/4"

- round head machine, No. 8 x 1-1/4 inch

4шт.

17

495-21019

WASHER,#8

4шт.

18

492-11008

LOCK WASHER,#8

Washer, Lock, #8

4шт.

19

1347692C1

TUBE

- pressure, oil

1шт.

20

104045A1

HARNESS

- wiring, instrument panel, internal, not shown

1шт.

21

104046A1

HARNESS

- wiring, instrument panel, external

1шт.

22

1347697C1

RELAY

- starter switch

1шт.

Part of Starter Switch Relay Kit P/N 102784A1

1шт.

23

102412A1

BRACKET

- mounting, relay, this bracket is not included with 104042A1 instrument panel assembly and must be ordered separately to replace the bracket that is included with 104042A1 instrument panel assembly for use in this application

1шт.

24

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

Part of Starter Switch Relay Kit P/N 102784A1

1шт.

25

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

Part of Starter Switch Relay Kit P/N 102784A1

1шт.

26

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Part of Starter Switch Relay Kit P/N 102784A1

1шт.

27

425-20

NUT

- hex, 1/4 inch NC

2шт.

Part of Starter Switch Relay Kit P/N 102784A1

1шт.

28

413-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

- hex, 7/16 NC x 1-3/8 inch

1шт.

Part of Starter Switch Relay Kit P/N 102784A1

1шт.

29

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

Part of Starter Switch Relay Kit P/N 102784A1

1шт.

30

102409A1

COVER

- rear, instrument panel

1шт.

31

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

BOLT, Hex Flg, #10-32 x 1/2

6шт.

102784A1

KIT

- relay, starter switch, Includes: Refs. 22, 24, 25, 26, 27, 28 and 29, also includes (1) relay mounting bracket not used in this application and is replaced by (1) 102412A1 bracket, item 23

1шт.
