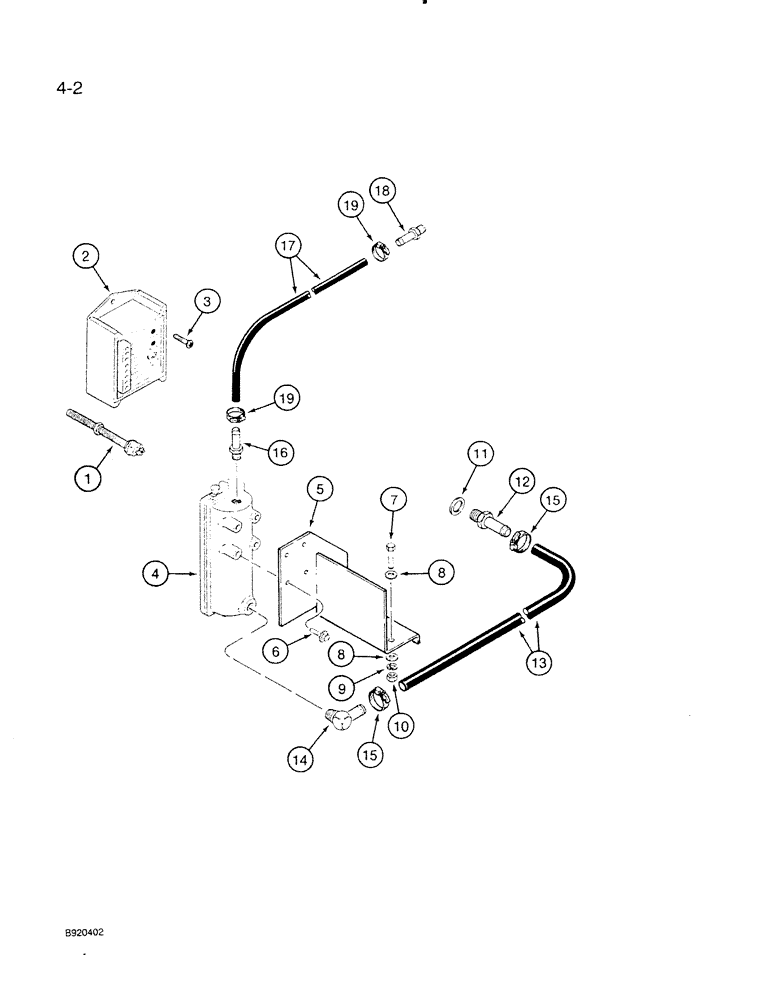

Запчасти Case IH 6830T (4-02) - ENGINE SHUTOFF SWITCHES, SPEED CONTROL

1347739C1

ATTACHMENT

SWITCH ASSEMBLY - overspeed, engine

1шт.

1

1347703C1

SWITCH

- overspeed, engine

1шт.

2

1347704C1

SENDER UNIT

SENDER - pickup, magnetic

1шт.

3

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10-16 x 1/2 inch

2шт.

4

1347701C1

SWITCH ASSY

SWITCH - oil level, high/low, Incl 6, 14, 16

1шт.

5

101871A1

BRACKET

- mounting, switch

1шт.

6

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 7/16 NC x 3/4 inch

4шт.

7

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

THE SMALL RUBBER SHOCK MOUNTS USED WITH REF 10 SWITCH ARE PART# 251203A1. 7/22/96 BW

1шт.

11

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing

1шт.

12

101906A1

FITTING

ADAPTER - straight, 5/8 inch stem end x 22 mm male, special

1шт.

13

102082A1

HOSE,15.90 mm ID x 533.40 mm, SAE 100R6

Oil Gauge Supply, Cut From 73200C2 Bulk Hose, See Below 15.90 mm ID x 533.40 mm, SAE 100R6

1шт.

14

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 90 degree, 5/8 stem end x 1/2 inch PT

1шт.

15

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP, HOSE, #16, .81/1.50 Type F Worm, W/liner

2шт.

16

217-114

FITTING,3/8" Hose x 1/8" NPTF, Barbed

- barbed, 1/8 PT x 3/8 inch

1шт.

17

103001A1

HOSE,9.50 mm ID x 1219.00 mm, SAE 100R6

- Oil gauge vent, Cut from 706670C1 bulk hose, See below 9.50 mm ID x 1219.00 mm, SAE 100R6

1шт.

18

217-114

FITTING,3/8" Hose x 1/8" NPTF, Barbed

- barbed, 1/8 PT x 3/8 inch

1шт.

19

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, #10, 0.56/1.06 Type F Worm

2шт.

73200C2

LARGE HOSE

HOSE - 5/8 inch ID x 50 ft, bulk roll, use to make item 13

1шт.

706670C1

HOSE

- 3/8 inch ID x 50 ft, bulk roll, use to make item 17

1шт.
