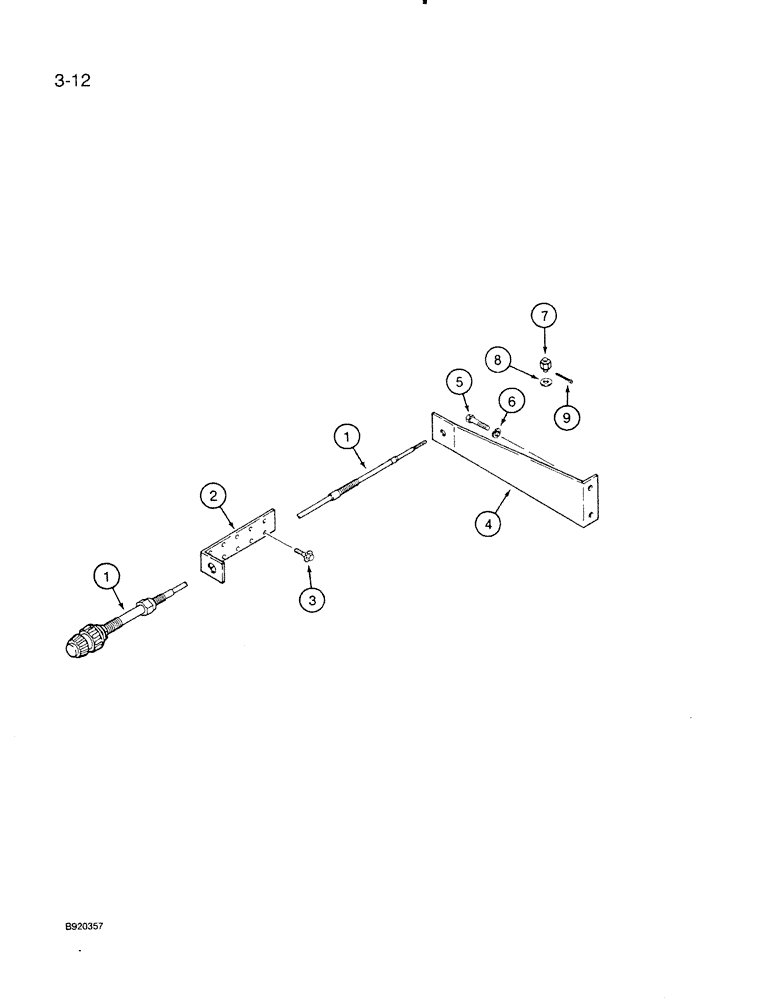

Запчасти Case IH 6830T (3-12) - THROTTLE CONTROL

1

1347680C1

CABLE

ASSEMBLY - control, throttle

1шт.

REF THROTTLE CONTROL: ALSO USED A177326 FOR THREADED CABLE END. PER NOTES IN BOOK. CNS 6/28/96

1шт.

2

102406A1

BRACKET

- mounting, throttle cable

1шт.

3

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

4шт.

4

102408A1

BRACKET

- mounting, throttle cable, at engine

1шт.

5

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

- hex, 8 - 1.25 x 35 mm

2шт.

6

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

7

D92852

PIVOT

- throttle

1шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

9

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.
