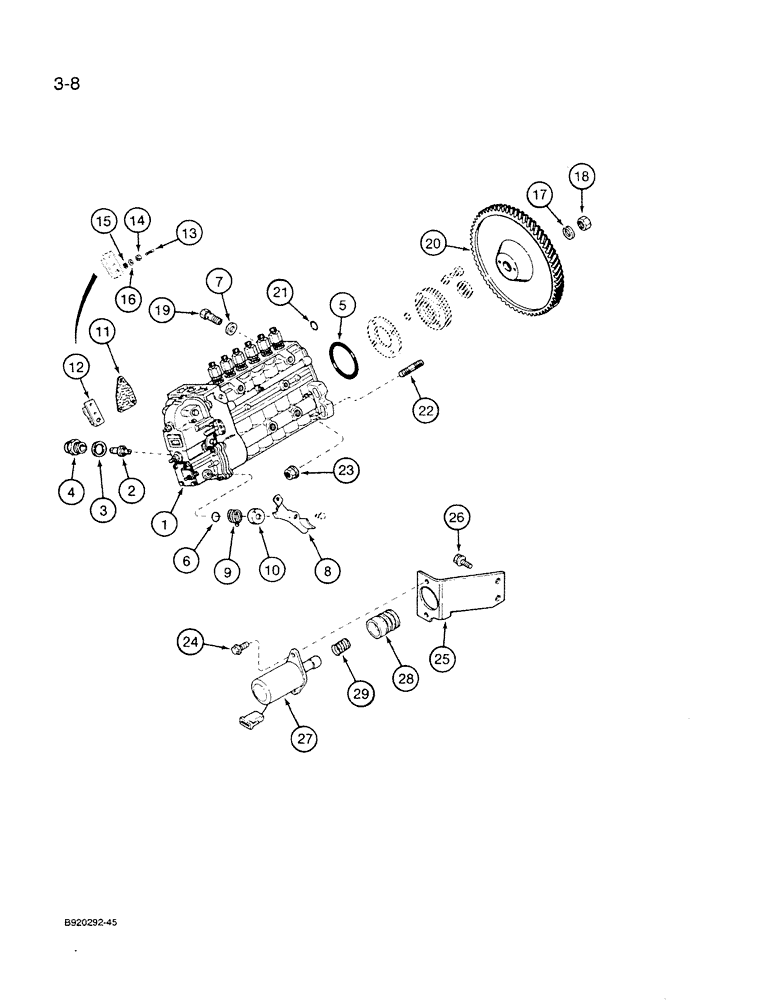

Запчасти Case IH 6830T (3-08) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE

1

J915960

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - injection, fuel, new

1шт.

JR915960

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured, (North America only), component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC915960

CORE-INJECTION PUMP

Return number - For N.A. only

1шт.

JC913339

CORE

RETURN NUMBER - injection pump, use this part number when returning pump core for credit when using a remanufactured assembly

1шт.

JR921143

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP - NA Only

1шт.

JC921143

CORE-INJECTION PUMP

Return number - For N.A. only

1шт.

2

A77720

PIN

PIN - timing

1шт.

3

933222R1

SEALING WASHER,M18 x 22 x 1.5

SEALING WASHER, , Plug M18 x 22 x 1.5

1шт.

4

J912888

PLUG

PLUG - timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

O-RING - seal

1шт.

6

680187C1

O-RING,2.5mm Thk x 9mm ID

O-RING - special sealing

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J910979

LEVER

LEVER - pump shutoff

1шт.

9

J912890

SPRING

SPRING - lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A46322

GASKET

GASKET - pump mounting

1шт.

12

1808728C1

LEVER

LEVER - pump control

1шт.

13

1808822C1

THUMB SCREW,M6 x 26mm

SCREW - lever

1шт.

14

829-1306

NUT,M6, Cl 10

NUT - hex, 6 x 1 mm, Throttle lever

1шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

WASHER, M6

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

A77775

LOCK WASHER

WASHER - lock

1шт.

18

A41852

LOCK NUT

NUT - hex lock

1шт.

19

J912886

VALVE

BOLT - restrictor, banjo

1шт.

20

J912614

GEAR

GEAR - fuel pump

1шт.

21

J916284

O-RING

O-RING - sealing

1шт.

22

J915036

STUD

STUD - mounting, pump, 55 mm (2-5/32 in)

4шт.

23

J902662

FLANGE NUT

NUT - hex flange, 10 mm

4шт.

24

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

25

J916142

SUPPORT

BRACKET - solenoid mounting

1шт.

26

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

27

J918600

SOLENOID

SOLENOID ASSEMBLY - shutoff, fuel

1шт.

28

A77681

BOOT

BOOT - protective, plunger

1шт.

29

A77702

SPRING

SPRING - return, plunger

1шт.
