Запчасти Case IH 6830T (3-06) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE, 6TA-830 ENGINE

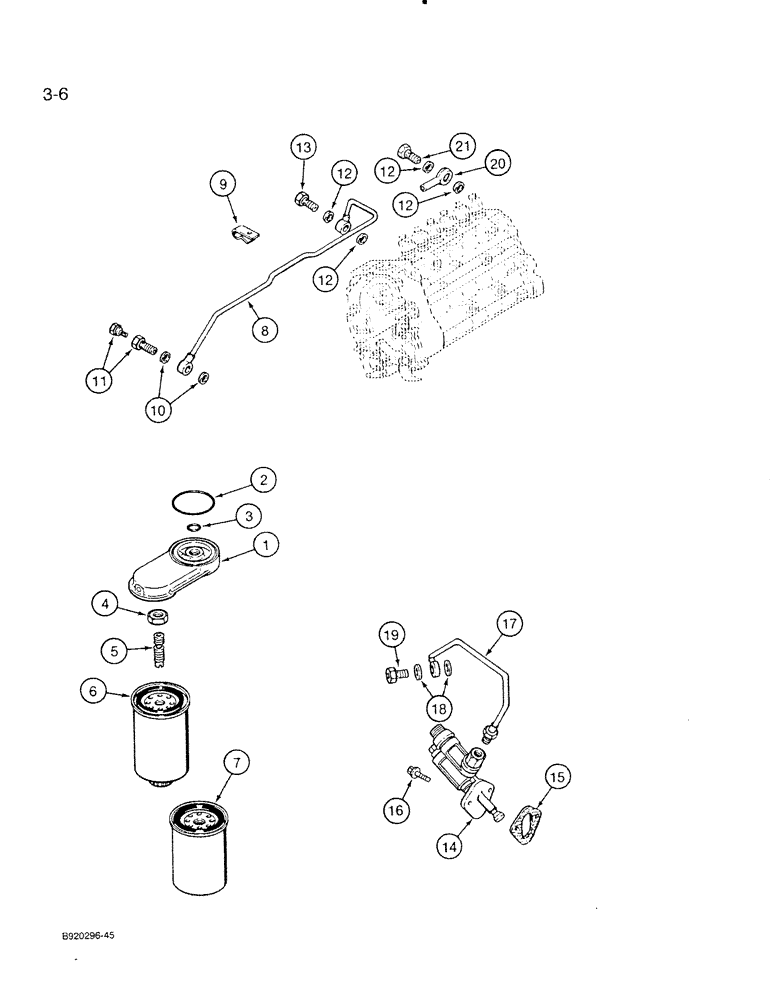

Схема запчастей Case IH 6830T - (3-06) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE, 6TA-830 ENGINE
12
16
12
19
9
2
12
5
7
1
8
14
13
15
12
10
4
11
18
21
20
3
6
17

Артикул

Название

Примечание

Количество

1

J915240

SUPPORT

HEAD - fuel filter

1шт.

2

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, adapter, 14 mm ID

1шт.

4

J903293

JAM NUT

- hex, 16 mm - 2.0

1шт.

5

J903845

BANJO BOLT

ADAPTER - filter, fuel

1шт.

6

J903410

FILTER

- fuel, primary

1шт.

7

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

8

J912923

FUEL TUBE,8 mm OD x 509.8 mm L

TUBE ASSEMBLY - fuel supply, 6T-830

1шт.

8

J912925

FUEL TUBE,8 mm OD x 656.2 mm L

TUBE ASSEMBLY - fuel supply, 6TA-830

1шт.

9

J914711

CLIP

- tube retaining

1шт.

10

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

11

J905860

BANJO BOLT

BOLT - banjo hex, special

1шт.

12

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, 14 x 20 x 1 mm

4шт.

13

J907541

BANJO BOLT

BOLT - connector, banjo

1шт.

14

J917998

PUMP

- transfer, fuel

1шт.

15

J914304

GASKET

- mounting, fuel transfer pump

1шт.

16

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 20 mm

2шт.

17

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE ASSEMBLY - supply

1шт.

18

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

19

J916361

BANJO BOLT

BOLT - banjo connector, M12 x 24

1шт.

20

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

21

J912886

VALVE

BOLT - banjo

1шт.

J920544

GASKET KIT

KIT - seal, fuel transfer pump, includes (1) each of the following: J919441 check valve, J919442 gasket, J919443 O-ring, J919444 O-ring and J920545 O-ring

1шт.

Выбрано товаров: 23
