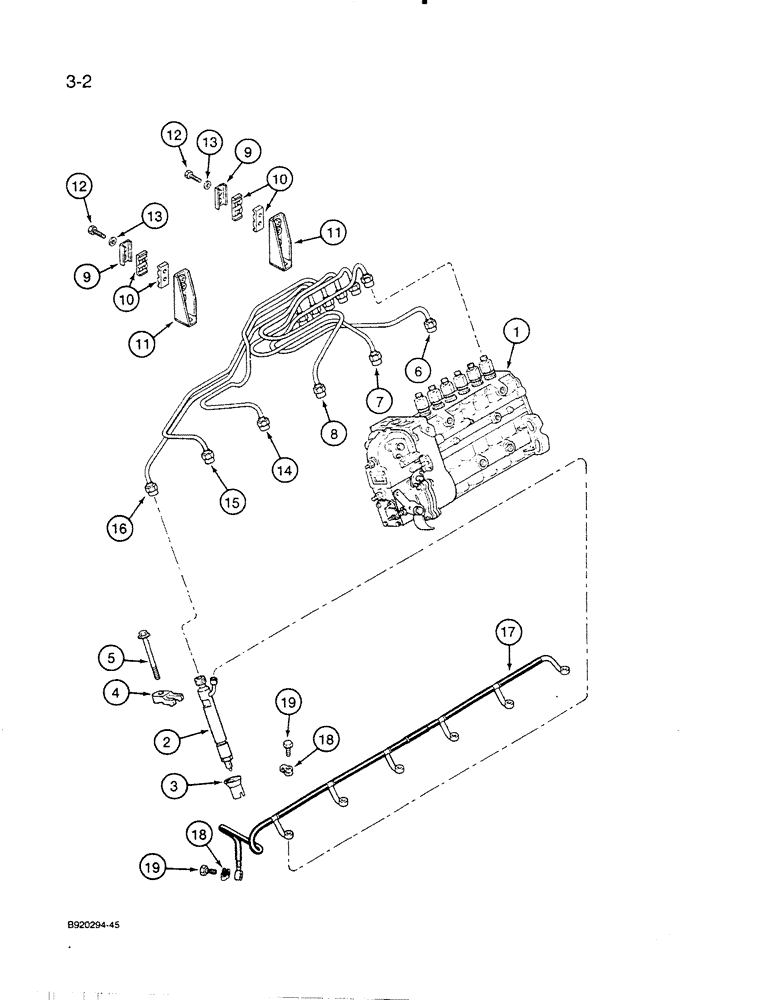

Запчасти Case IH 6830T (3-02) - FUEL INJECTION SYSTEM, 6T-830 ENGINE

1

REF

INSTRUCTION

PUMP ASSEMBLY - injection, fuel, see page 3-9 for fuel injection pump options

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, see page 3-15 for correct assembly and components

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- sleeve, injector

6шт.

4

J910279

CLAMP

- injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 80 mm

6шт.

6

J906783

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 1 cylinder

1шт.

7

J906784

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 2 cylinder

1шт.

8

J906785

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 3 cylinder

1шт.

9

J904519

SUPPORT

BRACE - tube

2шт.

10

J917747

CLAMP

ISOLATOR - tube

4шт.

11

J917776

BRACE

BRACKET - tube

2шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

4шт.

13

J903723

WASHER

- flat, 6 x 10 x 1 mm

4шт.

14

J910521

FUEL TUBE

TUBE - fuel, No, 4 cylinder

1шт.

15

J906787

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No, 5 cylinder

1шт.

16

J906788

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No, 6 cylinder

1шт.

17

J920595

TUBE ASSY.

MANIFOLD - fuel drain

1шт.

18

J903380

SEAL

- connector, banjo

7шт.

19

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

7шт.
