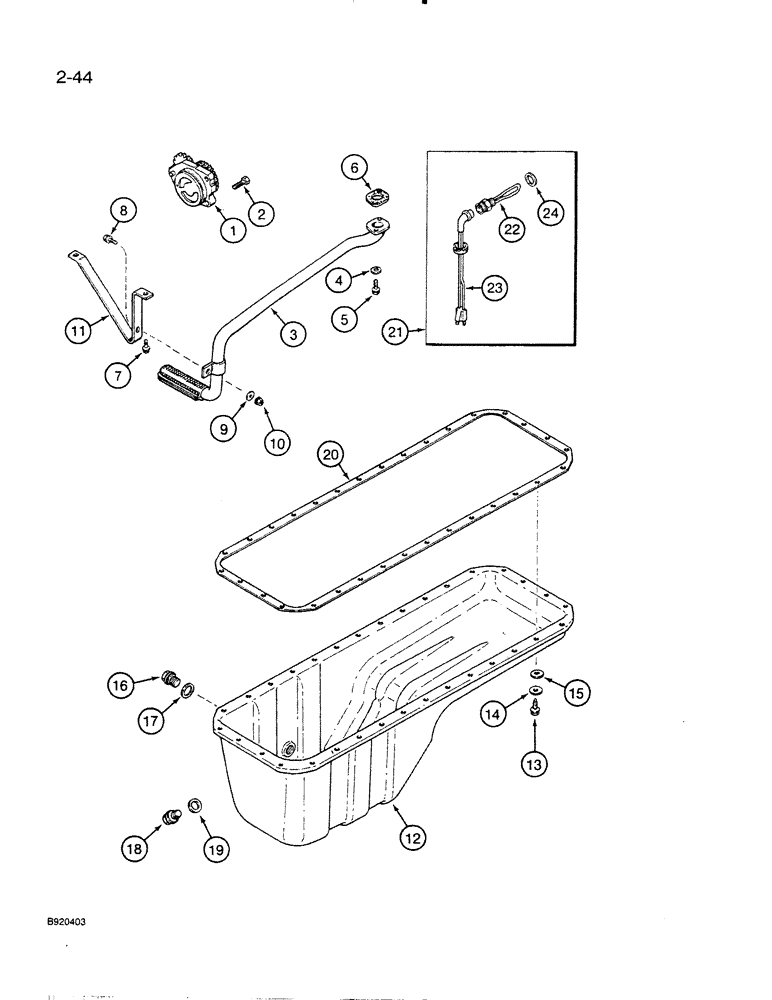

Запчасти Case IH 6830T (2-44) - OIL PUMP AND OIL PAN, 6T-830 ENGINE, 6TA-830 ENGINE

JR921067

REMAN-ENG OIL PUMP

PUMP ASSEMBLY - oil, remanufactured:, (North America only), component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC921067

CORE-ENGINE OIL PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J921067

PUMP, ENGINE OIL

PUMP - engine oil, new

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

3

J910788

TUBE ASSY.

SCREEN - oil suction

1шт.

4

J908738

SPACER

- mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

- hex flange, 6 - 1.00 x 30 mm

2шт.

6

J914302

GASKET

- mounting, oil tube

1шт.

Part of Gasket Kit P/N A77679

1шт.

7

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

8

J901865

FLANGE BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

BOLT - hex, flange, 6 - 1.00 x 20 mm

1шт.

9

J910960

WASHER

- flat, special

1шт.

10

J906216

FLANGE NUT

- hex, flange, 6 mm - 1.00

1шт.

11

J913427

BRACE

- suction tube

1шт.

12

J914013

PAN, ENGINE OIL

PAN - oil, engine

1шт.

13

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, special, 8 - 1.25 x 25 mm

32шт.

14

J910266

LOCK WASHER

- Belleville spring

32шт.

15

J908316

WASHER

- flat, M9 x 16 x 1

32шт.

16

J904386

PLUG

- pipe, heater hole

1шт.

17

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

Part of Gasket Kit P/N A77679

1шт.

18

J900215

PLUG

- drain, oil, if used

1шт.

18

J911638

PLUG,M18 x 1.5

- drain, oil magnetic, if used

1шт.

19

J920773

SEALING WASHER

WASHER - seal, drain plug

1шт.

Part of Gasket Kit P/N A77679

1шт.

20

J914017

OIL PAN GASKET SET

- oil pan

1шт.

Part of Gasket Kit P/N A77679

1шт.

A77679

GASKET KIT

KIT - gasket, oil pan, Includes: Refs. 6, 17, 19 and 20

1шт.

21

A77580

SERVICE KIT

KIT - heater, oil pan

1шт.

22

NSS

NOT SOLD SEPARAT

ELEMENT - heater

1шт.

23

J905113

CABLE

- engine block heater

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.
