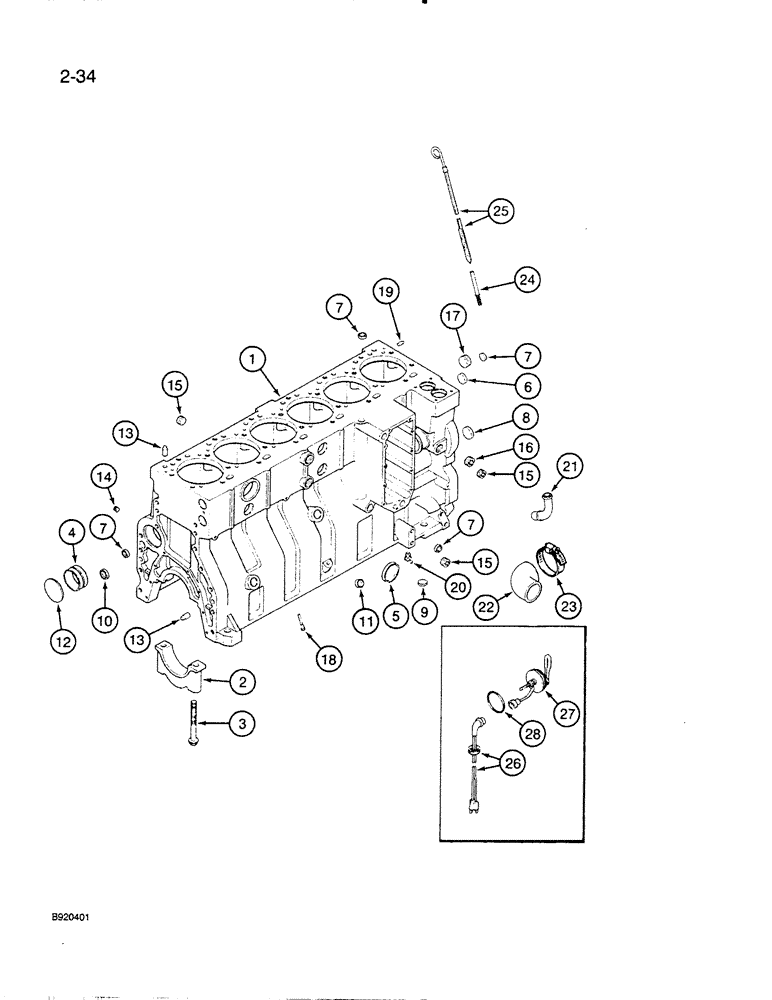

Запчасти Case IH 6830T (2-34) - CYLINDER BLOCK, 6T-830 ENGINE

1989140C1

SPARE PART ENGINE ASSEMBLY - complete, includes all parts except: starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe

1шт.

1989098C1

BASIC ENGINE

ASSEMBLY

1шт.

Includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold and pipe, flywheel and housing, oil fill tube, dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner, turbocharger and aftercooler

1шт.

47466038R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

Includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold and pipe, flywheel and housing, oil fill tube, dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner and turbocharger

1шт.

47466038C

CORE-BASIC ENGINE

Return Part Number

1шт.

J921057

CRANKCASE

BLOCK ASSEMBLY - short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings

1шт.

Order Ref. 10 - 21 (shown on page 2-37) when ordering J921057 or J920036 block assemblies.

1шт.

JR921057

SKELETON ENGINE

Block Assembly, Short, Engine, Remanufactured, Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings, Component Parts Shown On This page Do Not Apply To The Remanufactured Assembly

1шт.

JC921057

CORE-SHORT ENGINE

Return Part Number, Engine Short Block, Use This Part Number To Return Block Core For Credit When Using a Remanufactured Assembly

1шт.

JR919374

CRANKCASE

Block Assembly, Stripped, Engine, Remanufactured

1шт.

JC919374

CORE-ENGINE

Return Part Number, Stripped, Engine, Use This Part Number To Return Block Core For Credit

1шт.

1

J920036

CYLINDER BLOCK

BLOCK ASSEMBLY - stripped, engine, new

1шт.

Order Ref. 10 - 21 (shown on page 2-37) when ordering J921057 or J920036 block assemblies.

1шт.

2

J917313

BEARING CAP

CAP - bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, Hex Flg Hd, M14 x 128

14шт.

4

J901685

BUSHING

BUSHING - camshaft

7шт.

5

A77782

PLUG

PLUG - expansion, 58 mm OD

1шт.

6

A77586

PLUG

PLUG - expansion, 28.9 mm OD

1шт.

7

A77506

PLUG

PLUG - expansion, 21 mm

4шт.

8

J905401

PLUG

PLUG - expansion, 35 mm OD

4шт.

9

A77439

PLUG

PLUG - expansion

1шт.

10

A77530

PLUG

PLUG - expansion, 1-3/16 inch OD

2шт.

12

J901969

PLUG

PLUG - expansion, 69 mm OD

1шт.

11

A77439

PLUG

PLUG - expansion, 22 mm OD

1шт.

12

J901969

PLUG

PLUG - expansion, 69 mm OD

1шт.

13

J901846

PIN,12.01mm OD x 24mm L

PIN - dowel

4шт.

14

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 inch PT

6шт.

15

A77429

PLUG

PLUG - hex socket pipe, 1/4-18 inch PT

4шт.

16

A77505

PLUG

PLUG - hex socket pipe, 1/2-18 inch PT

2шт.

17

A77533

PLUG

PLUG - hex, 1 inch PT

2шт.

18

J919003

NOZZLE INJECTION

NOZZLE - cooling, piston

12шт.

19

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

21

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain, oil

1шт.

20

217-103

COCK, DRAIN

VALVE - 1/4 inch PT, drain, coolant

1шт.

21

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain, oil

1шт.

22

J909389

RADIATOR HOSE,50.08 mm ID, 60.08 mm ID x 39.70 mm

Elbow, Water

1шт.

23

J918521

HOSE CLAMP,59mm - 83mm

CLAMP - adj, 1-3/16 - 2-3/4 inch dia, hose

1шт.

24

J905425

TUBE,9.52 mm OD x 93 mm L

TUBE - dipstick

1шт.

25

J906757

DIPSTICK

DIPSTICK - oil gauge

1шт.

A77595

KIT

KIT - engine block heater

1шт.

26

J905113

CABLE

CABLE - engine block heater

1шт.

27

J918597

HEATER

ELEMENT - heater

1шт.

28

J910517

O-RING

O-RING - heater sealing

1шт.
