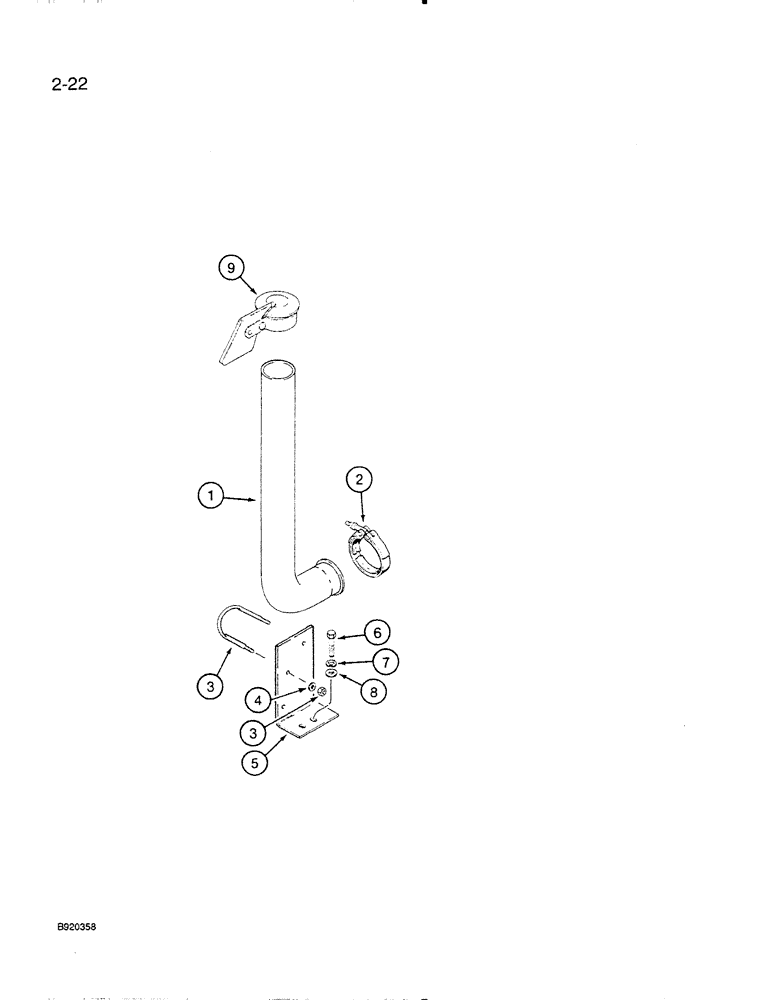

Запчасти Case IH 6830T (2-22) - EXHAUST SYSTEM

1

1998896C1

ELBOW

- exhaust

1шт.

2

A170807

CLAMP,102mm ID

exhaust elbow

1шт.

3

S93558

U-BOLT

- 3/8 inch NC

1шт.

4

231-4116

NUT,3/8"-16, GB

NUT - lock, 3/8 - 16 UNC inch

2шт.

5

A189061

SUPPORT

BRACKET - turbocharger elbow, see page 2-17 or 2-19 for turbocharger systems

1шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

7

892-11010

LOCK WASHER,M10

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

9

A19795

CAP

- rain, exhaust pipe

1шт.
