1
J919199

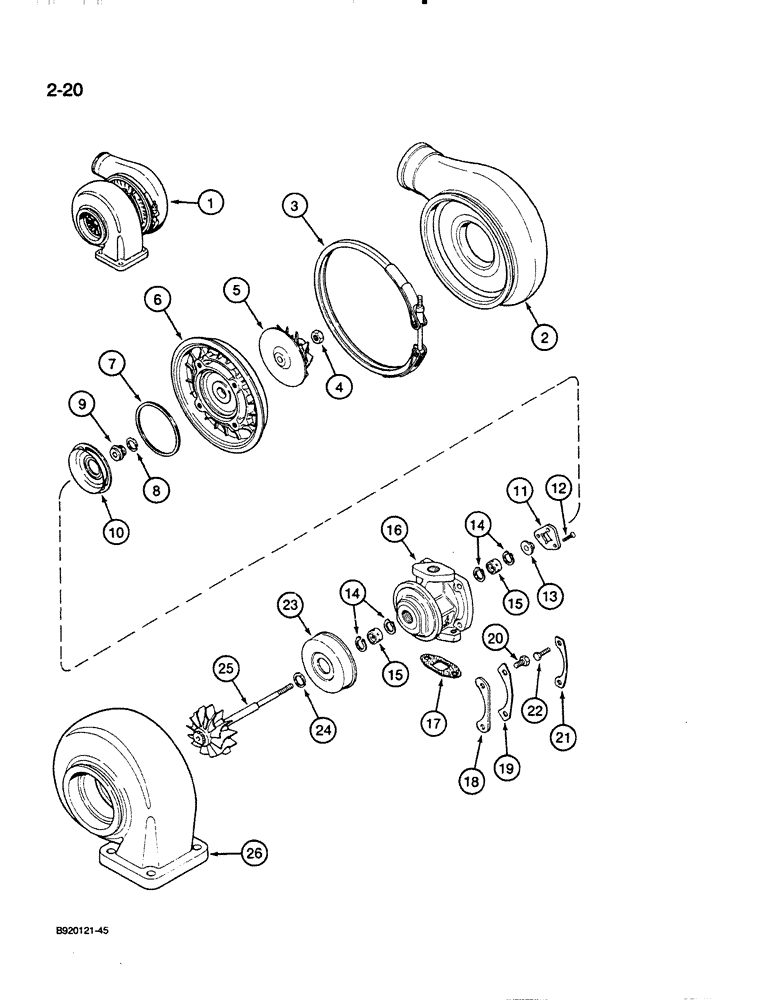

TURBOCHARGER
TURBOCHARGER ASSEMBLY - engine, new
1шт.
1
JR802303
REMAN-TURBOCHARGER
6830T, 6830TA, Power Units, Reman For New P/N J919199
1шт.
1
JC528777
CORE-TURBOCHARGER
Return Part Number
1шт.
1
JR909308
TURBOCHARGER
Turbocharger Assembly engine, remanufactured, component parts shown on this page do not apply to the remanufactured assembly
1шт.
1
JC909308
TURBOCHARGER
Return Part Number turbocharger, use this part number to return turbocharger core for credit when using a remanufactured assembly
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING - compressor
1шт.
3
NSS
NOT SOLD SEPARAT
CLAMP - housing
1шт.
4
NSS
NOT SOLD SEPARAT
NUT - hex lock
1шт.
Part of Seal Turbocharger Kit P/N J904772
1шт.
5
NSS
NOT SOLD SEPARAT
ROTOR ASSEMBLY - turbocharger
1шт.
6
NSS
NOT SOLD SEPARAT
DIFFUSER - compressor
1шт.
7
NSS
NOT SOLD SEPARAT
SEAL - diffuser
1шт.
8
NSS
NOT SOLD SEPARAT
SEAL - split ring
1шт.
9
NSS
NOT SOLD SEPARAT
SLINGER - oil
1шт.
10
NSS
NOT SOLD SEPARAT
BAFFLE - oil
1шт.
11
NSS
NOT SOLD SEPARAT
BEARING - thrust
1шт.
Part of Seal Turbocharger Kit P/N J904772
1шт.
12
NSS
NOT SOLD SEPARAT
SCREW - flat head slotted
3шт.
Part of Seal Turbocharger Kit P/N J904772
1шт.
13
NSS
NOT SOLD SEPARAT
COLLAR - thrust
1шт.
14
NSS
NOT SOLD SEPARAT
RING - snap
4шт.
Part of Seal Turbocharger Kit P/N J904772
1шт.
15
NSS
NOT SOLD SEPARAT
BEARING - shaft, impeller
2шт.
Part of Seal Turbocharger Kit P/N J904772
1шт.
16
NSS
NOT SOLD SEPARAT
HOUSING - bearing, turbine
1шт.
17
NSS
NOT SOLD SEPARAT
GASKET - oil drain
1шт.
18
NSS
NOT SOLD SEPARAT
PLATE - clamp, turbine housing
2шт.
19
NSS
NOT SOLD SEPARAT
PLATE - lock, turbine housing
2шт.
Part of Seal Turbocharger Kit P/N J904772
1шт.
20
NSS
NOT SOLD SEPARAT
BOLT - hex, retainer
4шт.
Part of Seal Turbocharger Kit P/N J904772
1шт.
21
NSS
NOT SOLD SEPARAT
PLATE - lock, turbine
2шт.
22
NSS
NOT SOLD SEPARAT
BOLT ASSEMBLY - hex lock
4шт.
Part of Seal Turbocharger Kit P/N J904772
1шт.
23
NSS
NOT SOLD SEPARAT
SHIELD - heat, turbine
1шт.
24
NSS
NOT SOLD SEPARAT
SEAL - ring, turbine
1шт.
Part of Seal Turbocharger Kit P/N J904772
1шт.
25
NSS
NOT SOLD SEPARAT
ROTOR - turbocharger
1шт.
26
NSS
NOT SOLD SEPARAT
HOUSING - turbine
1шт.
J904772
PACKAGE, REPAIR
KIT - seal, turbocharger, Includes: Refs. 4, 11, 12, 14, 15, 19, 20, 22 and 24
1шт.
