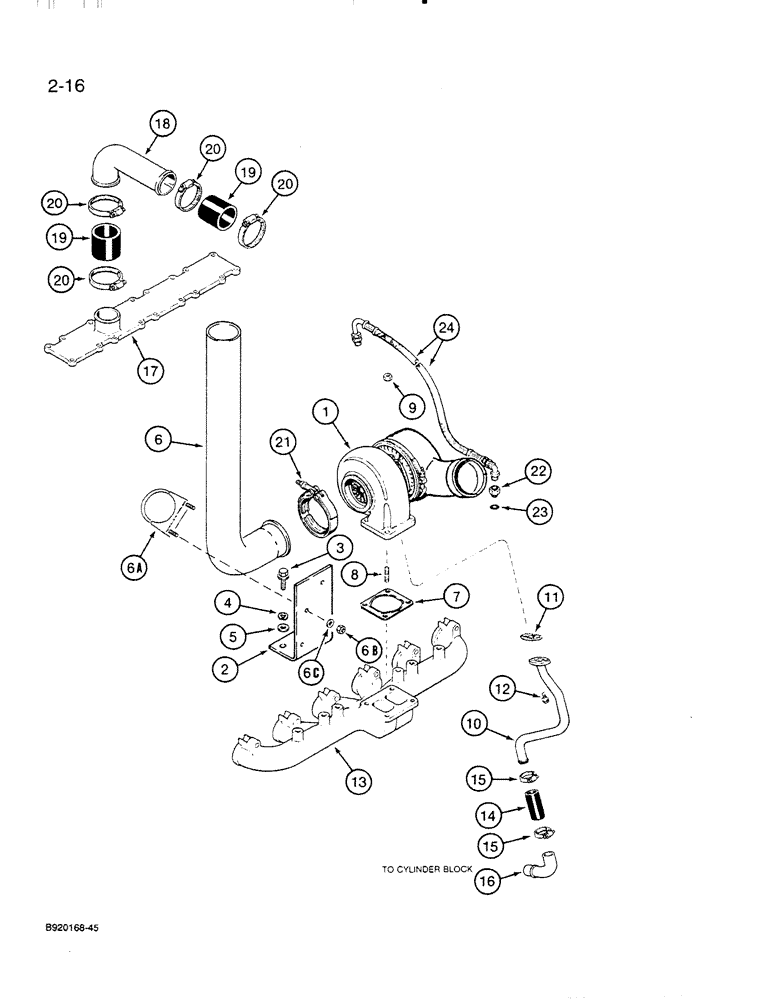

Запчасти Case IH 6830T (2-16) - TURBOCHARGER SYSTEM, 6T-830 ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, see page 2-21 for turbocharger options

1шт.

2

84569C5

ANGLE

BRACKET - turbocharger pipe

1шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

4

892-11010

LOCK WASHER,M10

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

6

1998896C1

ELBOW

- exhaust

1шт.

6a

S93558

U-BOLT

- 3/8 inch NC

1шт.

6b

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

6c

231-4116

NUT,3/8"-16, GB

NUT - lock, 3/8 - 16 UNC inch

2шт.

7

J911941

GASKET

- mounting, turbocharger

1шт.

8

J905417

STUD

- turbocharger mounting 10 mm x 40 mm

4шт.

9

J901961

NUT

- hex, 10 mm - 1.25

4шт.

10

J917936

TUBE,22.22 mm OD x 340.6, 108.7 mm L

- drain, oil

1шт.

11

J914388

GASKET

- turbocharger drain tube

1шт.

12

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm

2шт.

13

J906741

MANIFOLD

- exhaust, see page 2-13

1шт.

14

J903745

LARGE HOSE

HOSE - turbocharger oil drain

1шт.

15

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

16

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbo drain

1шт.

17

J906737

COVER ASSY

COVER - manifold, intake, see page 2-13

1шт.

18

J906742

TUBE,63.5 mm OD

- air, crossover

1шт.

19

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube

2шт.

20

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch dia

4шт.

21

A170807

CLAMP,102mm ID

, Serial Range: elbow-turbocharger

1шт.

22

J919687

HYD CONNECTOR

CONNECTOR ASSEMBLY - female, supply hose

2шт.

23

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

2шт.

24

J913759

HOSE

Turbocharger Oil Supply

1шт.
