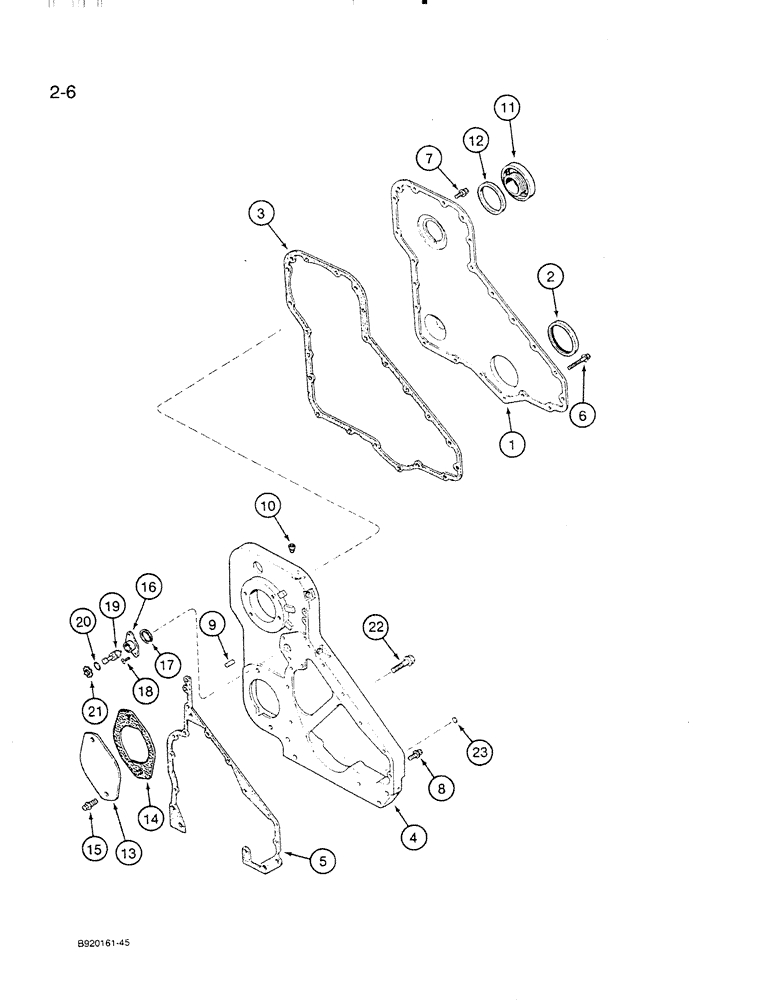

Запчасти Case IH 6830T (2-06) - FRONT GEAR COVER, 6T-830 ENGINE, 6TA-830 ENGINE

1

J916193

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, order A77790 seal kit, see page 2-43, items 13 - 17

1шт.

3

J917780

GASKET,0.98mm Thk

GASKET - cover, gear

1шт.

4

J914945

MOTOR HOUSING

HOUSING - gear

1шт.

5

J914303

SEAL

GASKET - housing, front gear

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 50 mm

6шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm

17шт.

8

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 20 mm

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

10

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

6шт.

11

J903463

PLUG,M63 x 5

- access, front

1шт.

12

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

13

J914868

COVER

PLATE - accessory drive cover

1шт.

14

J919601

GASKET

- cover plate, accessory

1шт.

15

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 25 mm, Grade 10.9

2шт.

16

J919683

HOUSING

- timing pin

1шт.

17

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING, rectangular

1шт.

18

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

19

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

20

J913994

O-RING

- sealing, timing pin

1шт.

21

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

22

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

4шт.

23

A77552

PLUG

- expansion, lower dowel hole, 29/64 inch diameter

1шт.
