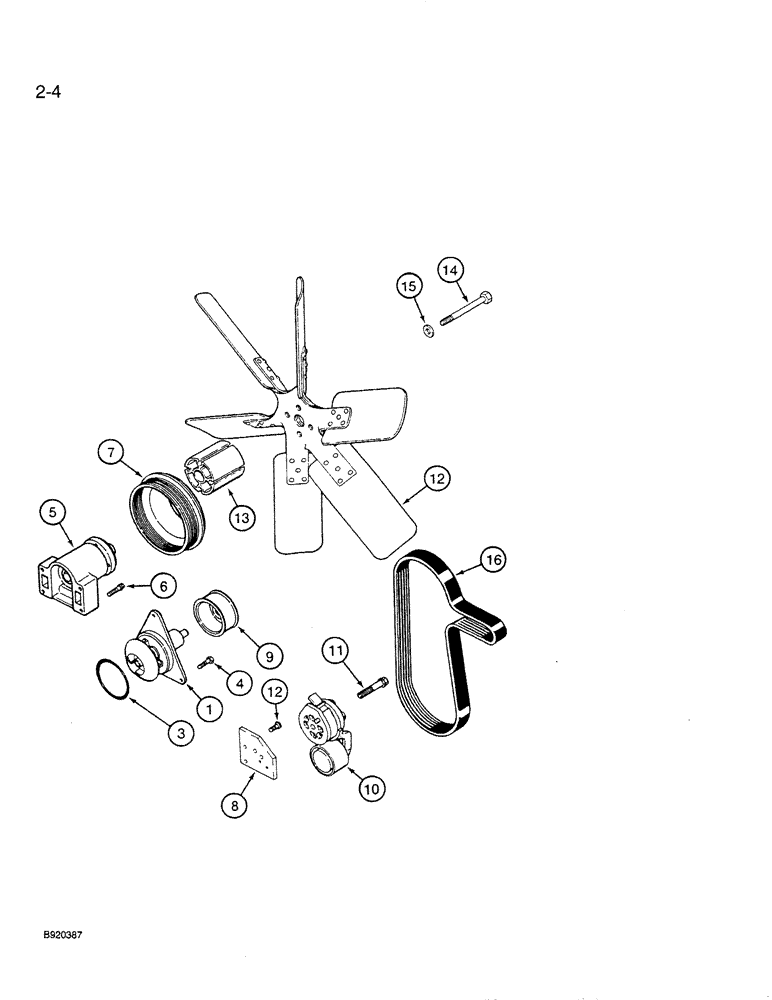

Запчасти Case IH 6830T (2-04) - WATER PUMP AND FAN, 6T-830 ENGINE, 6TA-830 ENGINE

AR77579

PUMP, WATER

PUMP - water, remanufactured (North America only), component parts on this page do not apply to the remanufactured assembly

1шт.

J800976R

REMAN-WATER PUMP

6830T, 6830TA, Both 6T-830 ENGINE, 6TA-830 ENGINE, Reman for New P/N AR77579

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

AC77579

CORE-WATER PUMP

RETURN NUMBER - water pump, use this part number to return pump core for credit when using a remanufactured assembly

1шт.

A77704

PUMP, WATER

KIT - water pump

1шт.

J800976R

REMAN-WATER PUMP

6830T, 6830TA, Both 6T-830 ENGINE, 6TA-830 ENGINE, Reman for New P/N A77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, water pump

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

5

J910738

SUPPORT ASSY.

SUPPORT - fan

1шт.

Service part for fer #5, are:

1шт.

1 ea. J910739 ball brg.

1шт.

1 ea. J911924 fan hub.

1шт.

1 ea. J907769 bolt. Branko (t/s 27-95C)

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 50 mm

4шт.

7

J914462

PULLEY,163mm OD

- fan, 165 mm diameter

1шт.

8

J911473

BRACKET

- mounting, tensioner

1шт.

9

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head hex socket, 8 mm - 1.25 x 25 mm

2шт.

10

J914086

BELT TENSIONER

TENSIONER - belt

1шт.

11

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- heavy hex flange, 10 mm - 1.5 x 70 mm, Grade 10.9 (Replaces 854-10070)

1шт.

12

A184979

FAN

- engine

1шт.

13

A184514

SPACER - fan, 80 mm

1шт.

14

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

- hex, 10 mm - 1.5 x 110 mm

4шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

16

J911571

V-BELT,27.92mm W x 1524mm L, 8 Ribs

Fan 3.56 mm W x 1524.00 mm L, 8 Ribs

1шт.
