Запчасти Case IH 6591TA (2-14) - WATER PUMP SYSTEM, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE

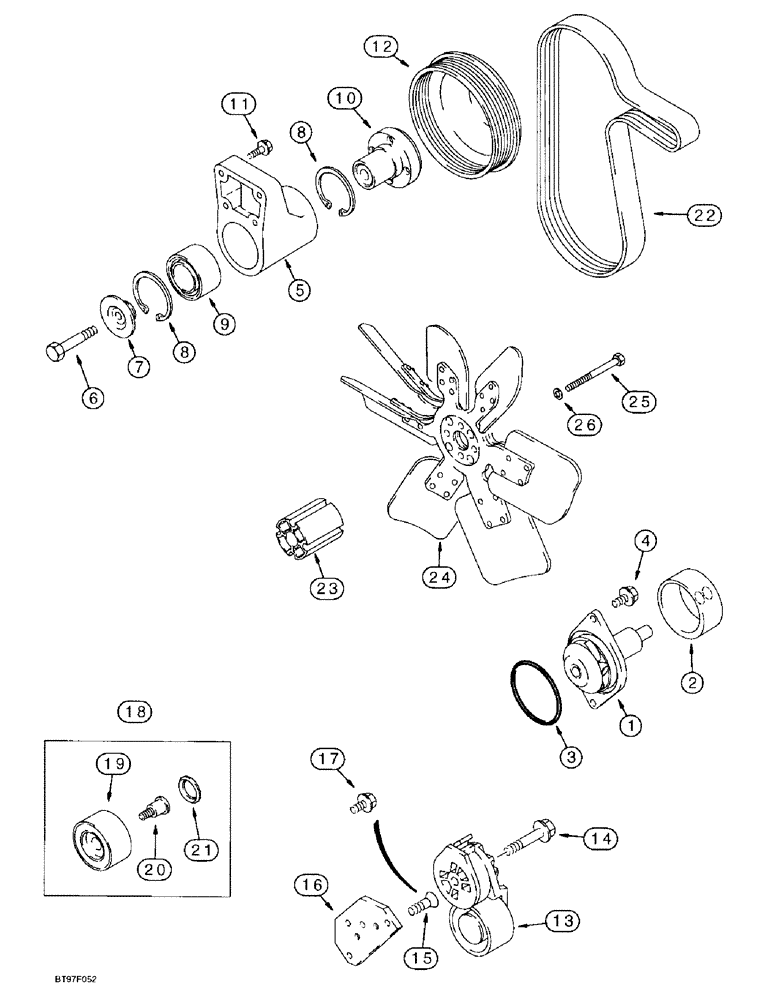

Схема запчастей Case IH 6591TA - (2-14) - WATER PUMP SYSTEM, 6T-590 AND 6TA-590 EMISSIONS CERTIFIED ENGINE
18
10
16
2
6
12
20
19
8
23
1
22
7
25
4
15
9
13
8
24
17
26
21
3
5
14
11

Артикул

Название

Примечание

Количество

J802358

PUMP, WATER

KIT - water pump

1шт.

J286278R

REMAN-WATER PUMP

6591T, 6591TA

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J913433

BRACKET

- fan pulley

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

- hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

- fan hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING - ball

1шт.

10

J911924

HUB

- fan

1шт.

11

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8, Fan bracket to cylinder block

4шт.

12

J914462

PULLEY,163mm OD

- fan, 1.1 to 1 ratio

1шт.

13

J918944

BELT TENSIONER

TENSIONER - belt

1шт.

14

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9, Belt tensioner mounting

1шт.

15

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, torx, special, 8 - 1.25 x 25 mm

1шт.

16

J925207

SUPPORT

BRACKET - belt tensioner

1шт.

17

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

1шт.

18

A77817

KIT

KIT - belt tensioner pulley, used to replace pulley of J918944 belt tensioner, item 13

1шт.

19

NSS

NOT SOLD SEPARAT

PULLEY - belt tensioner

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - pulley

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - bolt

1шт.

22

J911557

V-BELT,27.92mm W x 1422.4mm L, 8 Ribs

Fan 3.56 mm W x 1422.40 mm L, 8 Ribs

1шт.

23

A189318

SPACER

- fan mounting

1шт.

24

280211A1

FAN

- engine

1шт.

25

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

- hex, 10 - 1.5 x 120 mm

4шт.

26

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

Выбрано товаров: 29
