Запчасти Case IH 6591TA (2-06) - AIR INDUCTION SYSTEM

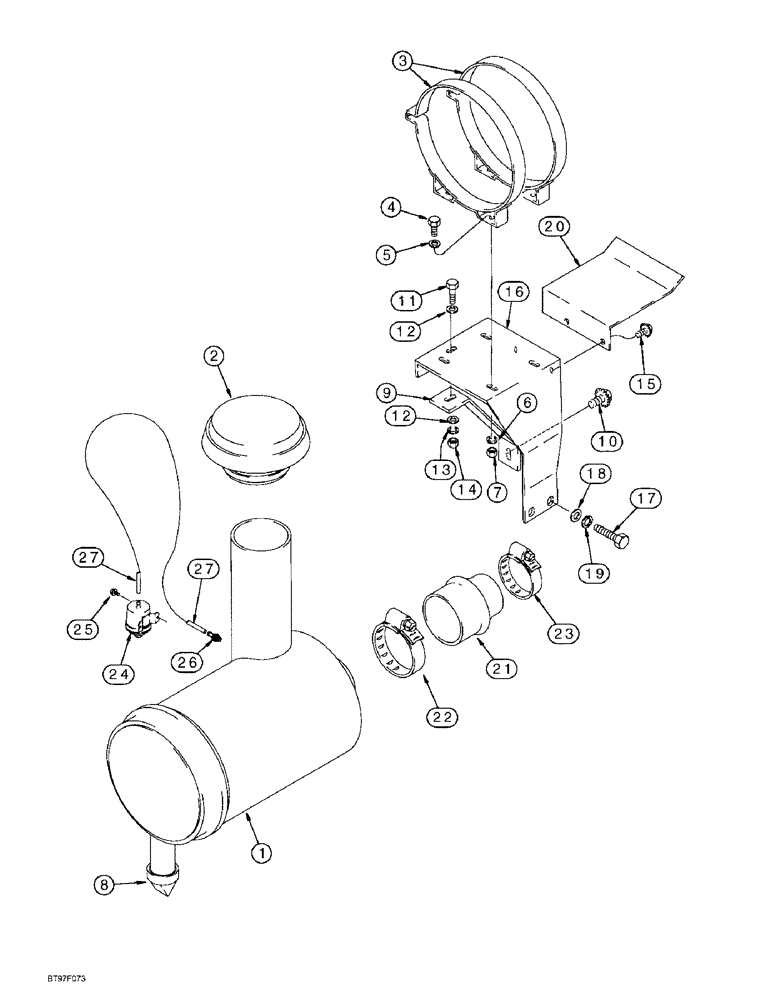

Схема запчастей Case IH 6591TA - (2-06) - AIR INDUCTION SYSTEM
16
20
26
6
8
5
27
12
13
15
23
22
25
19
21
12
2
18
10
1
4
11
27
3
17
9
7
24
14

Артикул

Название

Примечание

Количество

1

247825A1

AIR CLEANER

CLEANER ASSEMBLY - air, parts list page 2-9

1шт.

2

54-305

CAP

- air cleaner

1шт.

3

S238773

CLAMP

BAND - air cleaner mounting

2шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

POPPET, VALVE, Dust

1шт.

9

277898A1

BRACE

BRACKET - air cleaner support

1шт.

10

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

Air cleaner support bracket to cylinder head Hex Flg, M12 x 25, 8.8

1шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, air cleaner support bracket to air cleaner mounting bracket

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

16

277901A1

BRACKET

- mounting, air cleaner to flywheel housing (Replaces 227901A1)

1шт.

17

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

Bracket to upper side holes to flywheel housing Hex, M12 x 35, 8.8, Full Thd

2шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

19

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

20

277892A1

SHIELD

- heat, air cleaner

1шт.

21

L124758

INTAKE AIR HOSE,101.60 mm ID, 114.30 mm ID x 152.40 mm

- Air Cleaner - Reducer 101.60 mm ID, 114.30 mm ID x 152.40 mm

1шт.

22

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, HOSE, , Adj., Air cleaner end of reducer hose #72, 4.06/5.00 Type F Worm

1шт.

23

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

CLAMP - adj, 3-3/4 - 4-5/8 inch dia, turbo end of reducer hose

1шт.

24

533917C1

GAUGE

INDICATOR - air restriction

1шт.

25

280-14412

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"

SCREW - self-tapping, hex washer head, No. 8 NC x 3/4 inch

2шт.

26

217-208

FITTING

ADAPTER - straight, 1/8 stem end x 1/8 inch PT, outlet of air cleaner

1шт.

27

281722A1

HOSE - 381 mm (15 inch) long, cut from 990015C1 bulk hose, see below, air cleaner to restriction indicator

1шт.

990015C1

LARGE HOSE

HOSE - bulk, 2.5 (3/32) ID x 7620 mm (300 inch) long

1шт.
