Запчасти Case IH 6591TA (9-02) - FRAME, RADIATOR SUPPORT AND ENGINE MOUNTS

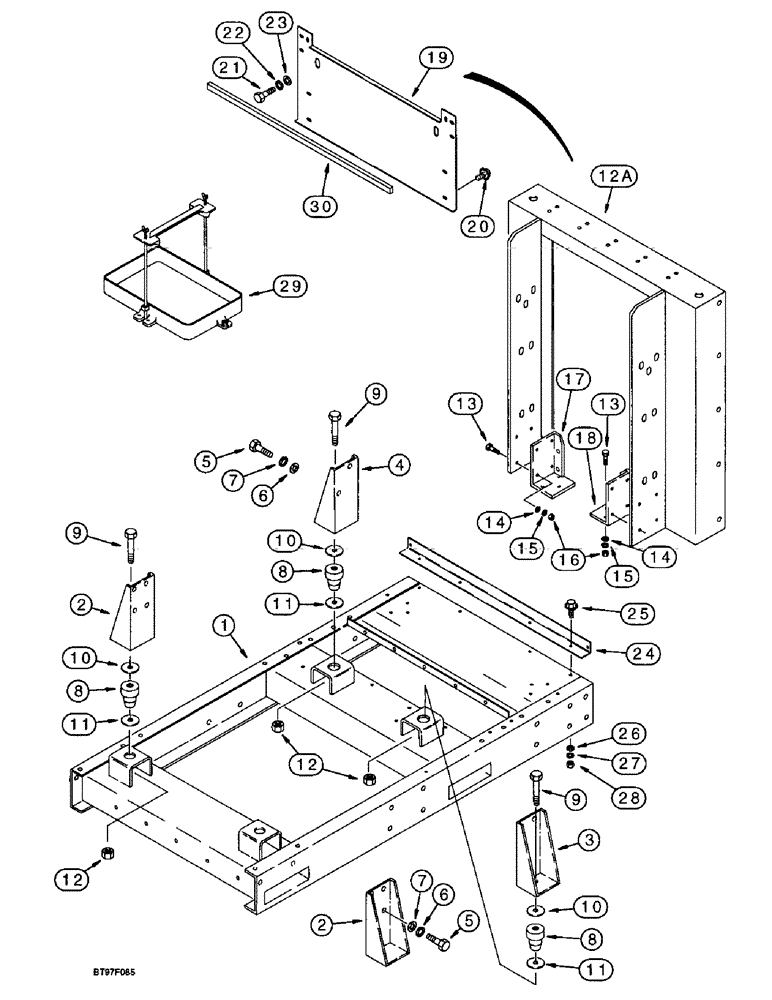

Схема запчастей Case IH 6591TA - (9-02) - FRAME, RADIATOR SUPPORT AND ENGINE MOUNTS
10
20
16
12
28
4
15
29
10
11
27
6
5
26
12
14
25
7
13
9
13
8
9
15
18
9
14
22
30
5
7
24
11
11
3
21
10
12a
2
2
8
6
17
23
19
8
11

Артикул

Название

Примечание

Количество

1

279622A1

FRAME

ASSEMBLY - Irrigation Power Unit

1шт.

2

1347652C1

BRACKET

- mounting, engine rear

2шт.

3

1347647C1

BRACKET

- mounting, engine front right-hand

1шт.

4

1347651C1

BRACKET

- mounting, engine front left-hand

1шт.

5

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

12шт.

6

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

12шт.

7

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

12шт.

8

D133316

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR - engine mount, rubber

4шт.

9

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

4шт.

10

281681A1

WASHER - flat, special

4шт.

11

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- flat, special

4шт.

12

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

12a

279617A1

SUPPORT

- radiator

1шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

14шт.

14

492-11038

LOCK WASHER,3/8"

14шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

14шт.

16

425-106

NUT,3/8"-16, Cl 5

14шт.

17

239377A1

BRACKET

- radiator support, left-hand

1шт.

18

239380A1

BRACKET

- radiator support, right-hand

1шт.

19

277884A1

BAFFLE

- air shield lower

1шт.

20

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

8шт.

21

628-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm, class 10.9

2шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

24

277895A1

BRACKET

- radiator support, lower

1шт.

25

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

4шт.

26

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

2шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

28

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

29

237869A1

BATTERY TRAY

- battery

1шт.

30

241176A1

SEAL - 750 mm (29-1/2 inch) long, cut from 1348430C1 bulk seal, see below

1шт.

NOTE: See page 2-3 for radiator, deaeration tank and mounting.

1шт.

1348430C1

SEAL

- foam, adhesive back, 6.4 (1/4) x 12.7 (1/2) x 15240 mm (600 inch) long

1шт.

NOTE: See page 2-3 for radiator, deaeration tank and mounting.

1шт.

Выбрано товаров: 34
