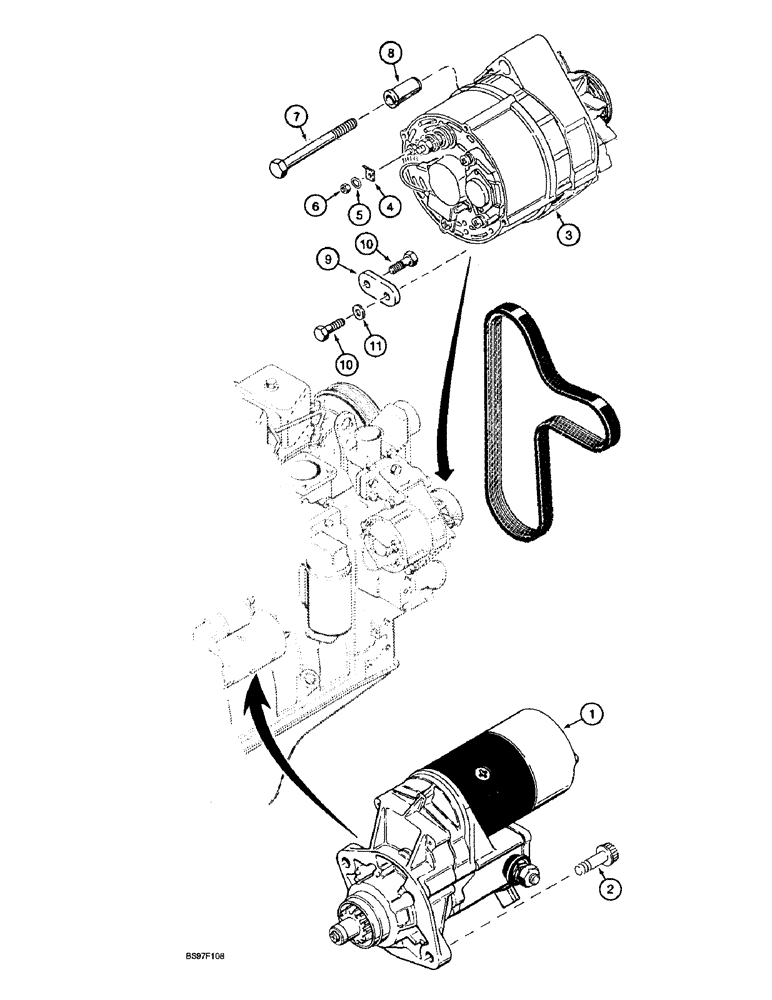

Запчасти Case IH 6591TA (4-06) - STARTER AND ALTERNATOR MOUNTING, STARTER MOUNTING

1

1987559C1

STARTING MOTOR

STARTER ASSEMBLY - engine, new, parts list page 4-11

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, STARTER, 12 volt 2.5KW

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

2

868-10040

12 PT SCREW,M10 x 40mm, Cl 12.9

BOLT - 12 point flange, 10 - 1.5 x 40 mm, class 12.9

3шт.

3

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY - engine, 65 ampere, new, parts list page 4-9

1шт.

3

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

3

AC187873

CORE-ALTERNATOR

Return Part Number

1шт.

3

A187873GV

ALTERNATOR

Value, 65A

1шт.

4

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL - Male

1шт.

5

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

6

825-1405

NUT,M5, Cl 8

NUT, M5, Cl 8

1шт.

7

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 100 mm

1шт.

8

J902469

SPACER

SPACER - alternator mounting

1шт.

9

J903089

SUPPORT

BRACE - alternator mounting

1шт.

10

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm

2шт.

11

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

WASHER - flat, special, 3/8 inch

1шт.
